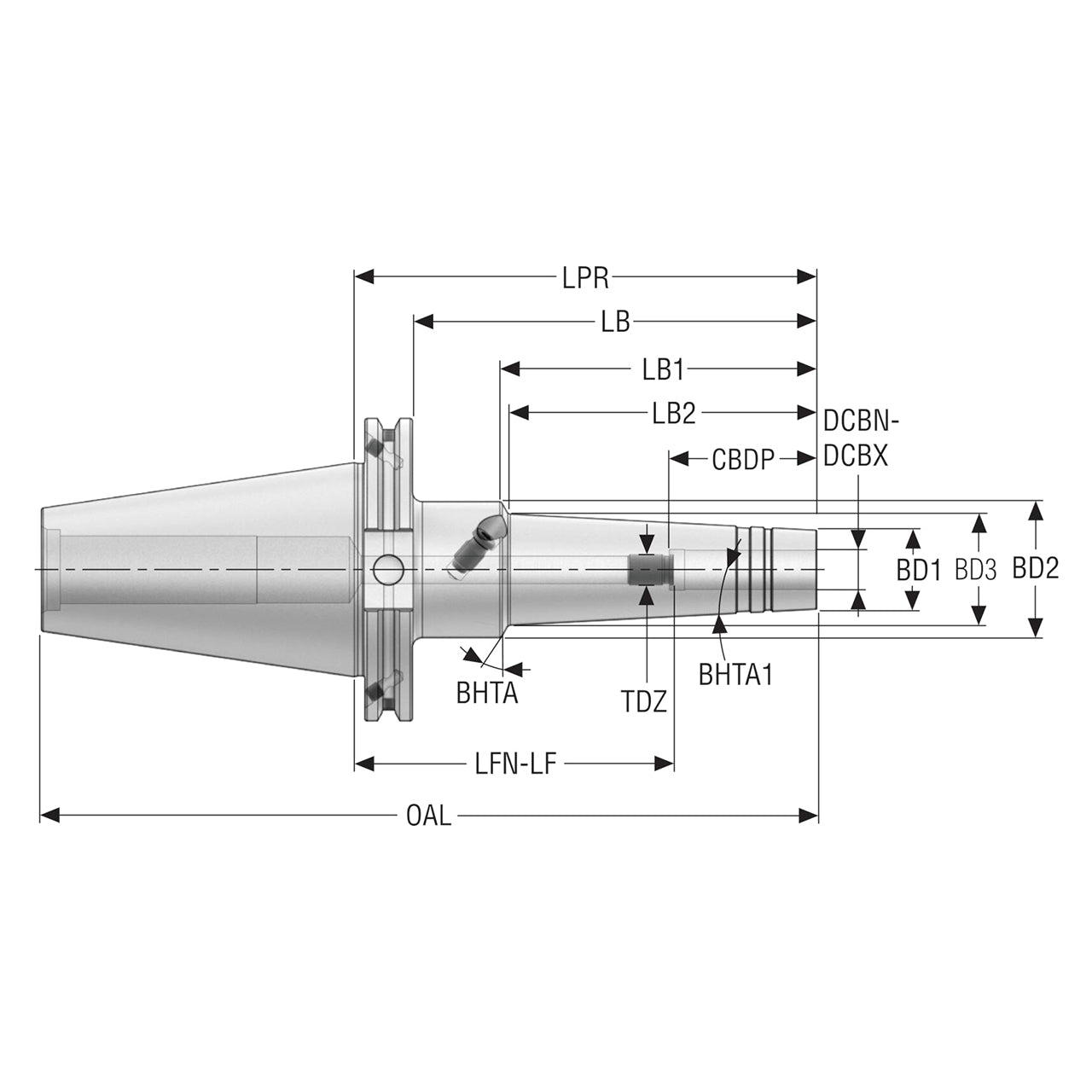

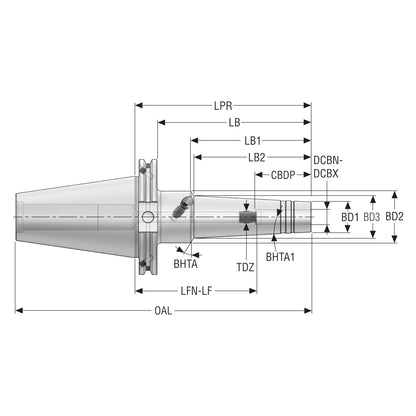

Product Specifications
| Manufacturer Part Number | 10214928 |
| Connection Bore Diameter (mm) | 19.05mm |
| Minimum Connection Bore Diameter (mm) | 19.05mm |
| Maximum Connection Bore Diameter (mm) | 19.05mm |
| Body Diameter 1 (mm) | 34.00mm |
| Body Diameter 2 (mm) | 44.50mm |
| Thread Diameter Size | M16x1.0 |
| Connection Bore Depth (mm) | 53.00mm |
| Body Length (mm) | 130.95mm |
| Body Length 1 (mm) | 100.19mm |
| Functional Length (mm) | 109.00mm |
| Minimum Functional Length (mm) | 99.00mm |
| Protruding Length (mm) | 150.00mm |
| Overall Length (mm) | 251.60mm |
| Data Chip Provision | 1 |
| Machine Side Group | CAT & CAT Taper-Face |

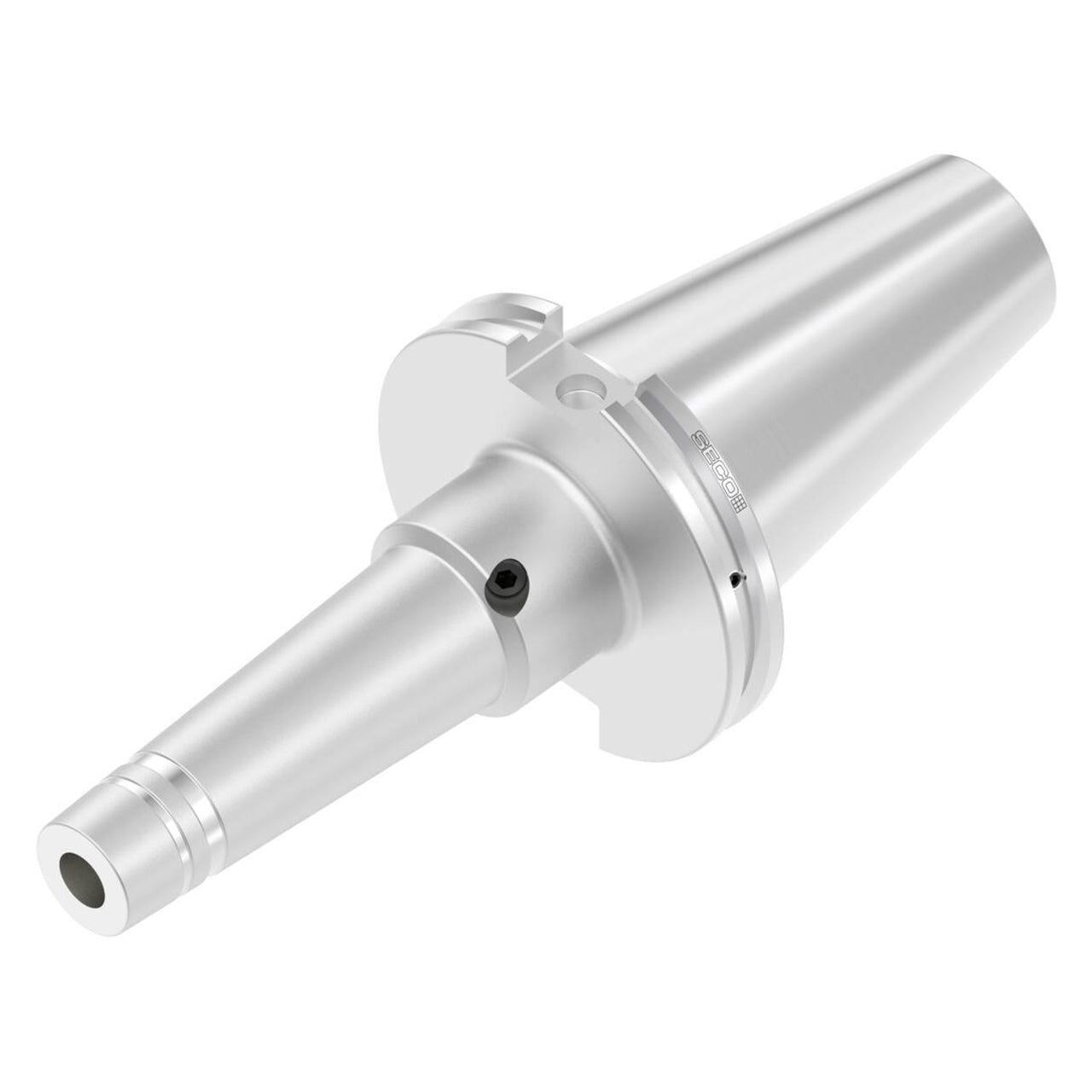

| Product Type | Hydraulic Chuck |
