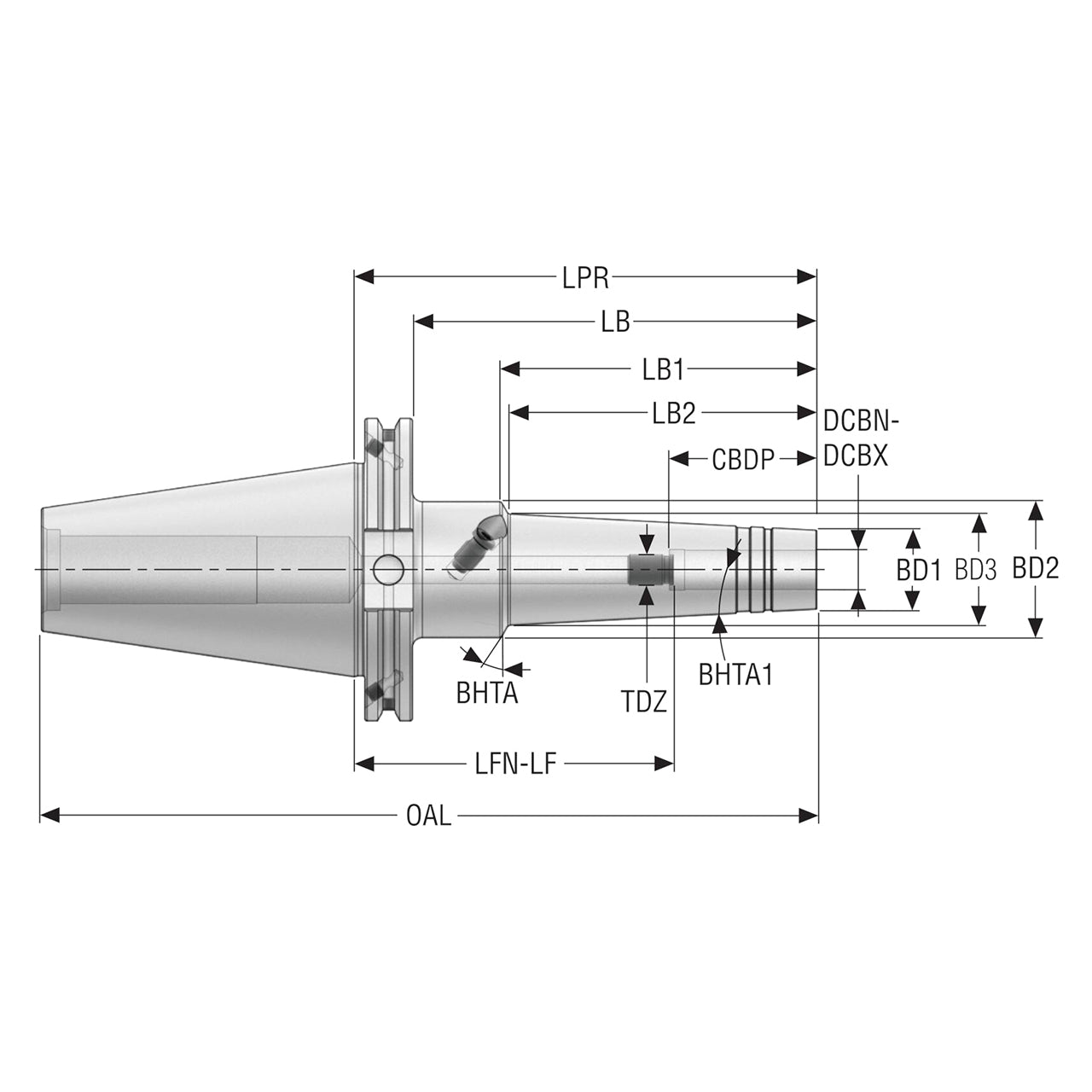

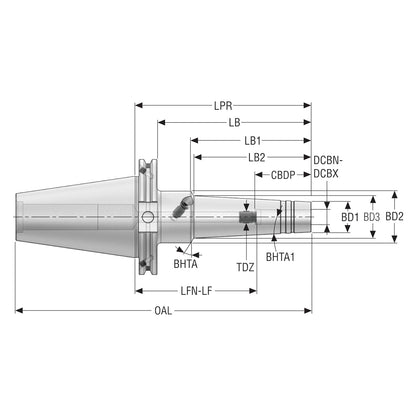

Product Specifications
| Manufacturer Part Number | 10214927 |
| Connection Bore Diameter (mm) | 15.88mm |
| Minimum Connection Bore Diameter (mm) | 15.88mm |
| Maximum Connection Bore Diameter (mm) | 15.88mm |
| Body Diameter 1 (mm) | 32.00mm |
| Body Diameter 2 (mm) | 44.50mm |
| Thread Diameter Size | M12x1.0 |
| Connection Bore Depth (mm) | 51.00mm |
| Body Length (mm) | 130.95mm |
| Body Length 1 (mm) | 100.58mm |
| Body Length 2 (mm) | 100.00mm |
| Functional Length (mm) | 111.00mm |
| Minimum Functional Length (mm) | 101.00mm |
| Protruding Length (mm) | 150.00mm |
| Overall Length (mm) | 251.60mm |
| Body Half Taper Angle Degree) | 30 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | CAT & CAT Taper-Face |

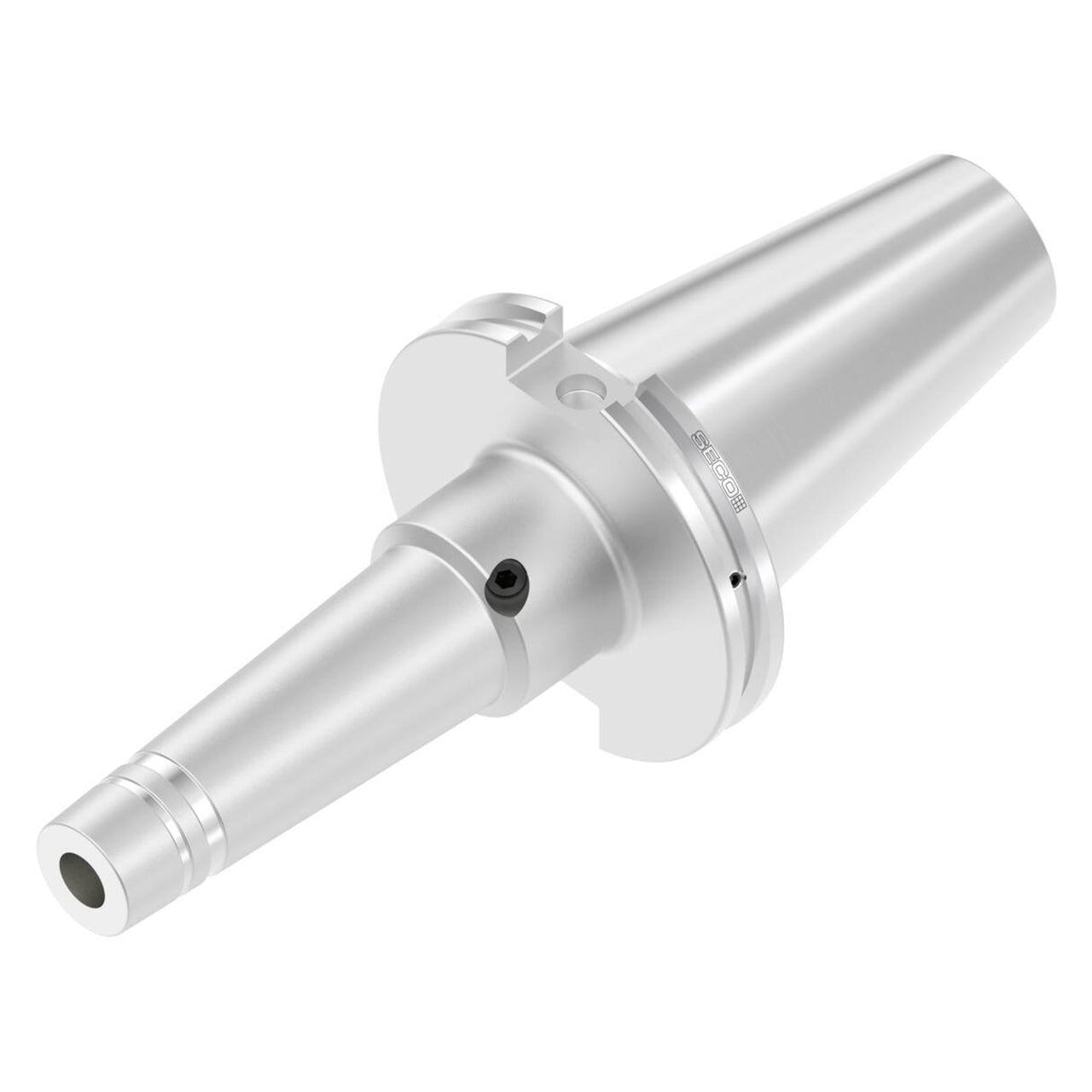

| Product Type | Hydraulic Chuck |
