Product Specifications

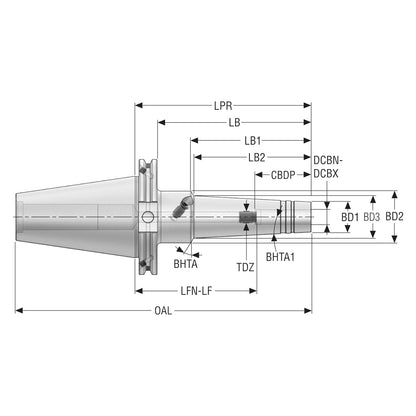

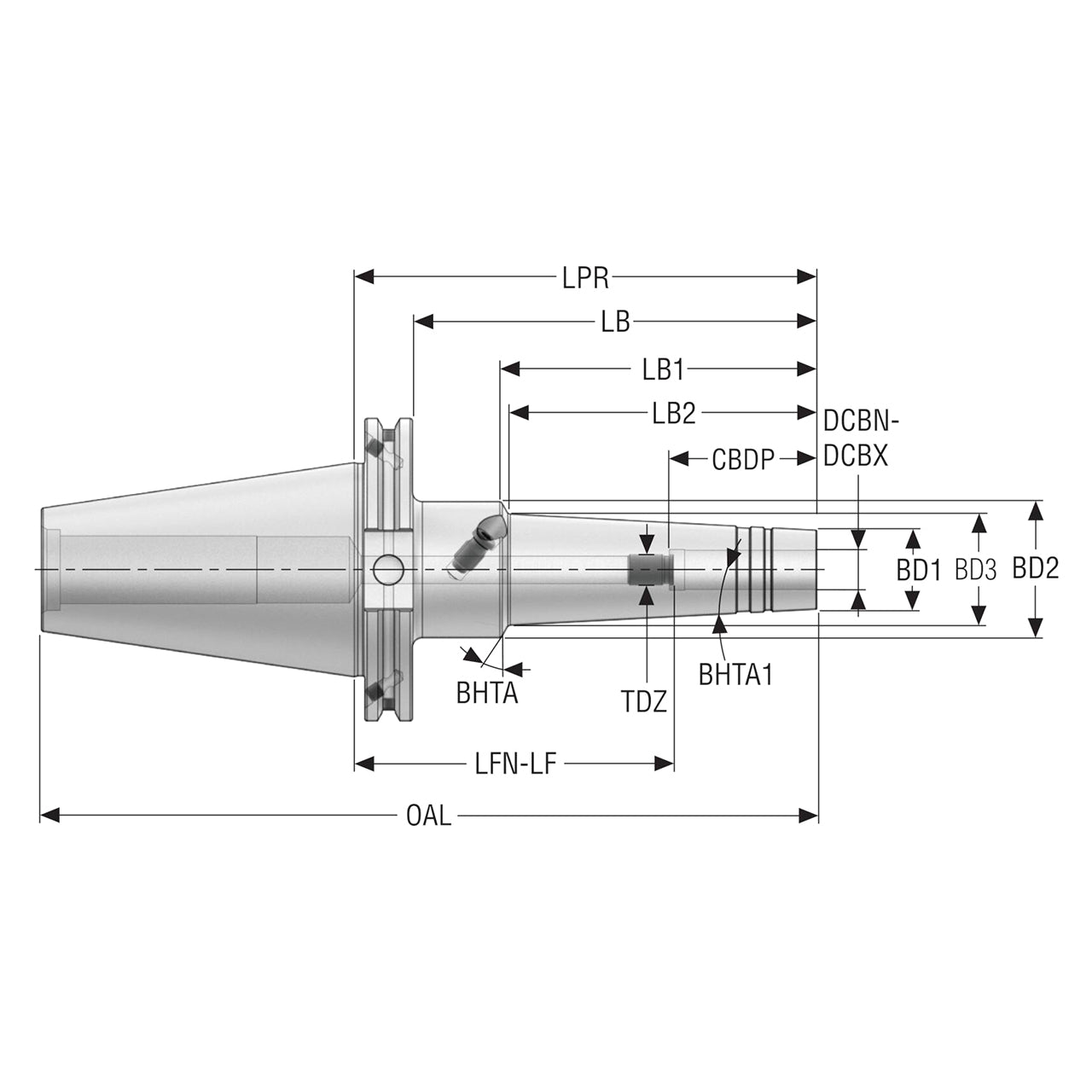

| Manufacturer Part Number | 10214926 |
| Connection Bore Diameter (mm) | 12.70mm |
| Minimum Connection Bore Diameter (mm) | 12.70mm |
| Maximum Connection Bore Diameter (mm) | 12.70mm |
| Body Diameter 1 (mm) | 26.00mm |
| Body Diameter 2 (mm) | 44.50mm |
| Thread Diameter Size | M10x1.0 |
| Connection Bore Depth (mm) | 48.00mm |
| Body Length (mm) | 130.95mm |
| Body Length 1 (mm) | 102.30mm |
| Body Length 2 (mm) | 100.00mm |
| Functional Length (mm) | 113.50mm |
| Minimum Functional Length (mm) | 103.50mm |
| Protruding Length (mm) | 150.00mm |
| Overall Length (mm) | 251.60mm |
| Body Half Taper Angle Degree) | 30 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | CAT & CAT Taper-Face |

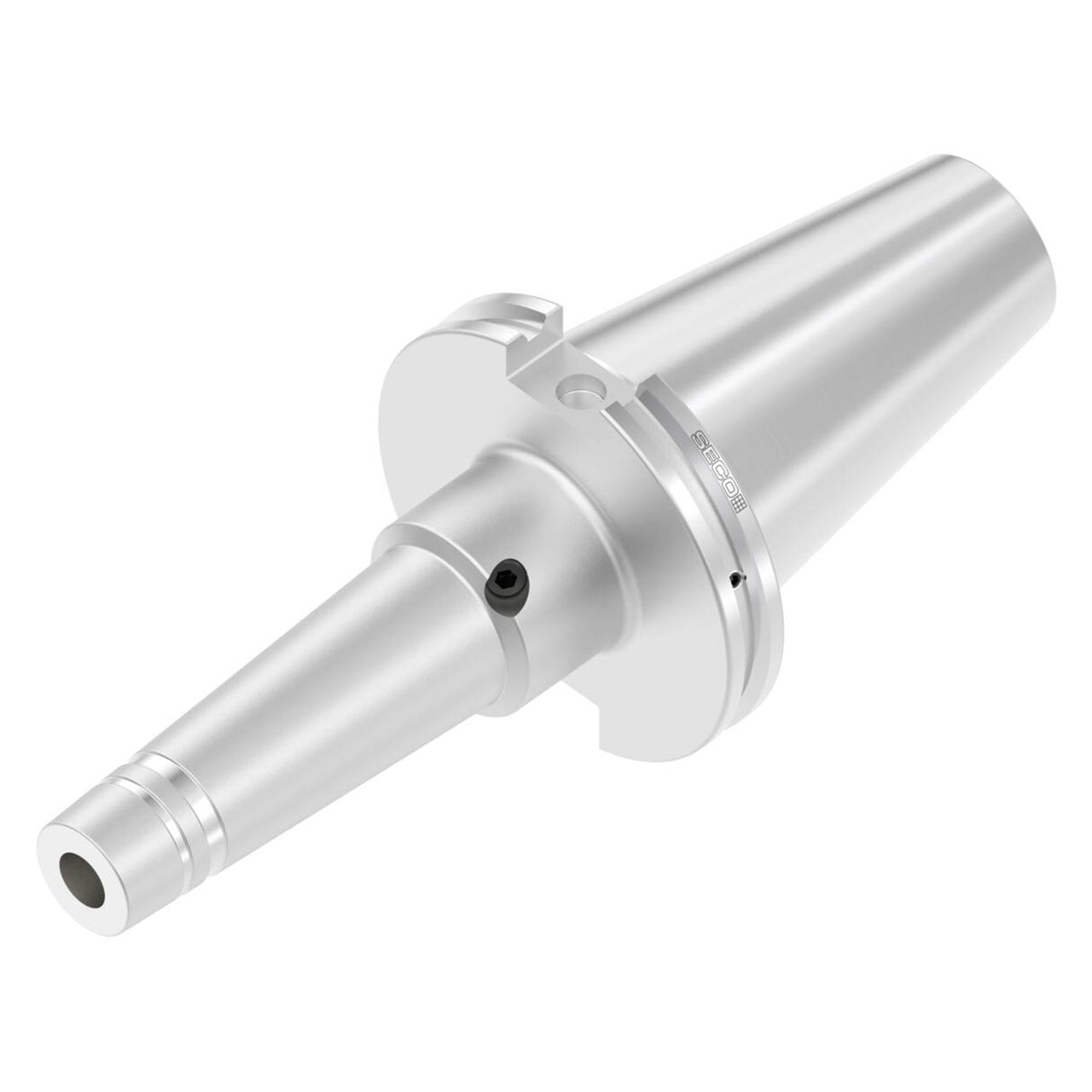

| Product Type | Hydraulic Chuck |
