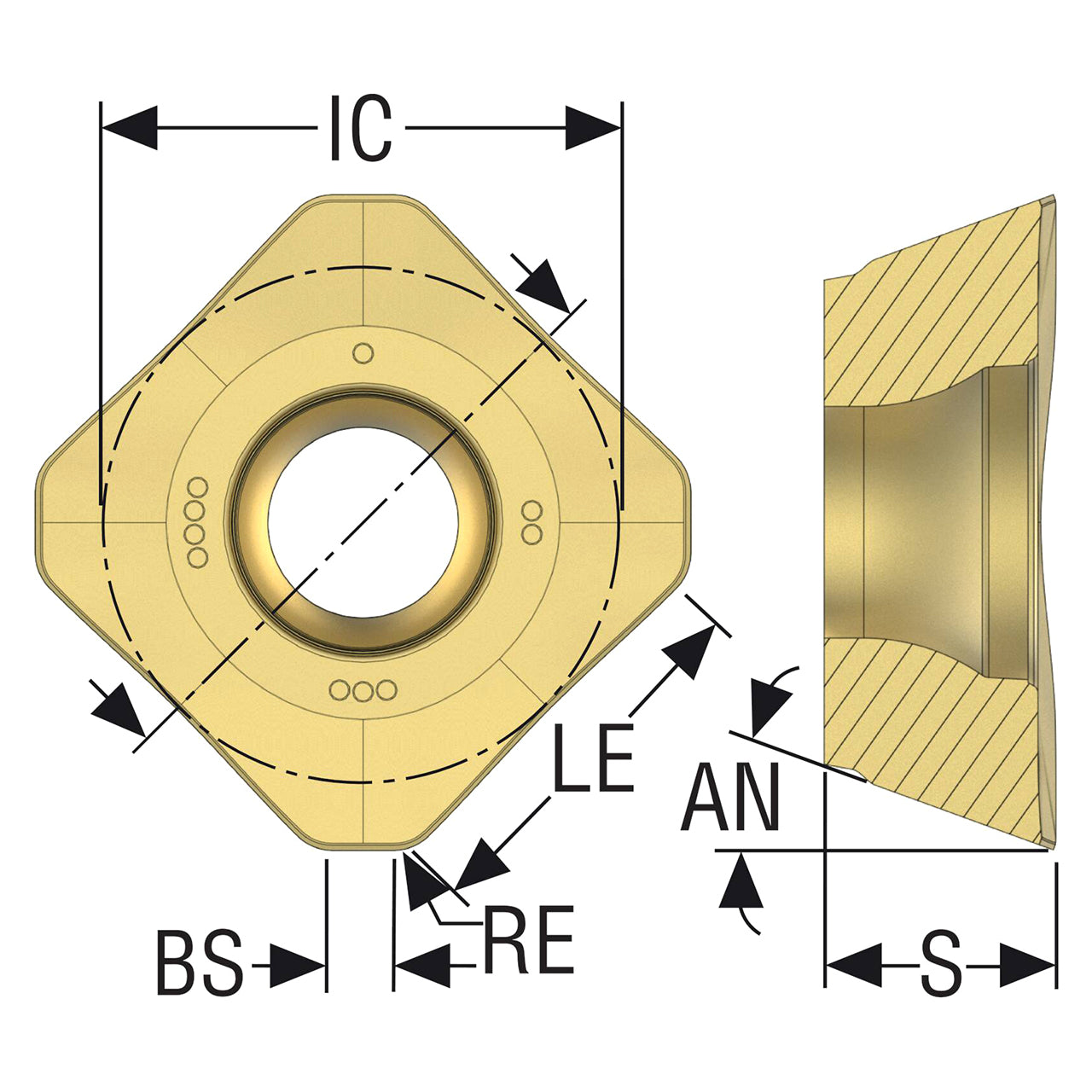

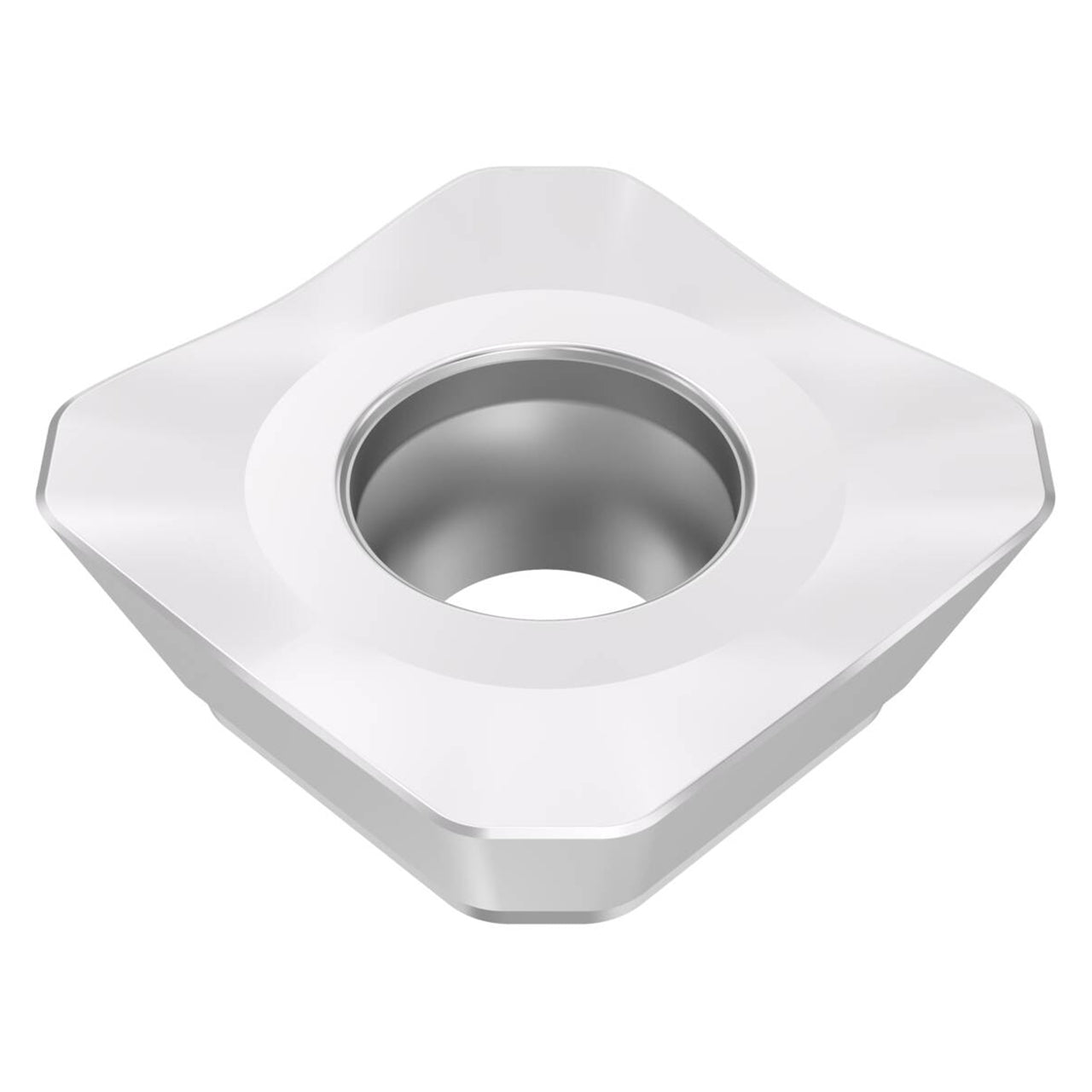

Product Specifications
| Manufacturer Part Number | 10213039 |
| Fixing Hole Diameter (mm) | 5.60mm |
| Inscribed Circle Diameter (mm) | 15.88mm |
| Cutting Edge Effective Length (mm) | 10.30mm |
| Theoretical Cutting Edge Length (mm) | 15.87mm |
| Wiper Edge Length (mm) | 1.80mm |
| Corner Radius (mm) | 1.50mm |
| Insert Thickness (mm) | 5.56mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 20 Degree |
| Insert Rake Angle (Degree) | 5 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M12 |
| Pocket Seat Code of The Cutter | SE.X1505 |
| Insert Size And Shape | SEEX1505 |
| Insert Shape Code | S |
| Material | Carbide |
| Product Type | Milling Insert |
