Product Specifications
| Manufacturer Part Number | 10207996 |

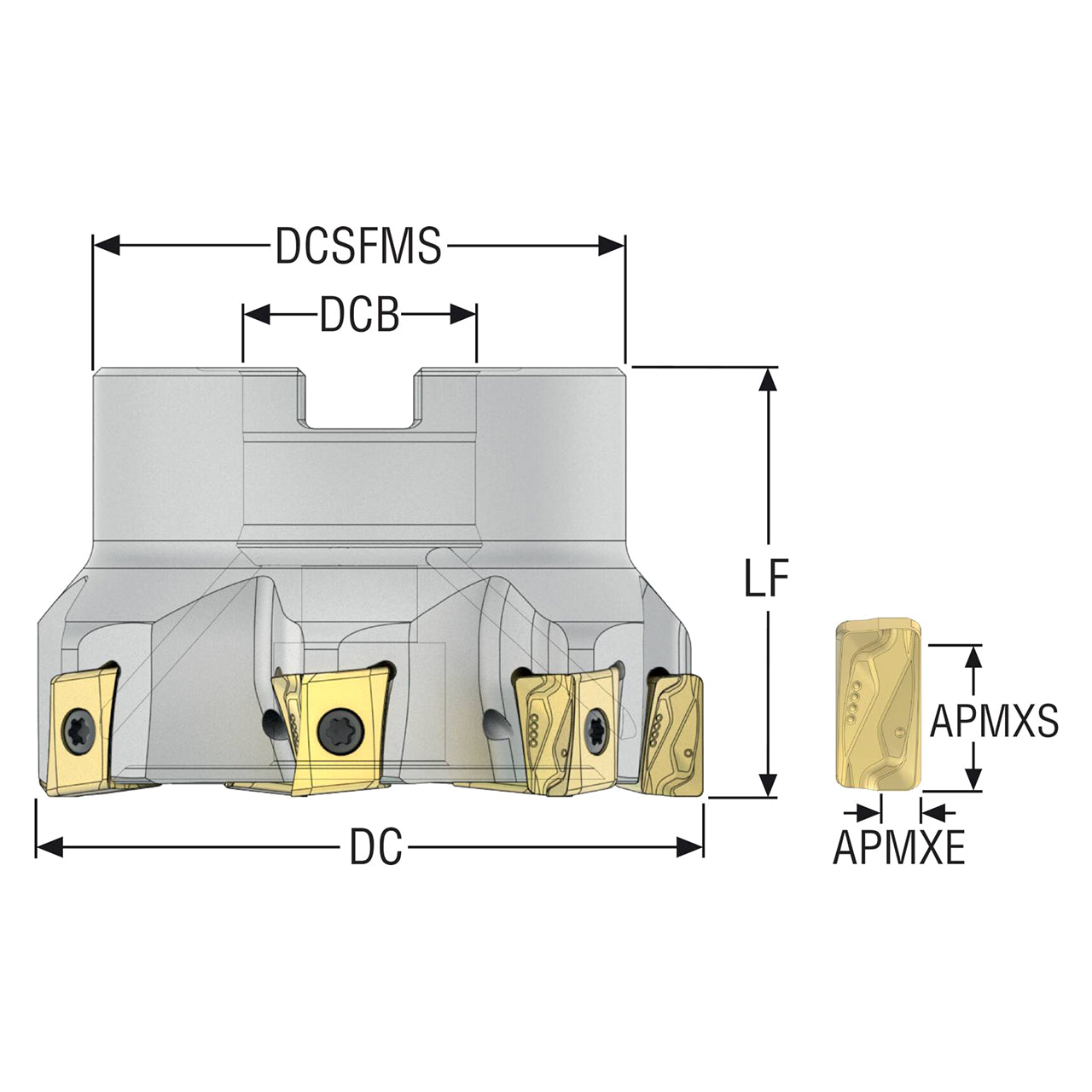

| Cutting Diameter (mm) | 76.20mm |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Functional Length (mm) | 50.00mm |
| Keyway Width (mm) | 9.70mm |
| Maximum Depth of Cut (mm) | 12.00mm |
| Depth of Key Way (mm) | 5.70mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -21.3 Degree |
| Rake Orthogonal Angle (Degree) | -21.3 Degree |
| Maximum Rotational Speed (rpm) | 8000 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LOEX1207 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Arbor |

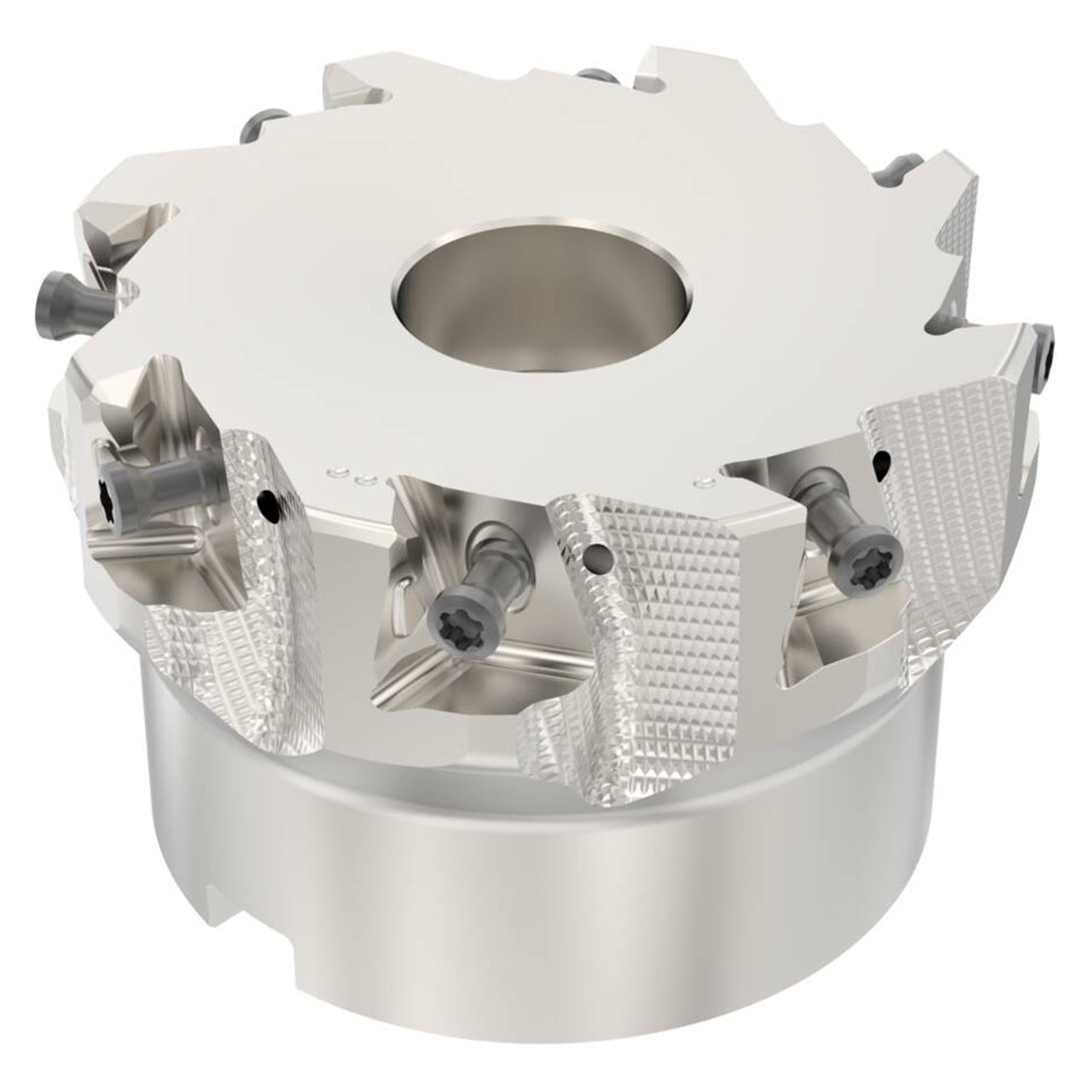

| Product Type | Indexable Square-Shoulder End Mill |
