Product Specifications
| Manufacturer Part Number | 10207973 |

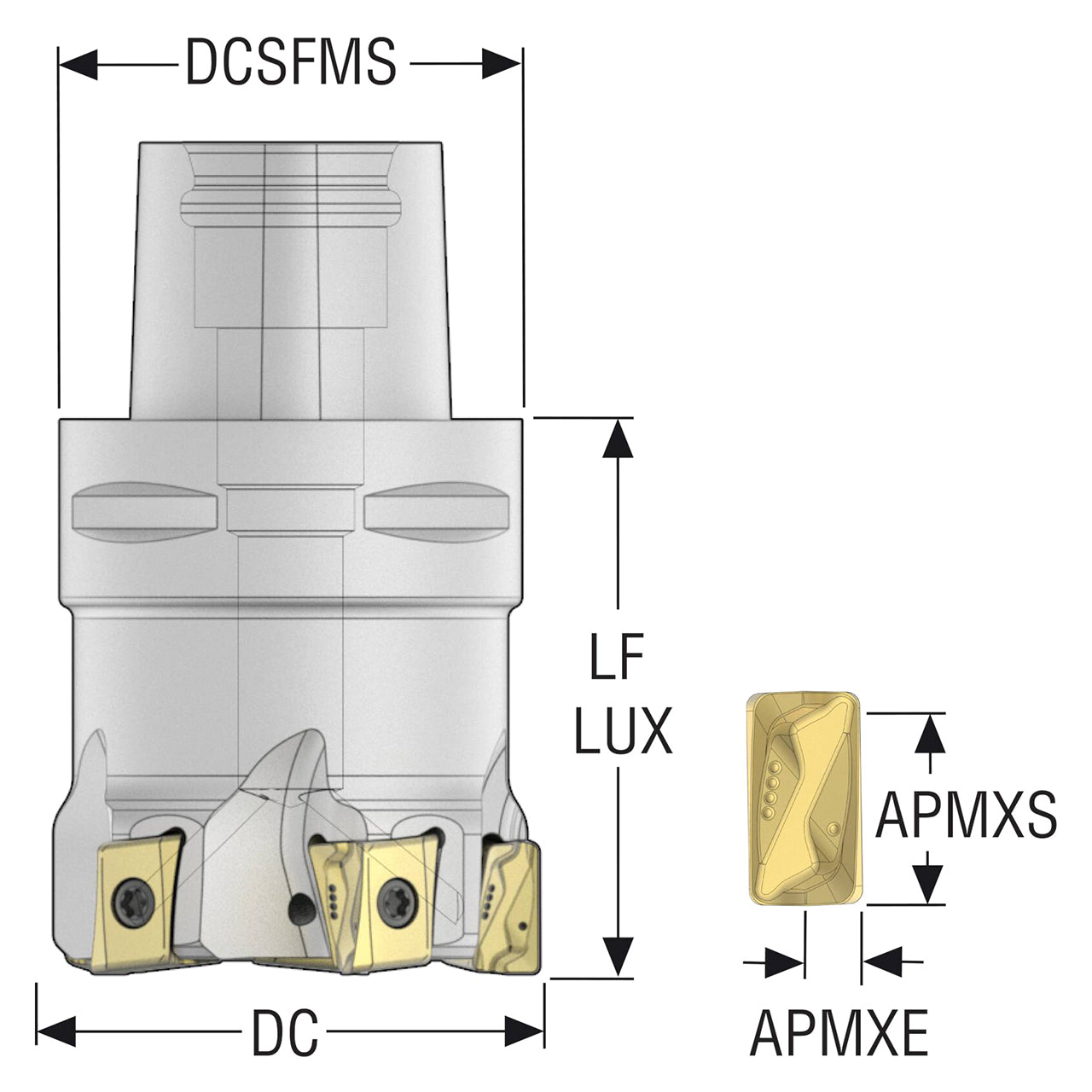

| Cutting Diameter (mm) | 54.00mm |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (mm) | 60.00mm |
| Maximum Depth of Cut (mm) | 12.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -21.7 Degree |
| Rake Orthogonal Angle (Degree) | -21.7 Degree |
| Maximum Rotational Speed (rpm) | 9500 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | LOEX1207 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Seco-Capto |

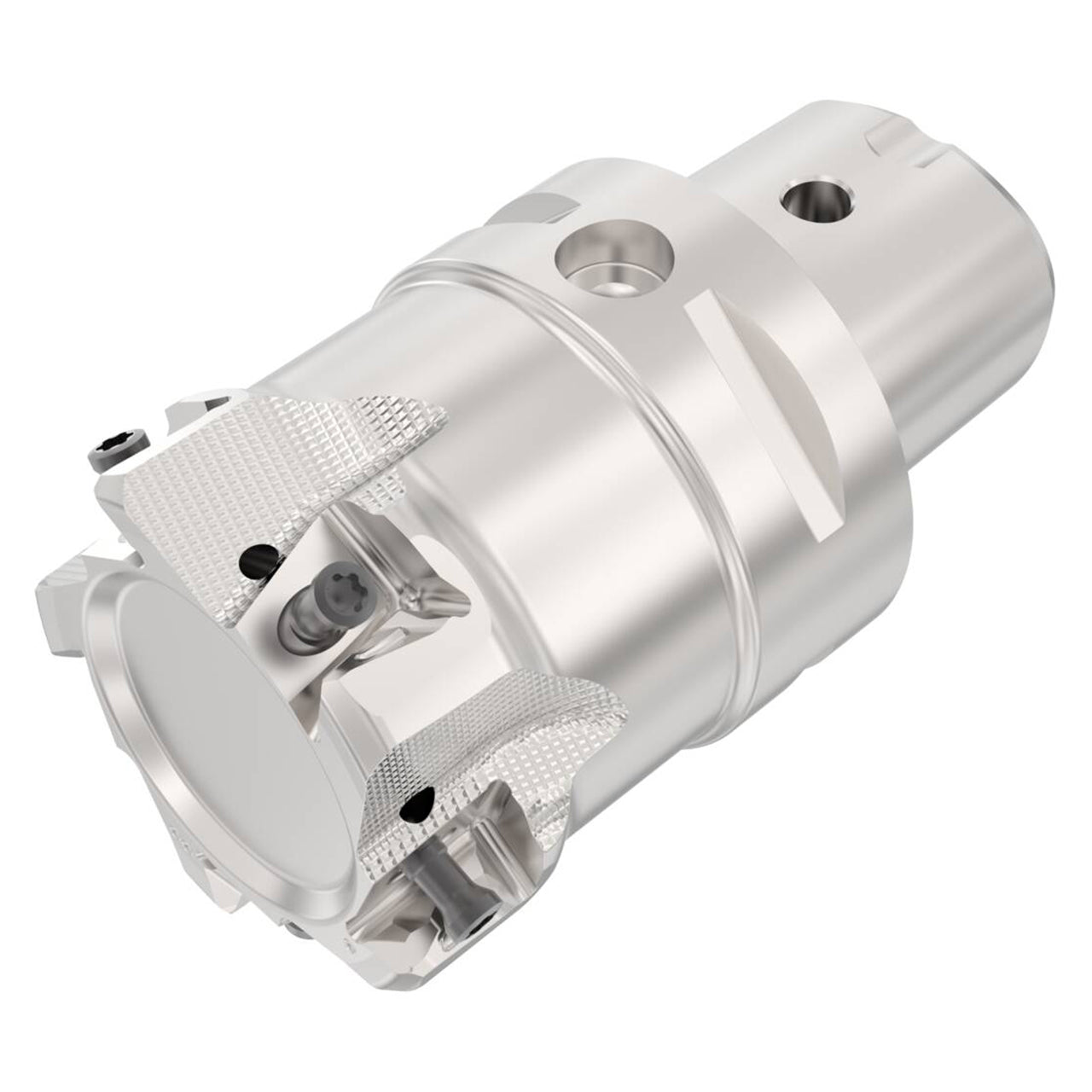

| Product Type | Indexable Square-Shoulder End Mill |
