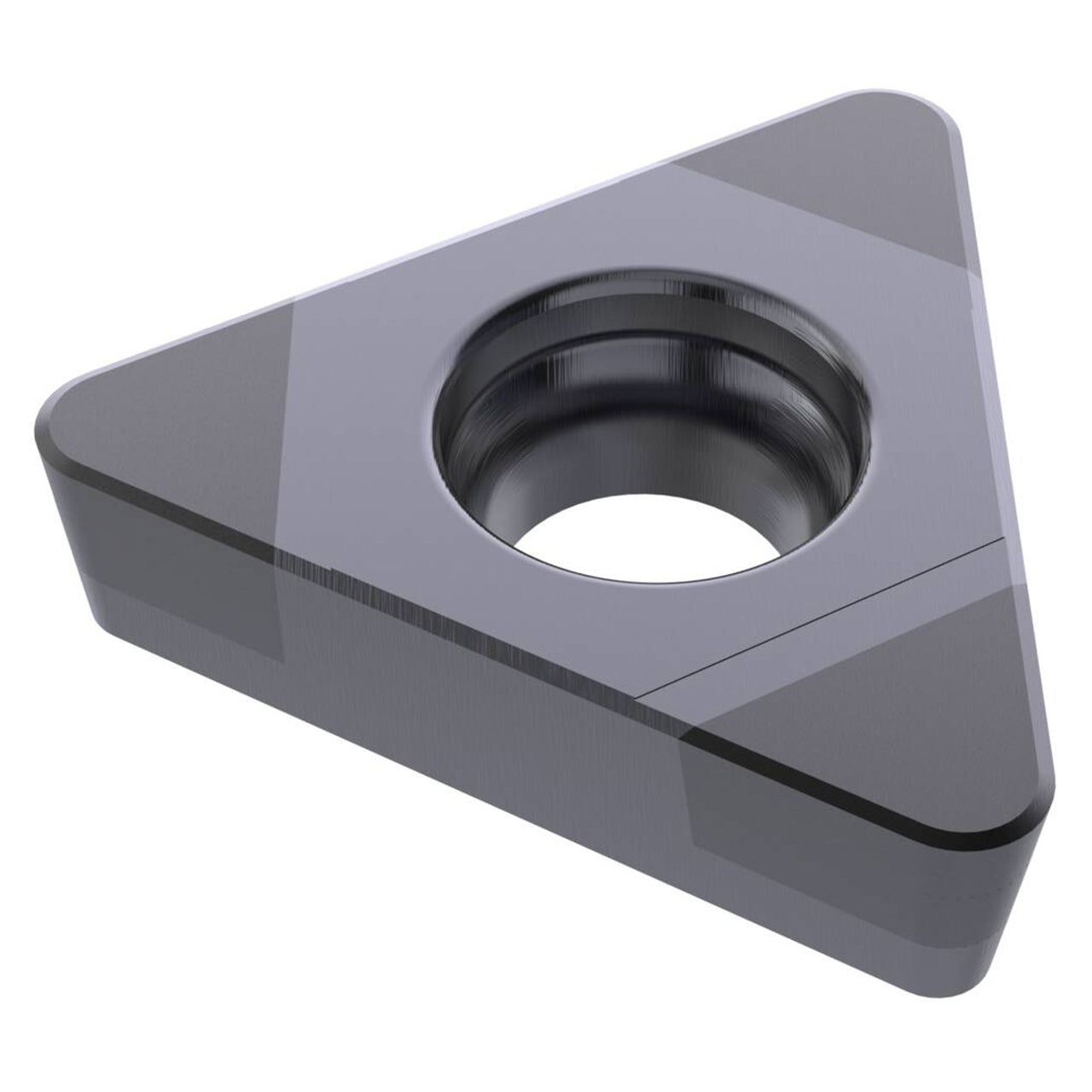

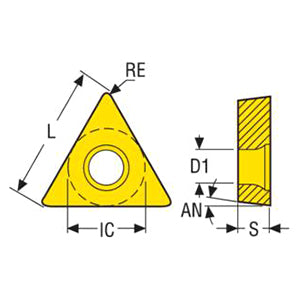

Product Specifications
| Manufacturer Part Number | 10199381 |
| Fixing Hole Diameter (mm) | 2.90mm |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Cutting Edge Effective Length (mm) | 2.90mm |
| Theoretical Cutting Edge Length (mm) | 11.00mm |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (mm) | 2.38mm |
| Cutting Edge Count | 3 |
| Clearance Angle Major (Degree) | 7 Degree |
| Insert Included Angle (Degree) | 60 Degree |
| Cutting Edge Condition Code | S |
| Insert Size And Shape | TC1102 |
| Insert Shape Code | T |
| Material | PCBN |
| Product Type | Turning Insert |
