Product Specifications

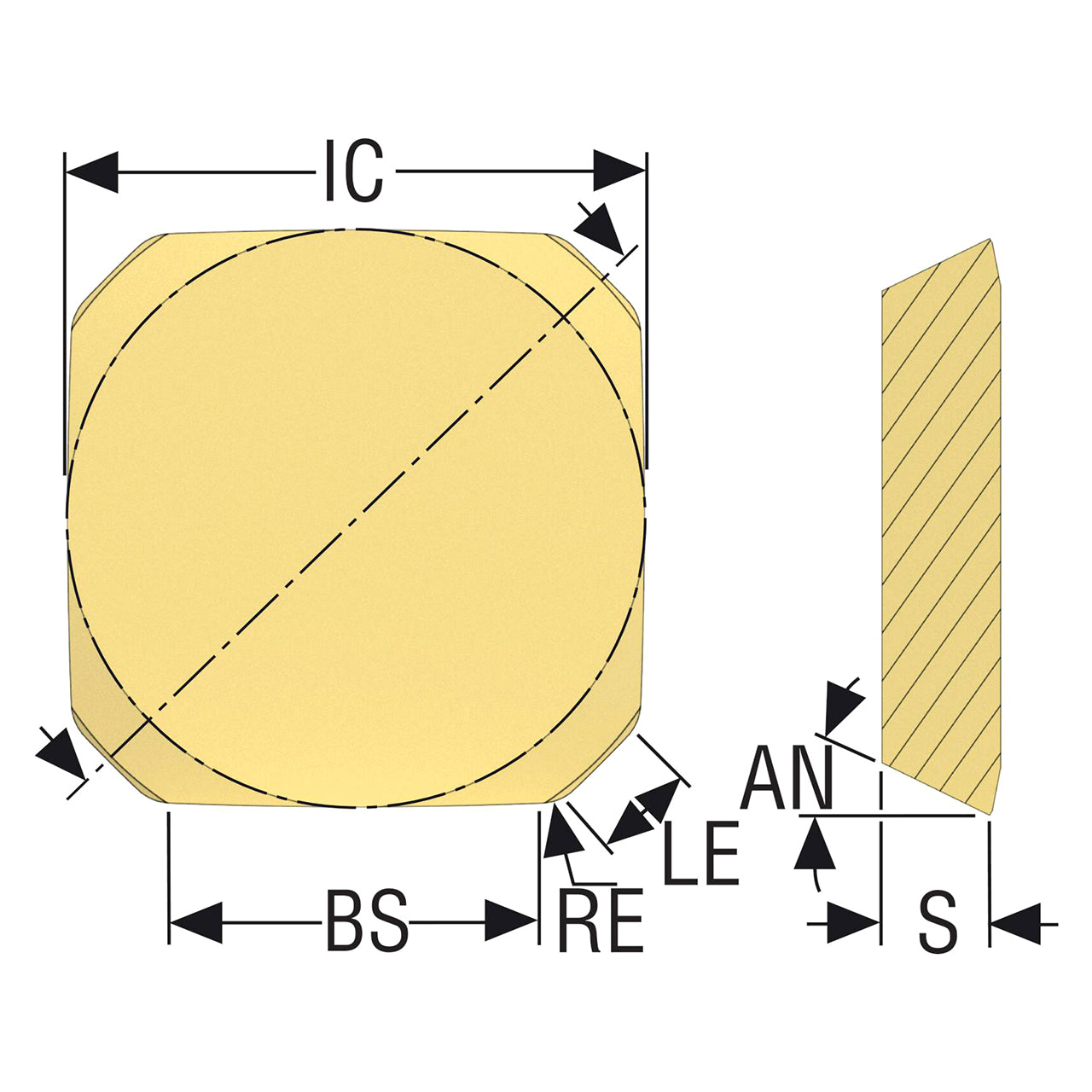

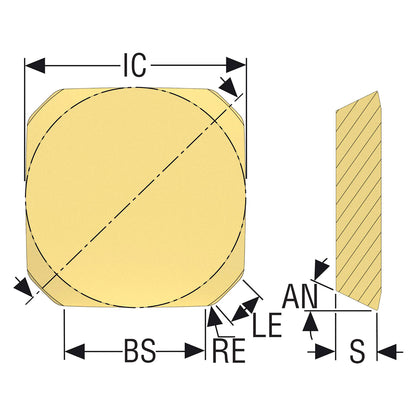

| Manufacturer Part Number | 10198754 |
| Inscribed Circle Diameter (mm) | 12.77mm |
| Cutting Edge Effective Length (mm) | 2.20mm |
| Theoretical Cutting Edge Length (mm) | 12.77mm |
| Wiper Edge Length (mm) | 8.00mm |
| Corner Radius (mm) | 1.00mm |
| Insert Thickness (mm) | 3.18mm |
| Cutting Edge Count | 4 |
| Clearance Angle Major (Degree) | 20 Degree |
| Insert Hand | Neutral |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M13 |
| Pocket Seat Code of The Cutter | SE..1203 |
| Insert Size And Shape | SEEX1203 |
| Insert Shape Code | S |
| Material | Carbide |
| Product Type | Milling Insert |
