Product Specifications
| Manufacturer Part Number | 10198694 |

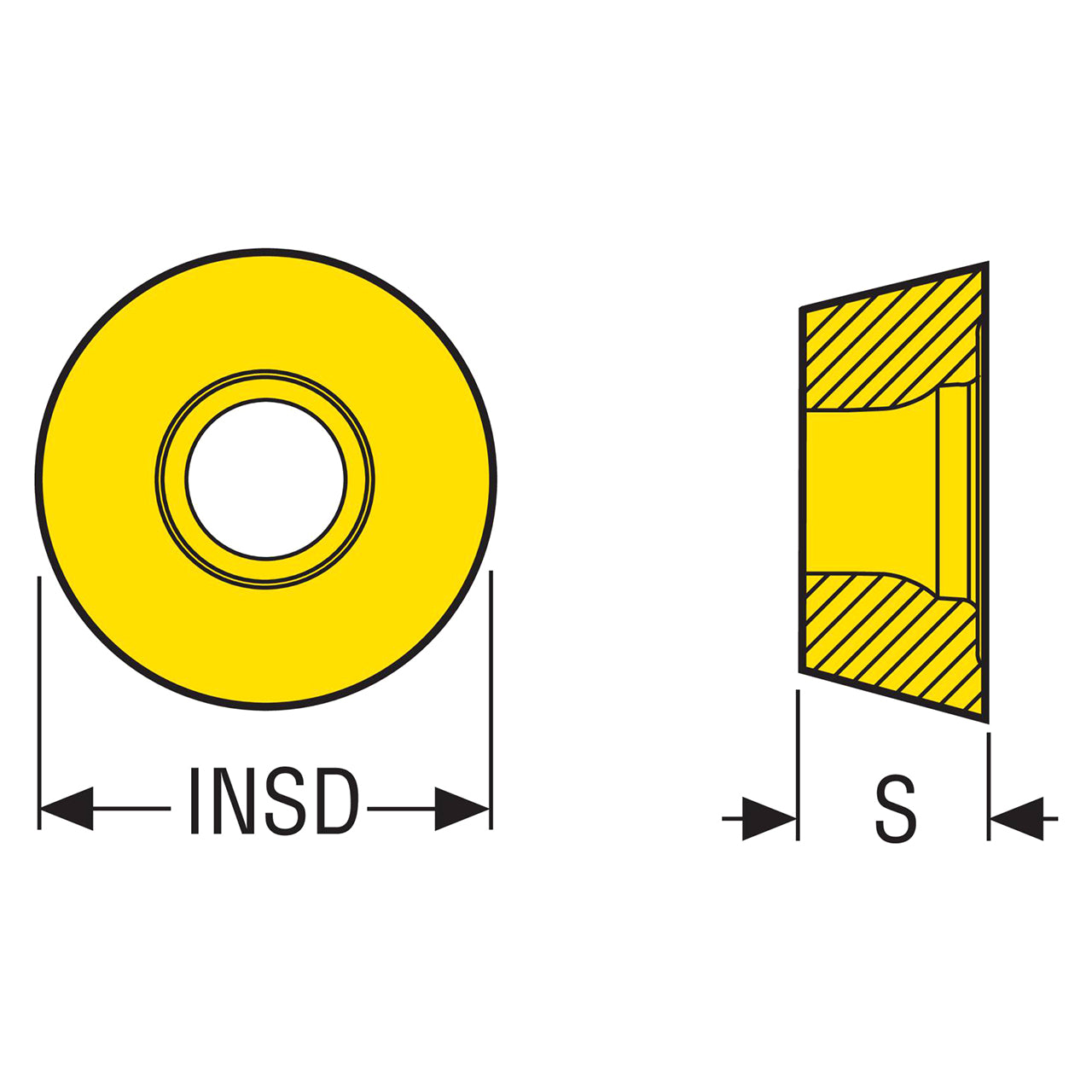

| Inscribed Circle Diameter (mm) | 12.00mm |
| Insert Diameter (mm) | 12.00mm |
| Fixing Hole Diameter (mm) | 4.50mm |
| Corner Radius (mm) | 6.00mm |
| Insert Thickness (mm) | 4.76mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 6 |
| Cutting Geometry Type | M |
| Cutting Geometry Type Technical | M08 |
| Insert Size And Shape | RPHT1204 |
| Insert Rake Angle (Degree) | 16 Degree |
| Material | Carbide |
| Insert Hand | Neutral |
| Insert Shape Code | R |
| Product Type | Milling Insert |
