Product Specifications
| Manufacturer Part Number | 10194458 |
| Cutting Diameter (mm) | 2.00mm |
| Cutting Diameter 1 (mm) | 2.00mm |
| Shank Diameter (mm) | 6.00mm |
| Neck Diameter (mm) | 2.05mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 3.58mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 2.60mm |
| Overall Length (mm) | 40.00mm |
| Neck Length (mm) | 5.00mm |
| Neck Length 1 (mm) | 5.00mm |
| Cutting Edge Effective Length (mm) | 3.00mm |
| Maximum Depth of Cut (mm) | 3.00mm |
| Corner Radius (mm) | 0.20mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | JS553 |
| Cutting Geometry Type Technical | JS553 |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 48 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 8 Degree |
| Axial Rake Angle (Degree) | 48 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Material | Carbide |
| Coating | SIRON-A |

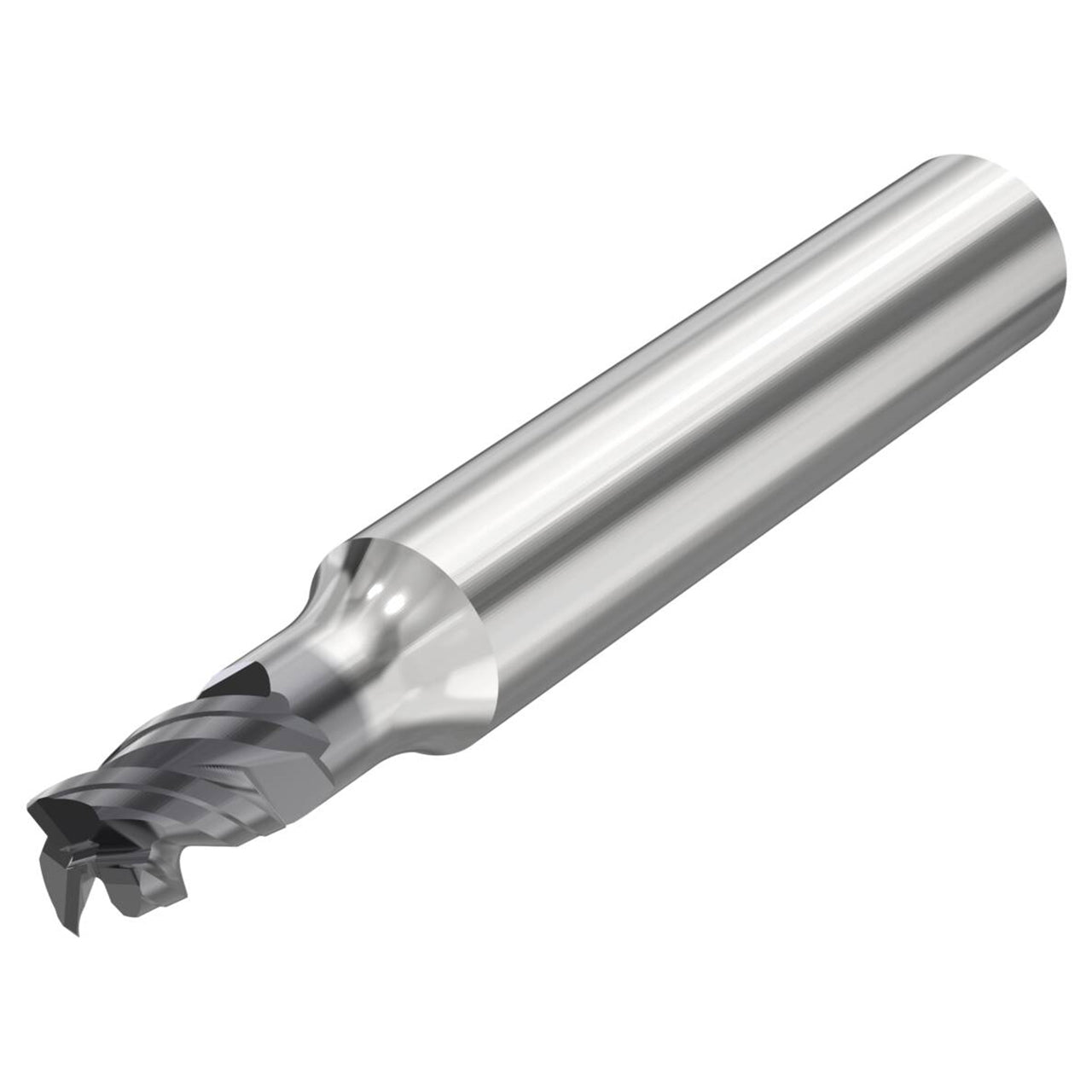

| Product Type | Corner Radius End Mill |
