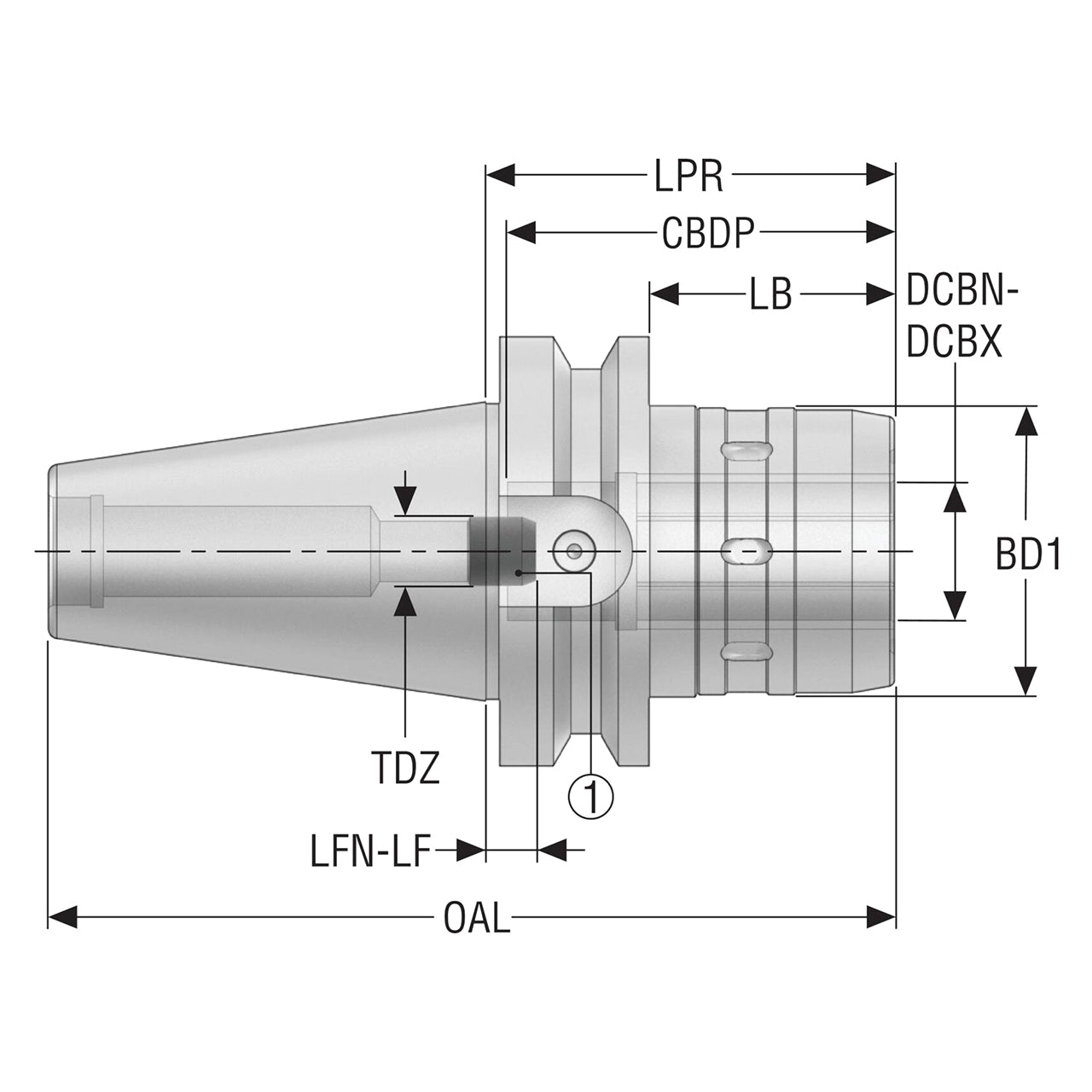

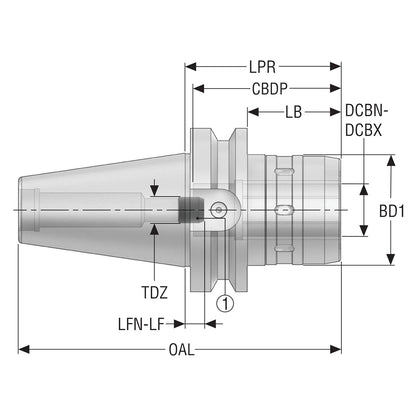

Product Specifications
| Manufacturer Part Number | 10185659 |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (mm) | 6.00mm |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Diameter 1 (mm) | 49.00mm |
| Thread Diameter Size | M16 |
| Connection Bore Depth (mm) | 63.00mm |
| Keyway Width (mm) | 8.00mm |
| Body Length (mm) | 47.00mm |
| Functional Length (mm) | 27.00mm |
| Minimum Functional Length (mm) | 22.00mm |
| Protruding Length (mm) | 85.00mm |
| Overall Length (mm) | 186.80mm |
| Data Chip Provision | 1 |
| Machine Side Group | BT & BT Taper-face |
| Maximum Rotational Speed (rpm) | 15000 rpm |

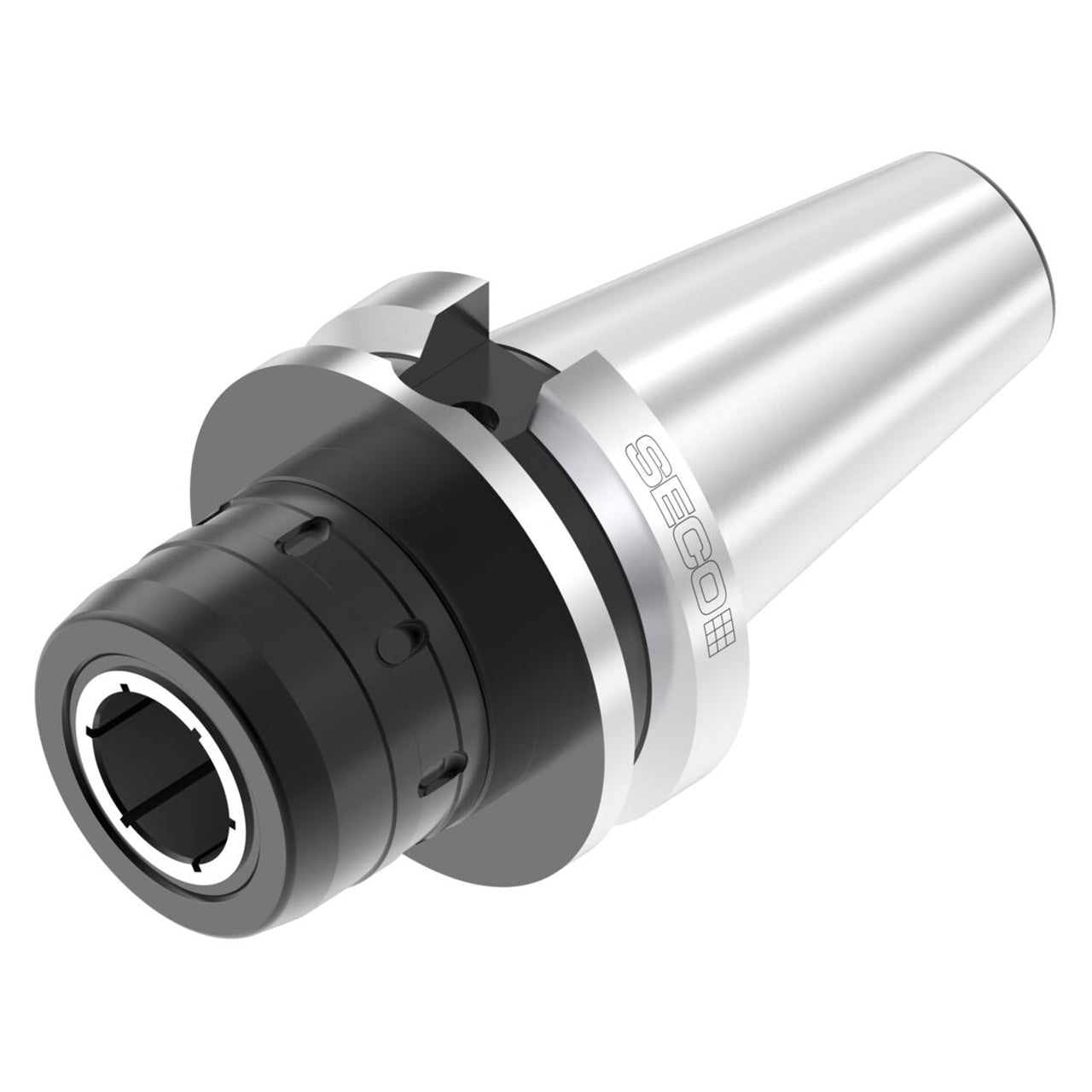

| Product Type | Milling Chuck |
