Product Specifications
| Manufacturer Part Number | 10185657 |

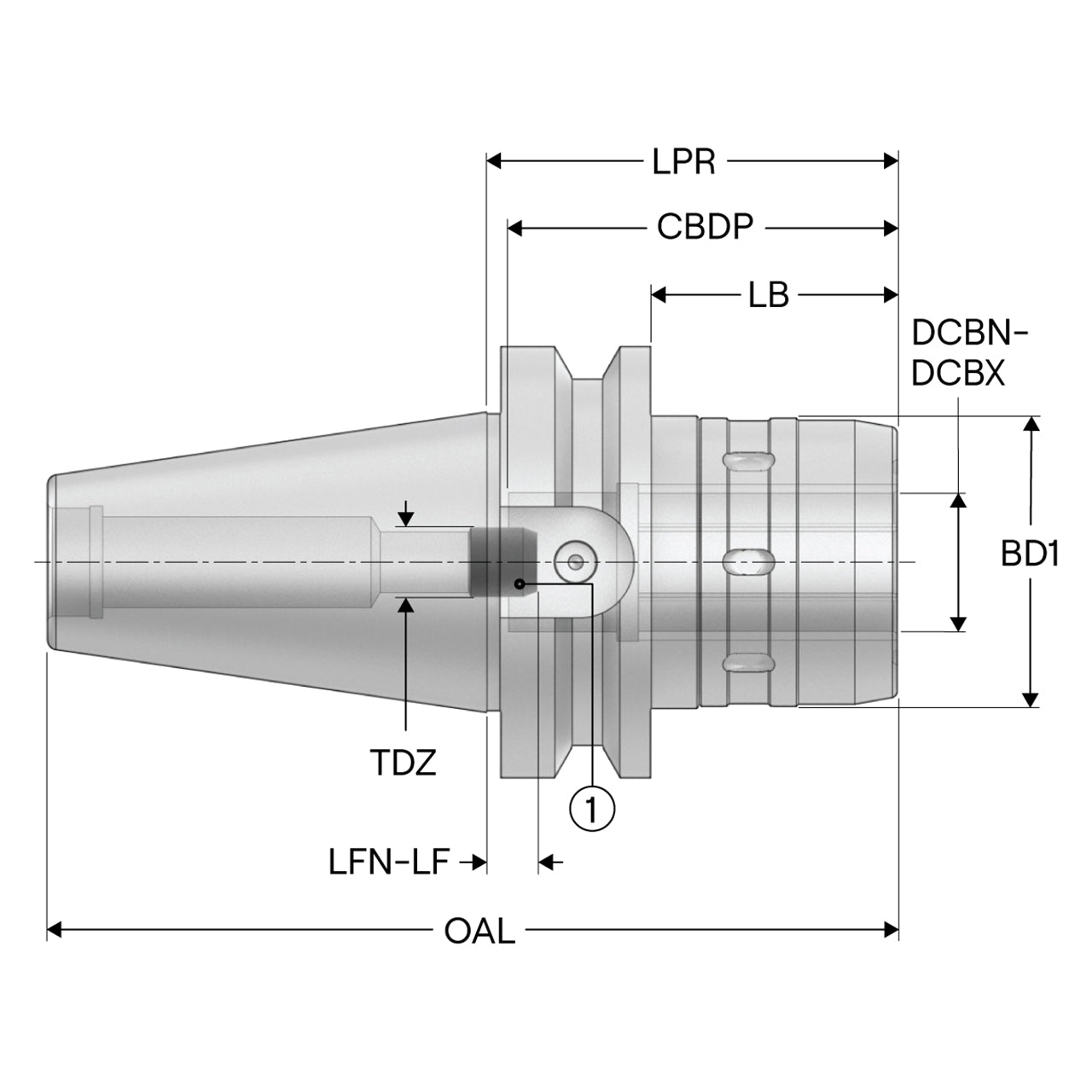

| Body Diameter 1 (Decimal Inch) | 1.929" |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter Minimum (Decimal Inch) | 0.236" |
| Connection Bore Diameter Maximum (Decimal Inch) | 0.787" |
| Functional Length (Decimal Inch) | 0.276" |
| Protruding Length (Decimal Inch) | 2.559" |
| Overall Length (Decimal Inch) | 5.134" |
| Product Series | PMC |

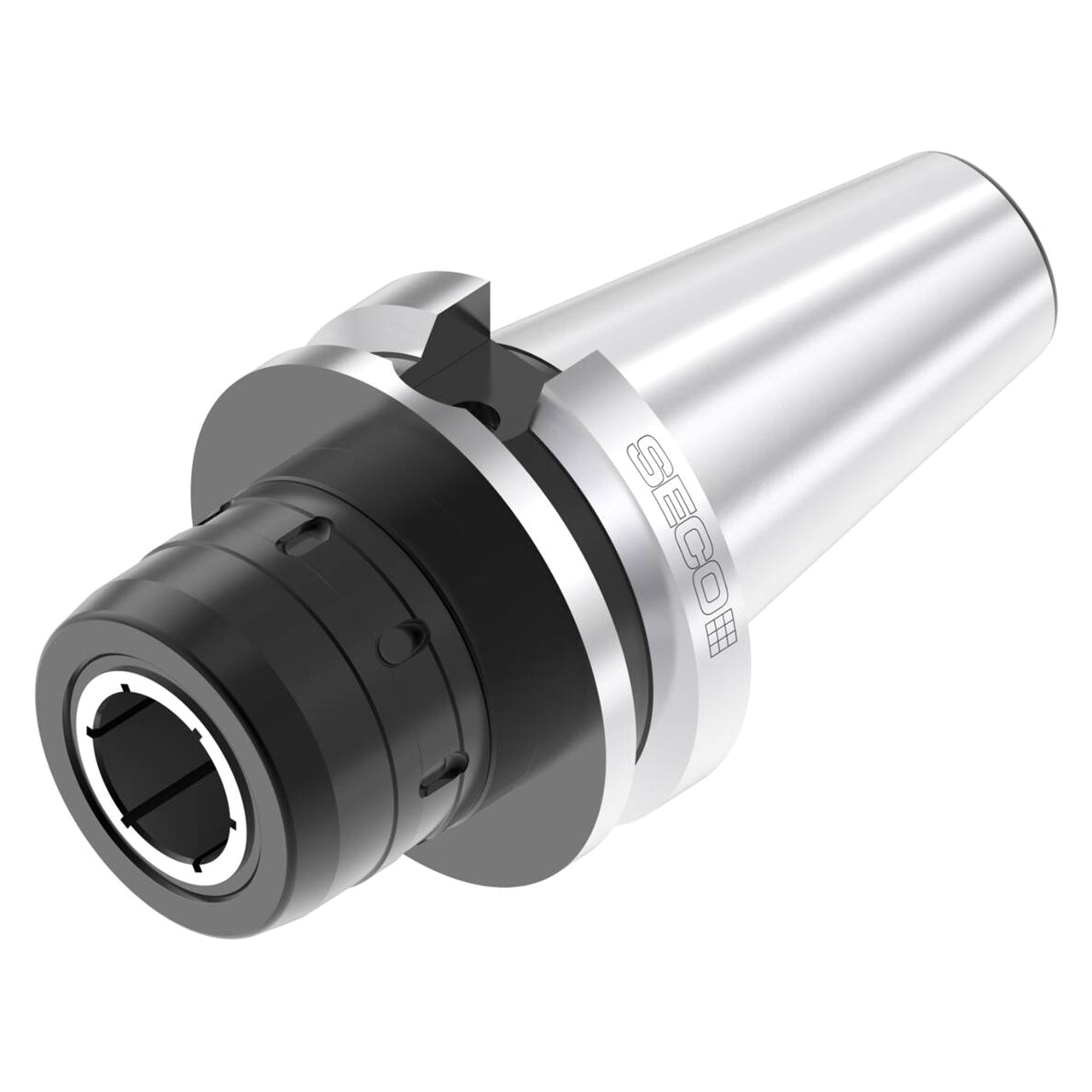

| Product Type | Milling Chuck |
