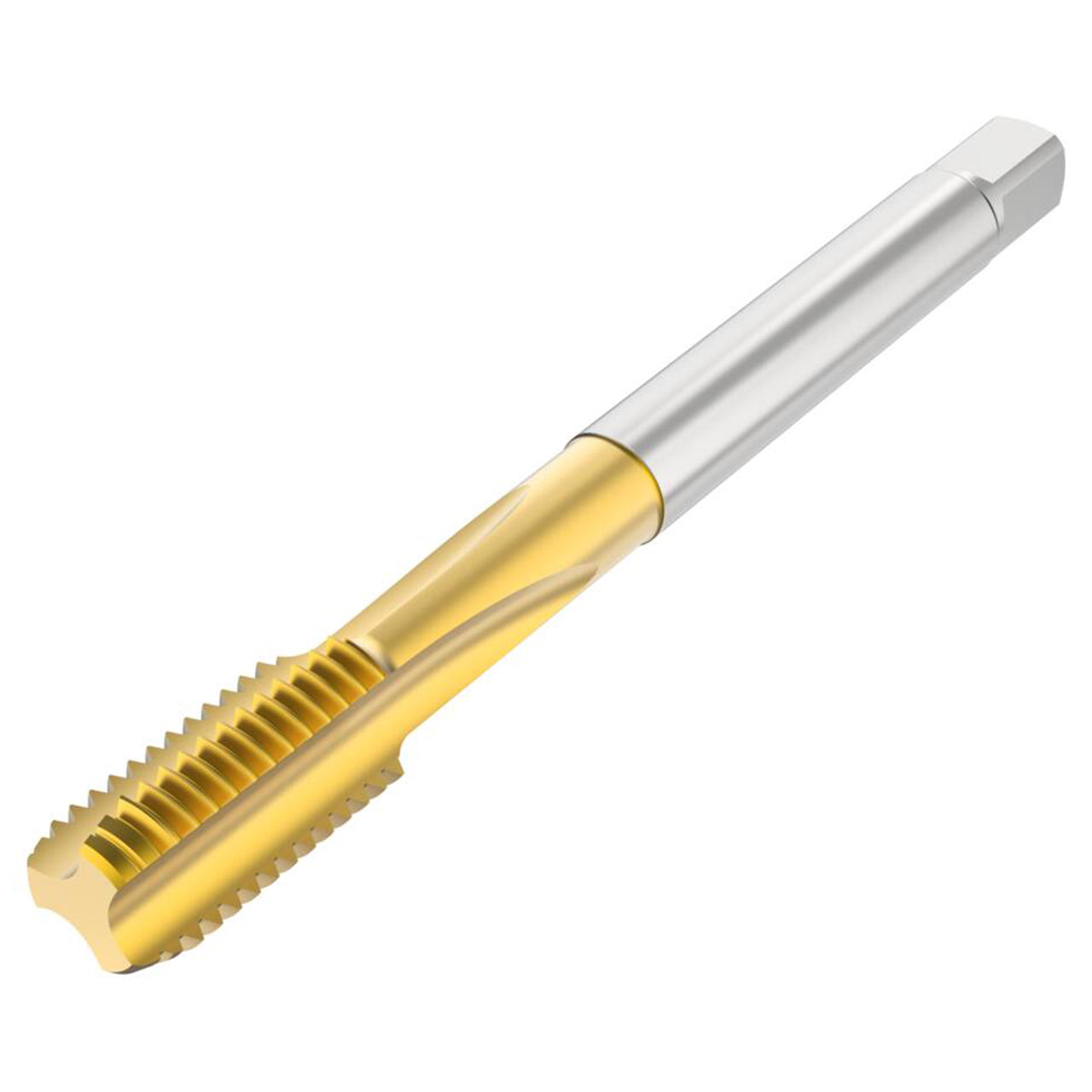

Product Specifications
| Manufacturer Part Number | 10139754 |
| Thread Diameter (Decimal Inch) | 0.945" |
| Thread Diameter (mm) | 24.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.291" |
| Threading Chamfer Length (mm) | 7.40mm |
| Tap Chamfer Length (Decimal Inch) | 0.291" |
| Tap Chamfer Length (mm) | 7.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.709" |
| Connection Diameter Machine Side (mm) | 18.00mm |
| Shank Diameter (Decimal Inch) | 0.709" |
| Shank Diameter (mm) | 18.00mm |
| Functional Length (Decimal Inch) | 6.008" |
| Functional Length (mm) | 152.60mm |
| Usable Length (Decimal Inch) | 4.449" |
| Usable Length (mm) | 113.00mm |
| Overall Length (Decimal Inch) | 6.299" |
| Overall Length (mm) | 160.00mm |
| Thread Length (Decimal Inch) | 1.496" |
| Thread Length (mm) | 38.00mm |
| Thread Diameter Size | M24 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.827" |
| Recommended Premachined Hole Diameter (mm) | 21.00mm |
| Connection Size Code | 18.00X14.50 |
| Connection Size Code Machine Side | 18.00X14.50 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.837" |
| Maximum Premachined Hole Diameter (mm) | 21.25mm |
| Minimum Thread Pitch (Decimal Inch) | 0.118" |
| Minimum Thread Pitch (mm) | 3.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.118" |
| Maximum Thread Pitch (mm) | 3.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Left Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Straight Flute Tap |
