Product Specifications

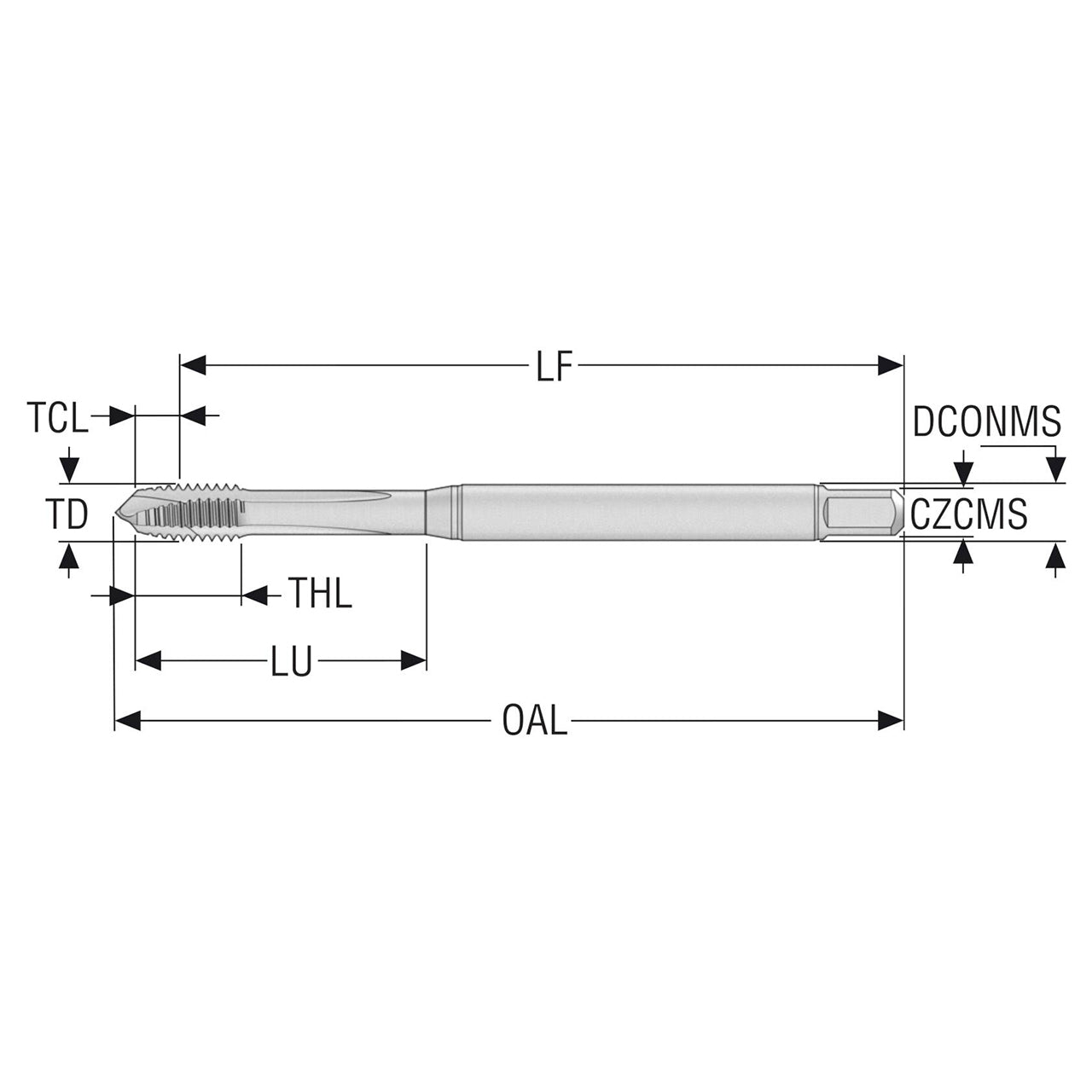

| Manufacturer Part Number | 10139749 |
| Thread Diameter (Decimal Inch) | 1.189" |
| Thread Diameter (mm) | 30.20mm |
| Threading Chamfer Length (Decimal Inch) | 0.202" |
| Threading Chamfer Length (mm) | 5.13mm |
| Tap Chamfer Length (Decimal Inch) | 0.202" |
| Tap Chamfer Length (mm) | 5.13mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.866" |
| Connection Diameter Machine Side (mm) | 22.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Functional Length (Decimal Inch) | 5.704" |
| Functional Length (mm) | 144.87mm |
| Usable Length (Decimal Inch) | 3.347" |
| Usable Length (mm) | 85.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Thread Length (Decimal Inch) | 1.181" |
| Thread Length (mm) | 30.00mm |
| Thread Diameter Size | G7/8-14 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.112" |
| Recommended Premachined Hole Diameter (mm) | 28.25mm |
| Connection Size Code | 22.00X18.00 |
| Connection Size Code Machine Side | 22.00X18.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.119" |
| Maximum Premachined Hole Diameter (mm) | 28.42mm |
| Minimum Threads Per Inch (mm) | 14.00mm |
| Maximum Threads Per Inch (mm) | 14.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Threading Chamfer Type | C |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E |
| Coating | TiAIN+TiN |

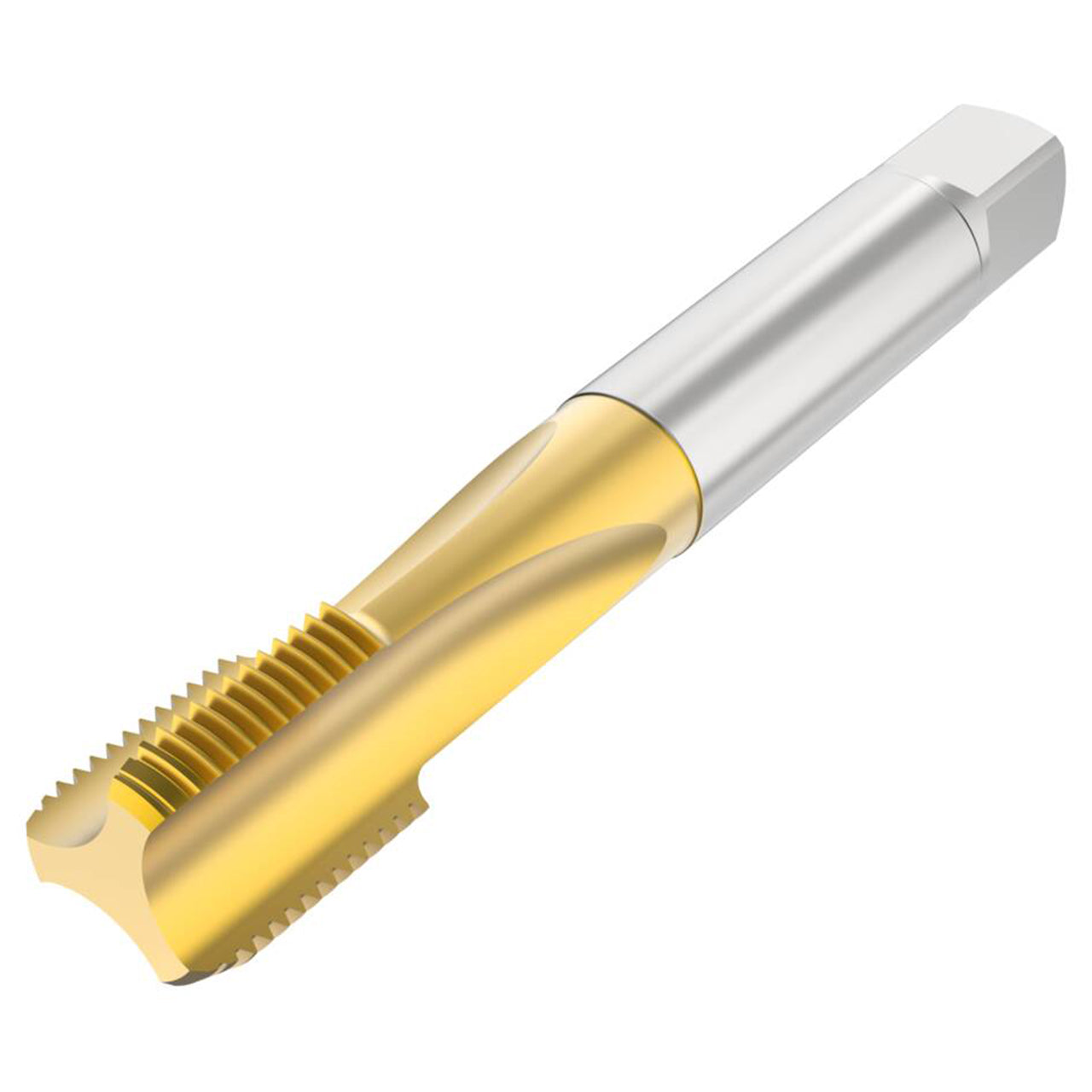

| Product Type | British Standard Pipe Tap |
