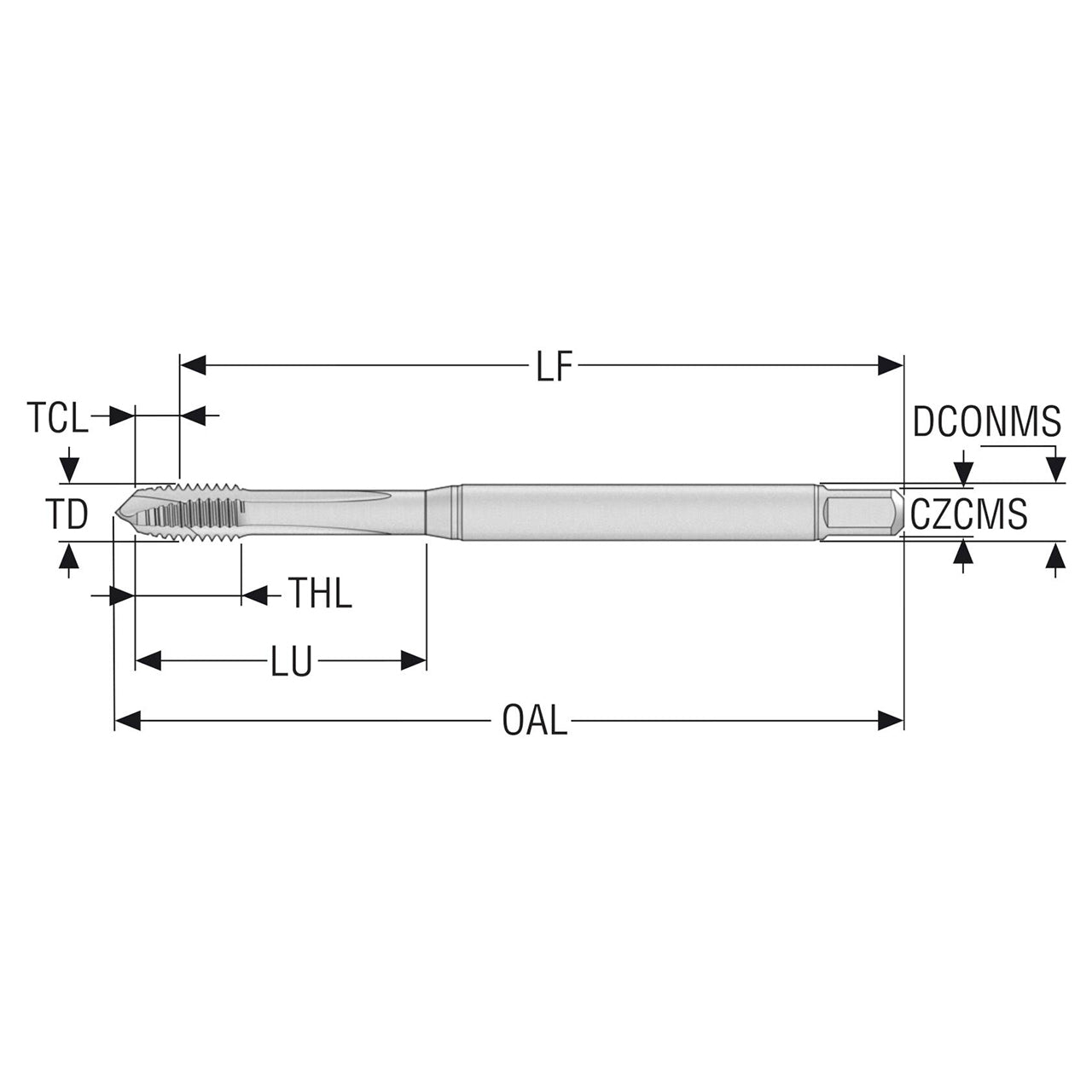

Product Specifications
| Manufacturer Part Number | 10139747 |
| Thread Diameter (Decimal Inch) | 0.902" |
| Thread Diameter (mm) | 22.91mm |
| Threading Chamfer Length (Decimal Inch) | 0.195" |
| Threading Chamfer Length (mm) | 4.94mm |
| Tap Chamfer Length (Decimal Inch) | 0.195" |
| Tap Chamfer Length (mm) | 4.94mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.709" |
| Connection Diameter Machine Side (mm) | 18.00mm |
| Shank Diameter (Decimal Inch) | 0.709" |
| Shank Diameter (mm) | 18.00mm |
| Functional Length (Decimal Inch) | 4.727" |
| Functional Length (mm) | 120.06mm |
| Usable Length (Decimal Inch) | 3.071" |
| Usable Length (mm) | 78.00mm |
| Overall Length (Decimal Inch) | 4.921" |
| Overall Length (mm) | 125.00mm |
| Thread Length (Decimal Inch) | 0.984" |
| Thread Length (mm) | 25.00mm |
| Thread Diameter Size | G5/8-14 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.827" |
| Recommended Premachined Hole Diameter (mm) | 21.00mm |
| Connection Size Code | 18.00X14.50 |
| Connection Size Code Machine Side | 18.00X14.50 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.832" |
| Maximum Premachined Hole Diameter (mm) | 21.13mm |
| Minimum Threads Per Inch (mm) | 14.00mm |
| Maximum Threads Per Inch (mm) | 14.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal |
| Threading Chamfer Type | C |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E |
| Coating | TiAIN+TiN |

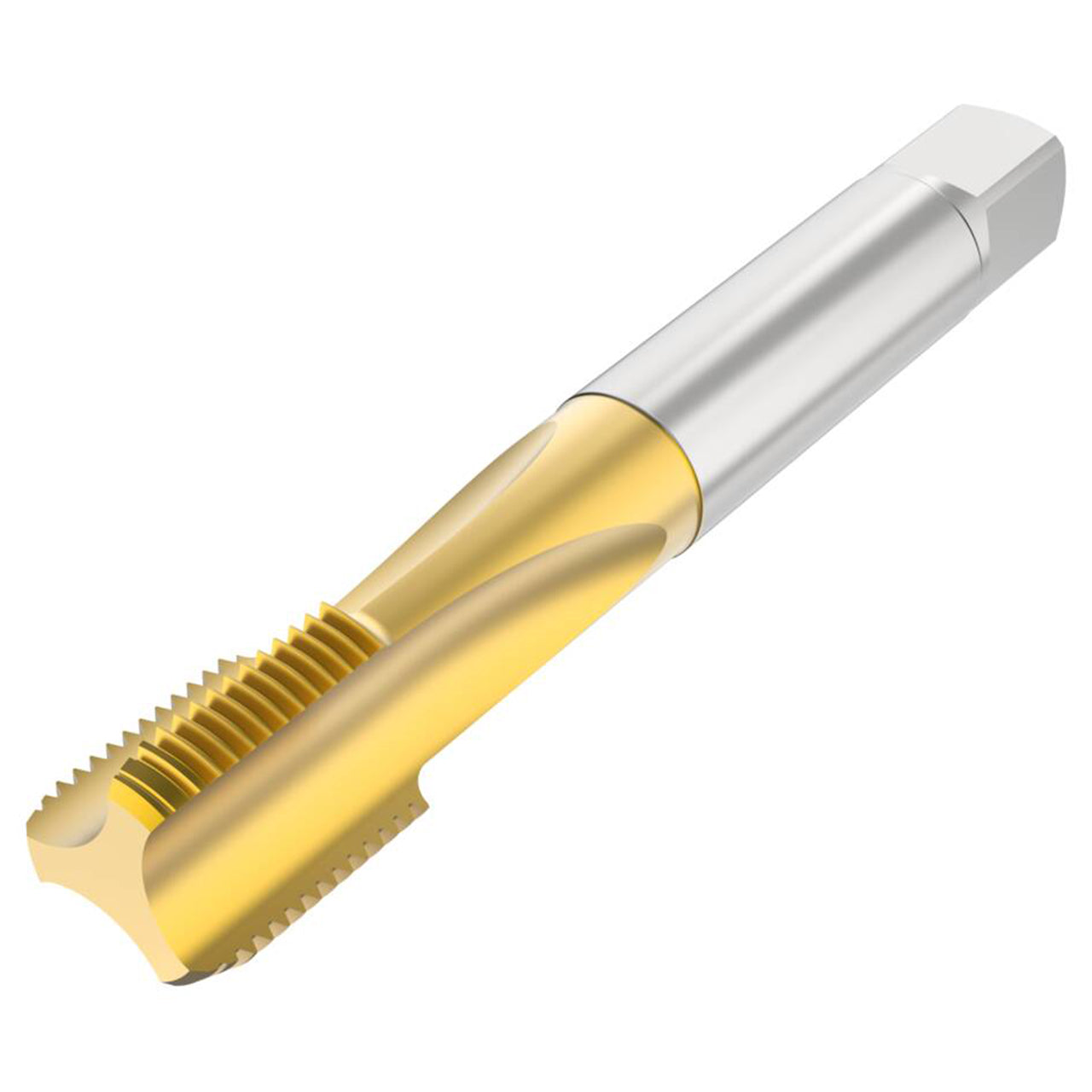

| Product Type | British Standard Pipe Tap |
