Product Specifications
| Manufacturer Part Number | 10139742 |
| Thread Diameter (Decimal Inch) | 1.181" |
| Thread Diameter (mm) | 30.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.212" |
| Threading Chamfer Length (mm) | 5.39mm |
| Tap Chamfer Length (Decimal Inch) | 0.212" |
| Tap Chamfer Length (mm) | 5.39mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.866" |
| Connection Diameter Machine Side (mm) | 22.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Functional Length (Decimal Inch) | 5.693" |
| Functional Length (mm) | 144.61mm |
| Usable Length (Decimal Inch) | 3.347" |
| Usable Length (mm) | 85.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Thread Length (Decimal Inch) | 1.063" |
| Thread Length (mm) | 27.00mm |
| Thread Diameter Size | MF30X1.0 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.102" |
| Recommended Premachined Hole Diameter (mm) | 28.00mm |
| Connection Size Code | 22.00X18.00 |
| Connection Size Code Machine Side | 22.00X18.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.111" |
| Maximum Premachined Hole Diameter (mm) | 28.21mm |
| Minimum Thread Pitch (Decimal Inch) | 0.079" |
| Minimum Thread Pitch (mm) | 2.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.079" |
| Maximum Thread Pitch (mm) | 2.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H |
| Threading Chamfer Type | C |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight |
| Material | HSS-E |
| Coating | TiAIN+TiN |

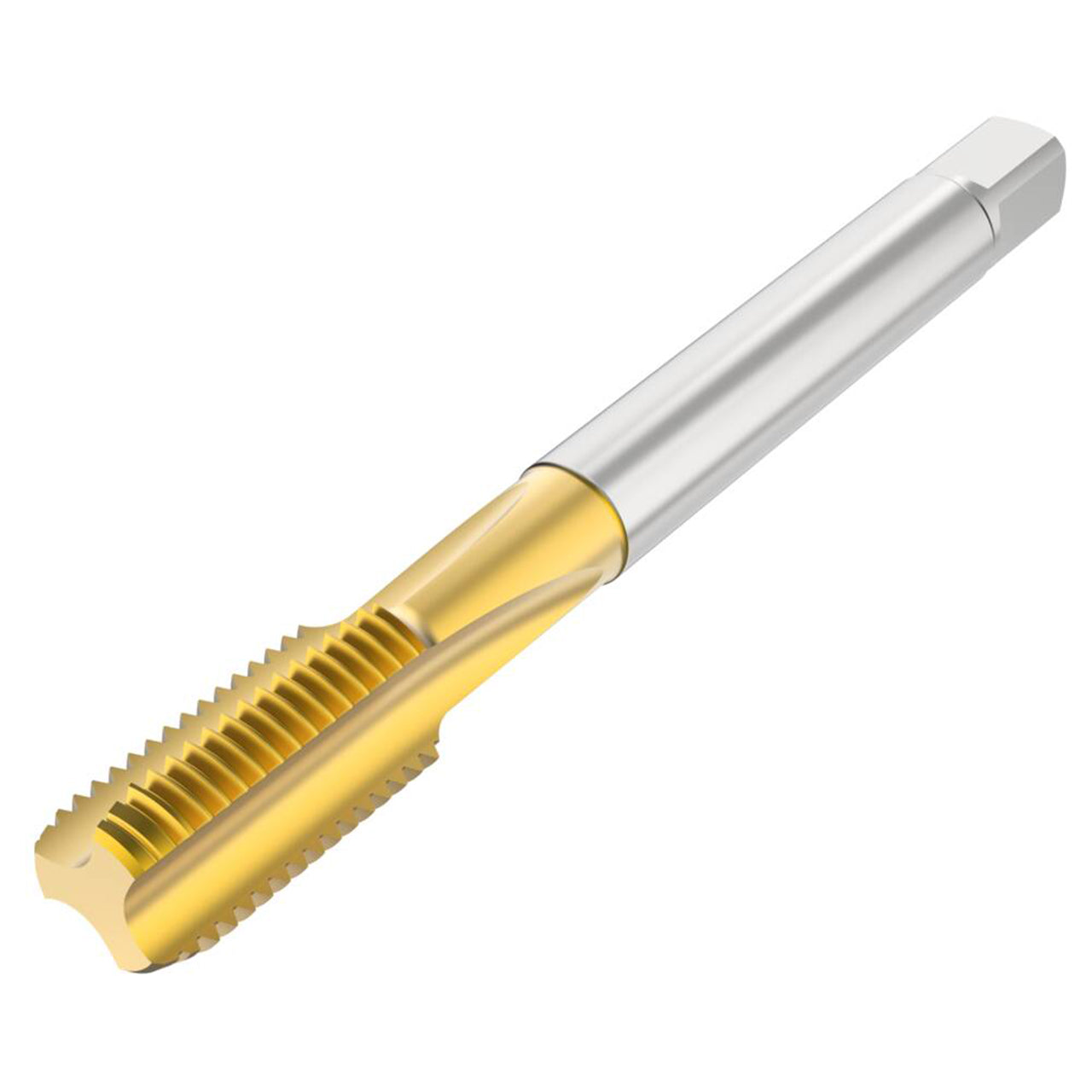

| Product Type | Straight Flute Tap |
