Product Specifications
| Manufacturer Part Number | 10139631 |

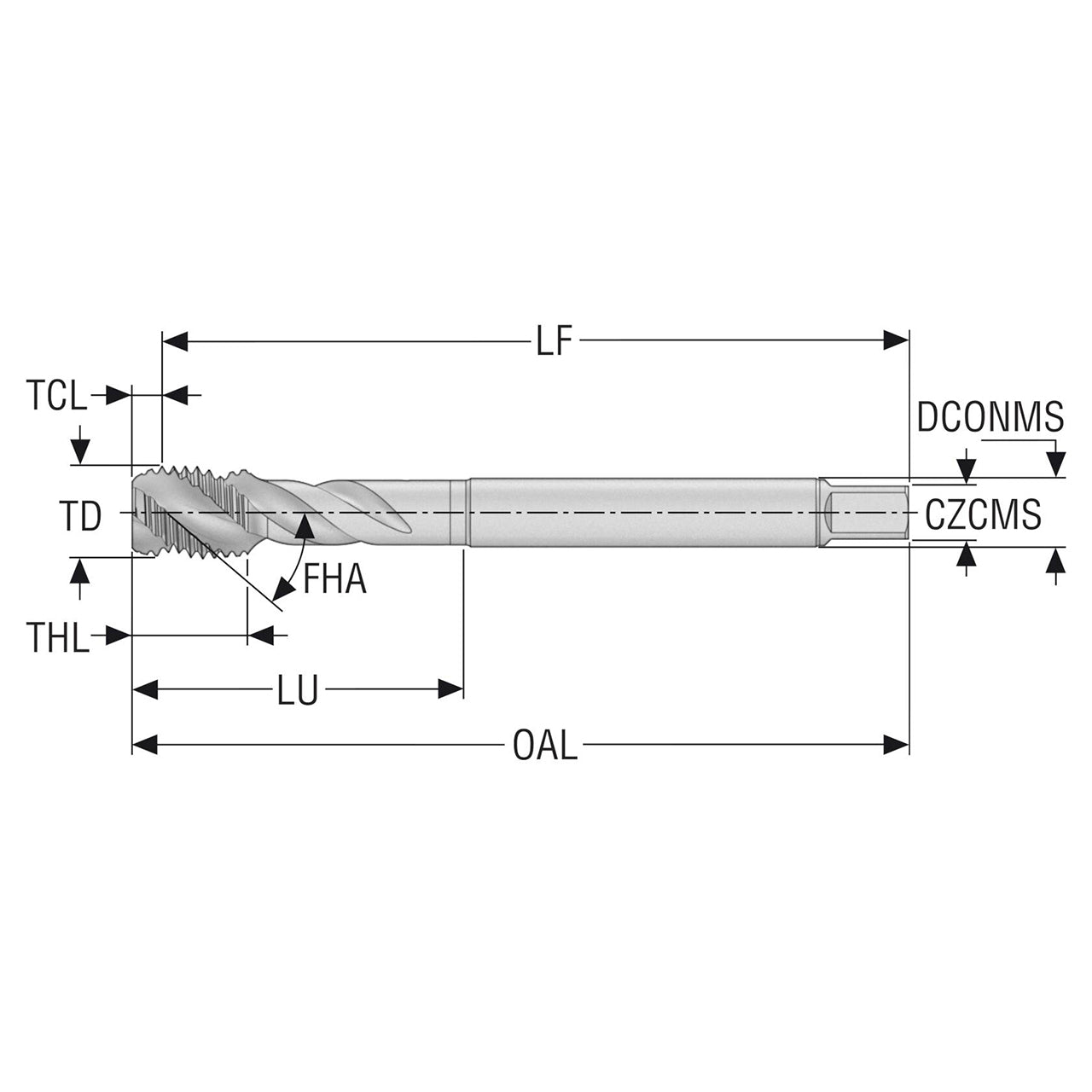

| Thread Diameter (Decimal Inch) | 0.750" |
| Thread Diameter (mm) | 19.05mm |
| Threading Chamfer Length (Decimal Inch) | 0.175" |
| Threading Chamfer Length (mm) | 4.45mm |
| Tap Chamfer Length (Decimal Inch) | 0.175" |
| Tap Chamfer Length (mm) | 4.45mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.551" |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.551" |
| Shank Diameter (mm) | 14.00mm |
| Functional Length (Decimal Inch) | 4.156" |
| Functional Length (mm) | 105.55mm |
| Usable Length (Decimal Inch) | 2.598" |
| Usable Length (mm) | 66.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.669" |
| Thread Length (mm) | 17.00mm |
| Thread Diameter Size | UNF3/4-16 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.689" |
| Recommended Premachined Hole Diameter (mm) | 17.50mm |
| Connection Size Code | 14.00X11.00 |
| Connection Size Code Machine Side | 14.00X11.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.696" |
| Maximum Premachined Hole Diameter (mm) | 17.68mm |
| Minimum Threads Per Inch (mm) | 16.00mm |
| Maximum Threads Per Inch (mm) | 16.00mm |
| Flute Helix Angle (Degree) | 40 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | C |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiAIN+TiN |

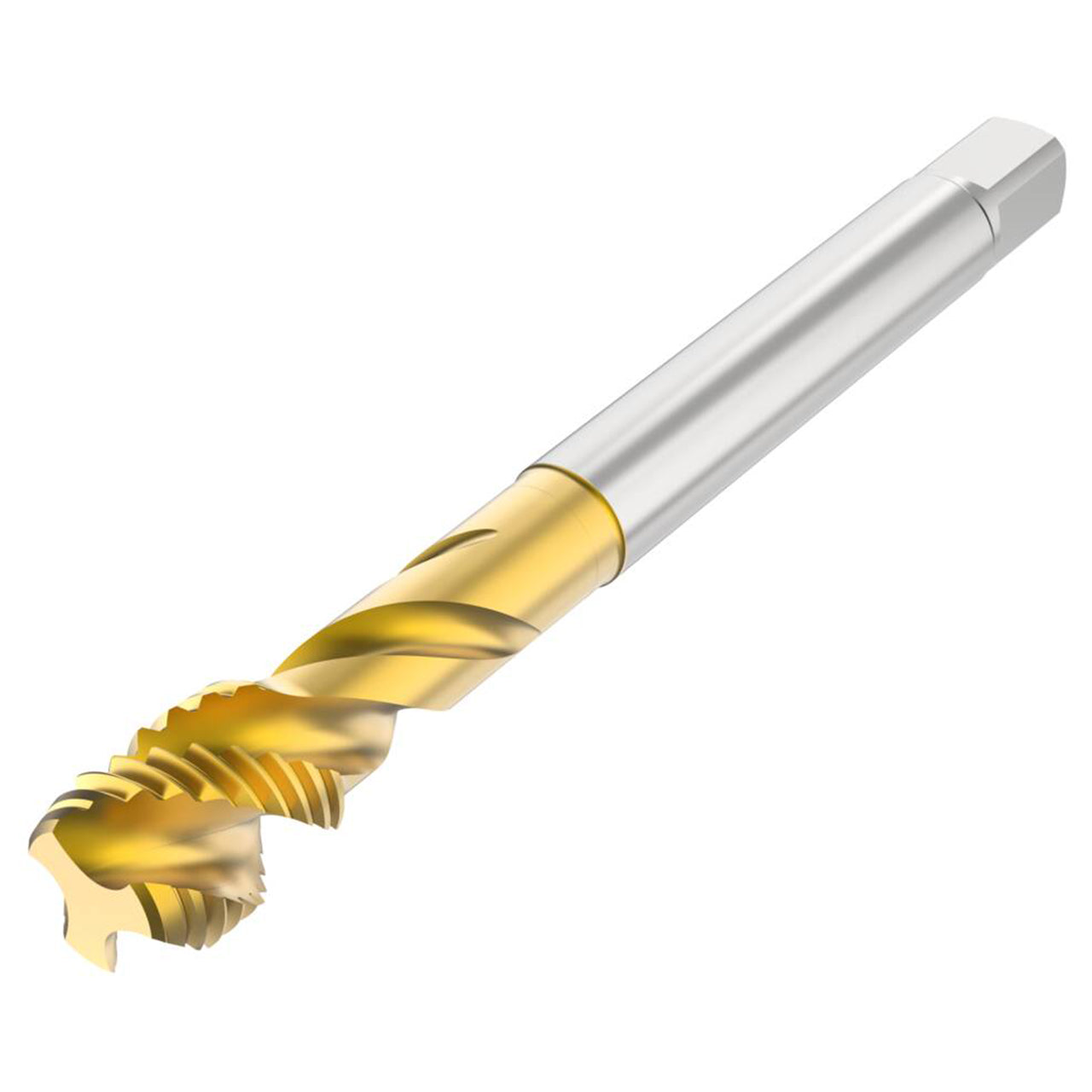

| Product Type | Spiral Flute Tap |
