Product Specifications

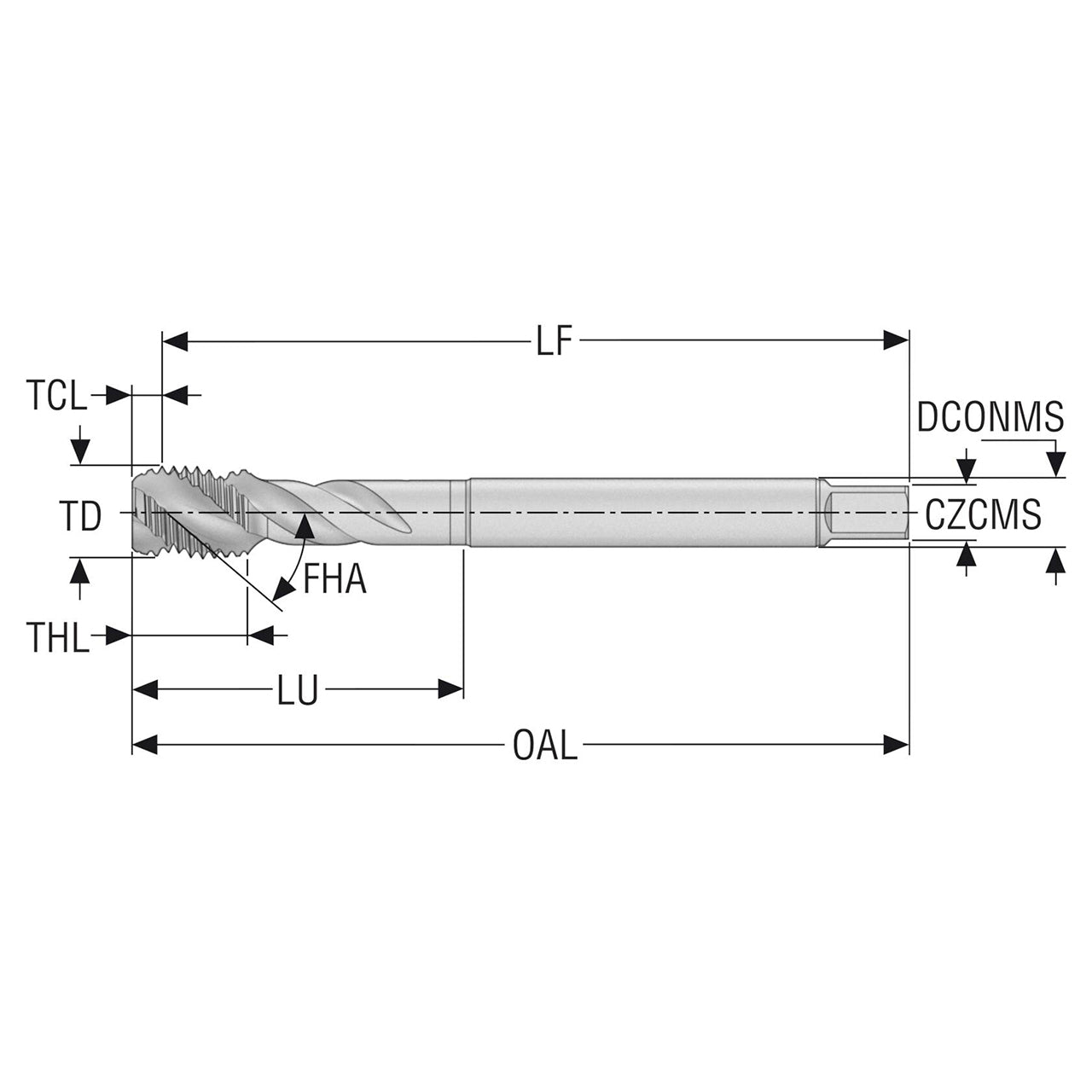

| Manufacturer Part Number | 10139627 |
| Thread Diameter (Decimal Inch) | 0.438" |
| Thread Diameter (mm) | 11.11mm |
| Threading Chamfer Length (Decimal Inch) | 0.132" |
| Threading Chamfer Length (mm) | 3.35mm |
| Tap Chamfer Length (Decimal Inch) | 0.132" |
| Tap Chamfer Length (mm) | 3.35mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Connection Diameter Machine Side (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Functional Length (Decimal Inch) | 3.805" |
| Functional Length (mm) | 96.65mm |
| Usable Length (Decimal Inch) | 2.992" |
| Usable Length (mm) | 76.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | UNF7/16-20 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.390" |
| Recommended Premachined Hole Diameter (mm) | 9.90mm |
| Connection Size Code | 8.00X6.20 |
| Connection Size Code Machine Side | 8.00X6.20 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.395" |
| Maximum Premachined Hole Diameter (mm) | 10.03mm |
| Minimum Threads Per Inch (mm) | 20.00mm |
| Maximum Threads Per Inch (mm) | 20.00mm |
| Flute Helix Angle (Degree) | 40 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | C |
| Thread Form Type | UNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiAIN+TiN |

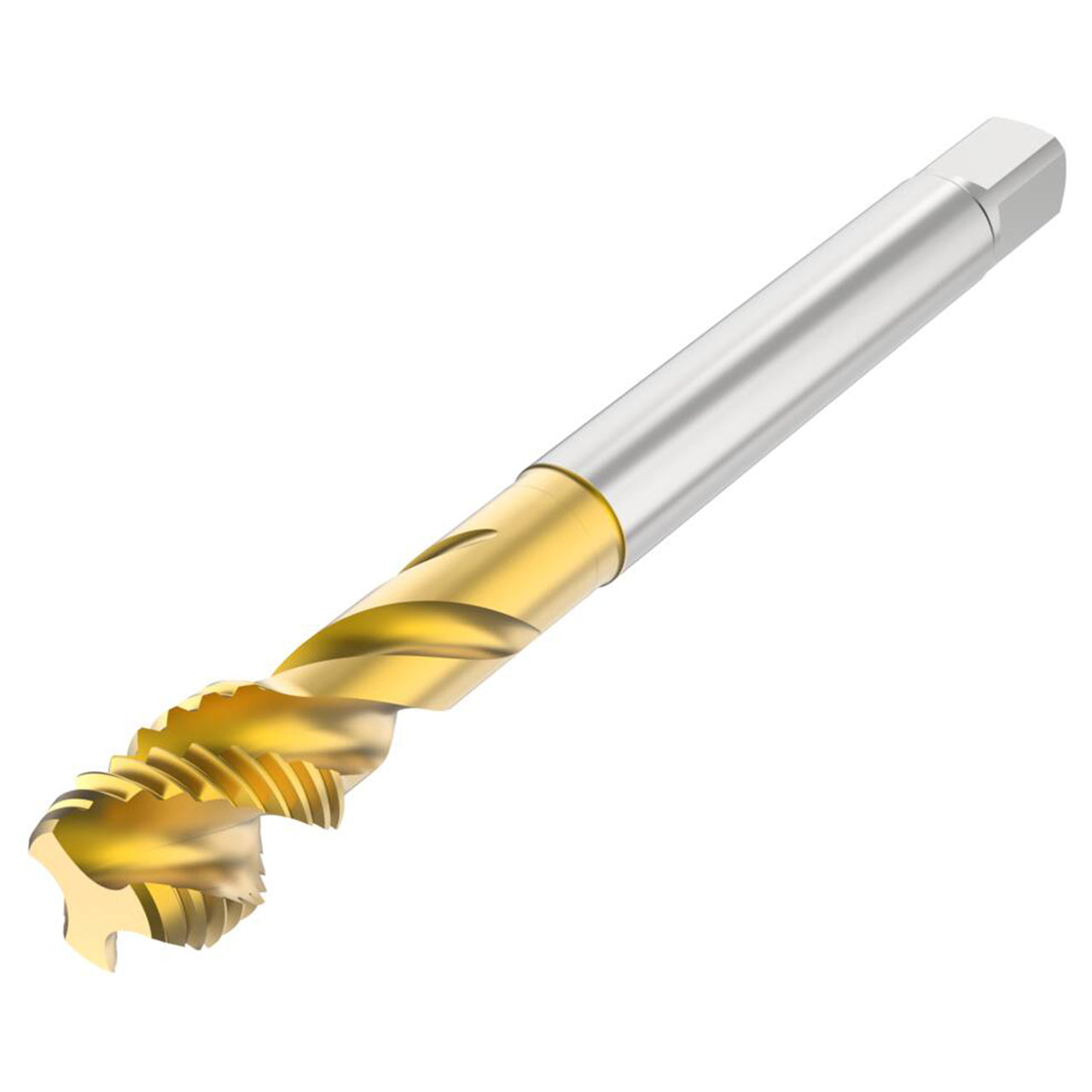

| Product Type | Spiral Flute Tap |
