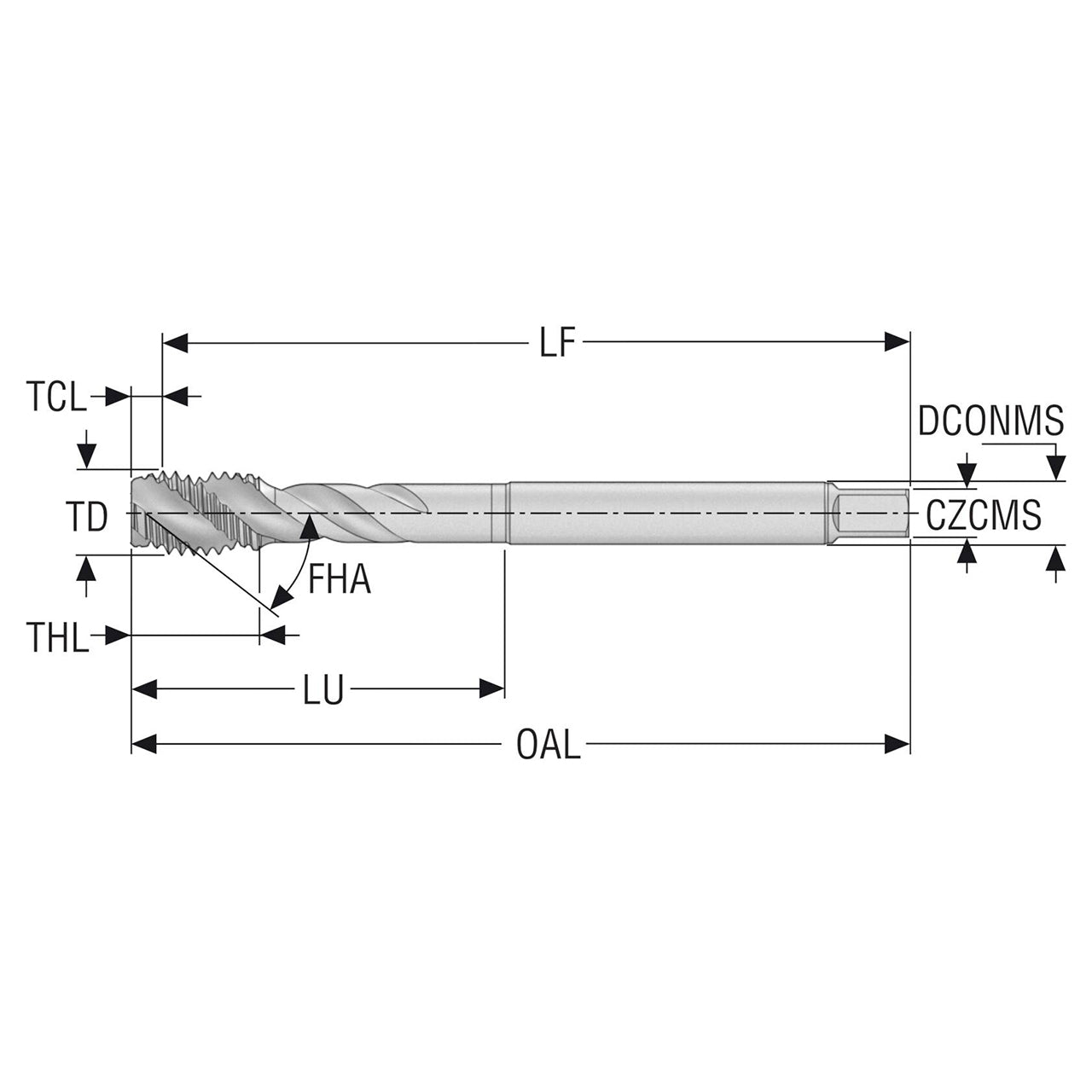

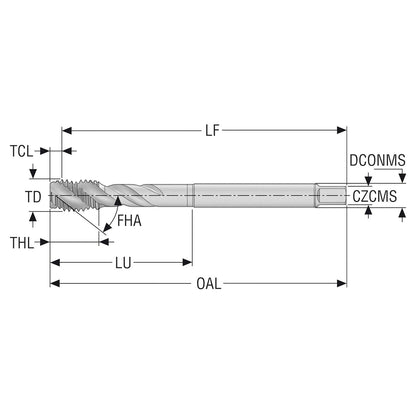

Product Specifications
| Manufacturer Part Number | 10139625 |
| Thread Diameter (Decimal Inch) | 1.500" |
| Thread Diameter (mm) | 38.10mm |
| Threading Chamfer Length (Decimal Inch) | 0.419" |
| Threading Chamfer Length (mm) | 10.63mm |
| Tap Chamfer Length (Decimal Inch) | 0.419" |
| Tap Chamfer Length (mm) | 10.63mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.102" |
| Connection Diameter Machine Side (mm) | 28.00mm |
| Shank Diameter (Decimal Inch) | 1.102" |
| Shank Diameter (mm) | 28.00mm |
| Functional Length (Decimal Inch) | 7.456" |
| Functional Length (mm) | 189.37mm |
| Usable Length (Decimal Inch) | 5.158" |
| Usable Length (mm) | 131.00mm |
| Overall Length (Decimal Inch) | 7.874" |
| Overall Length (mm) | 200.00mm |
| Thread Length (Decimal Inch) | 1.575" |
| Thread Length (mm) | 40.00mm |
| Thread Diameter Size | UNC11/2-6 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.339" |
| Recommended Premachined Hole Diameter (mm) | 34.00mm |
| Connection Size Code | 28.00X22.00 |
| Connection Size Code Machine Side | 28.00X22.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.350" |
| Maximum Premachined Hole Diameter (mm) | 34.29mm |
| Minimum Threads Per Inch (mm) | 6.00mm |
| Maximum Threads Per Inch (mm) | 6.00mm |
| Flute Helix Angle (Degree) | 40 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiAIN+TiN |

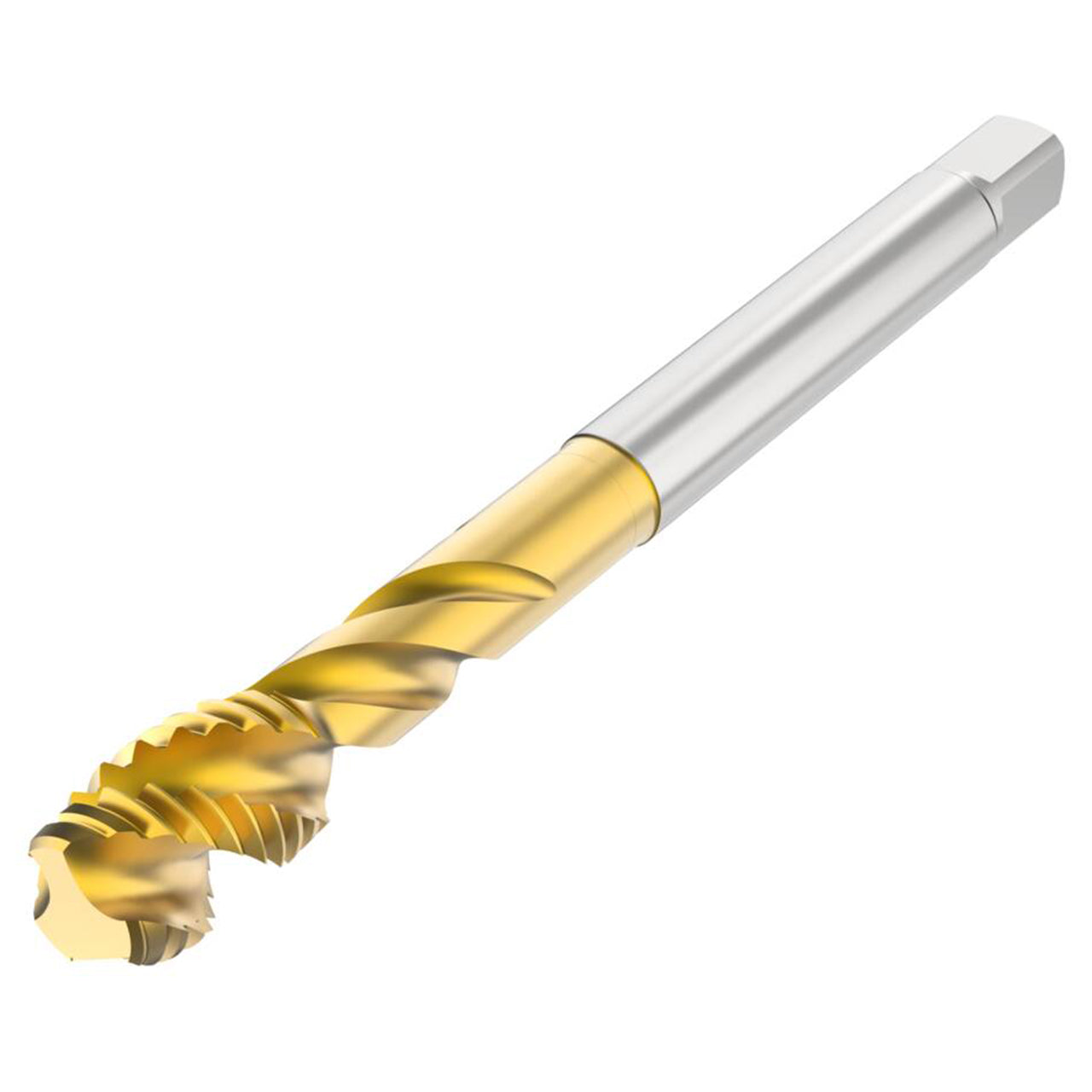

| Product Type | Spiral Flute Tap |
