Product Specifications
| Manufacturer Part Number | 10139624 |
| Thread Diameter (Decimal Inch) | 1.250" |
| Thread Diameter (mm) | 31.75mm |
| Threading Chamfer Length (Decimal Inch) | 0.366" |
| Threading Chamfer Length (mm) | 9.30mm |
| Tap Chamfer Length (Decimal Inch) | 0.366" |
| Tap Chamfer Length (mm) | 9.30mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.866" |
| Connection Diameter Machine Side (mm) | 22.00mm |
| Shank Diameter (Decimal Inch) | 0.866" |
| Shank Diameter (mm) | 22.00mm |
| Functional Length (Decimal Inch) | 6.721" |
| Functional Length (mm) | 170.70mm |
| Usable Length (Decimal Inch) | 4.528" |
| Usable Length (mm) | 115.00mm |
| Overall Length (Decimal Inch) | 7.087" |
| Overall Length (mm) | 180.00mm |
| Thread Length (Decimal Inch) | 1.457" |
| Thread Length (mm) | 37.00mm |
| Thread Diameter Size | UNC11/4-7 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.102" |
| Recommended Premachined Hole Diameter (mm) | 28.00mm |
| Connection Size Code | 22.00X18.00 |
| Connection Size Code Machine Side | 22.00X18.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.123" |
| Maximum Premachined Hole Diameter (mm) | 28.52mm |
| Minimum Threads Per Inch (mm) | 7.00mm |
| Maximum Threads Per Inch (mm) | 7.00mm |
| Flute Helix Angle (Degree) | 40 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiAIN+TiN |

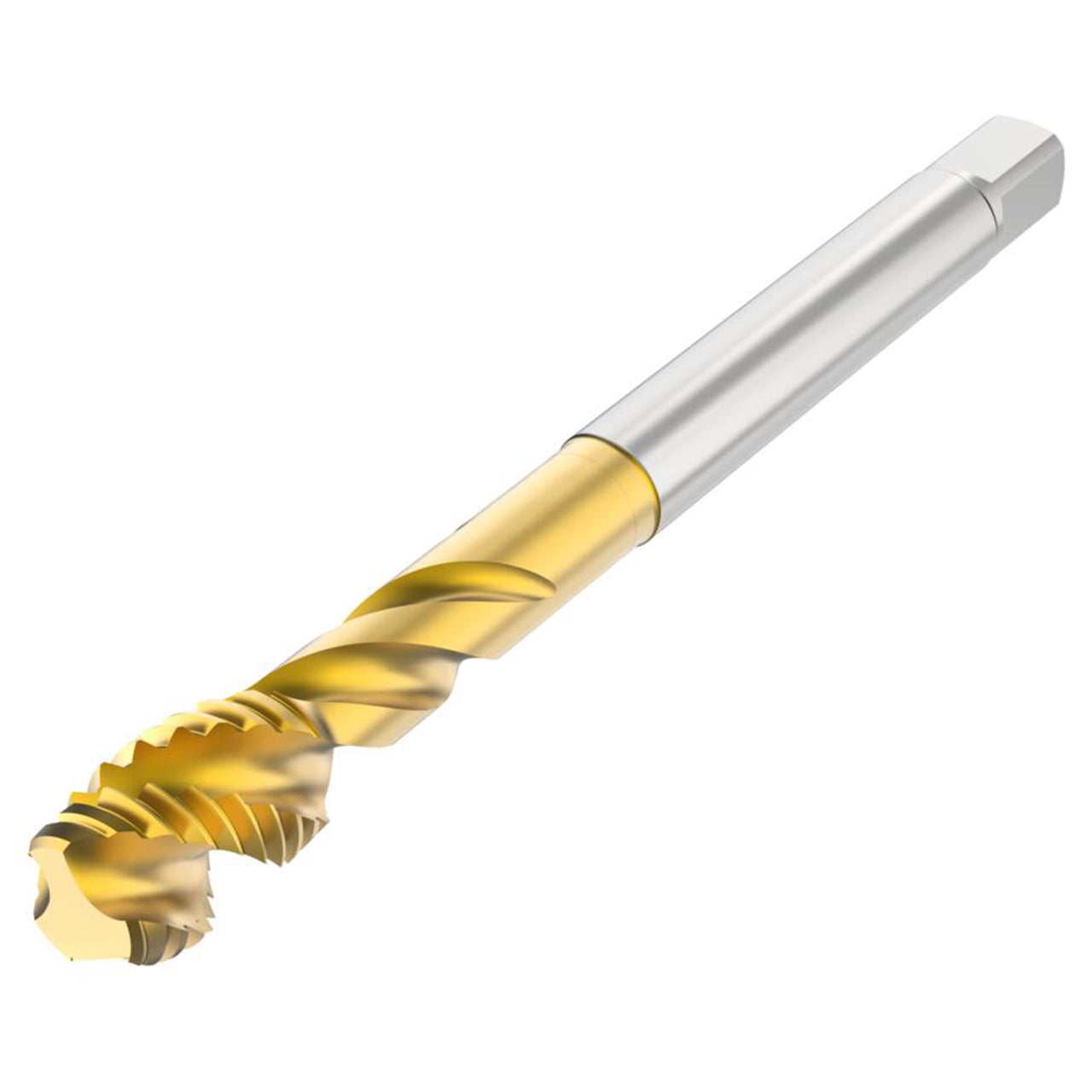

| Product Type | Spiral Flute Tap |
