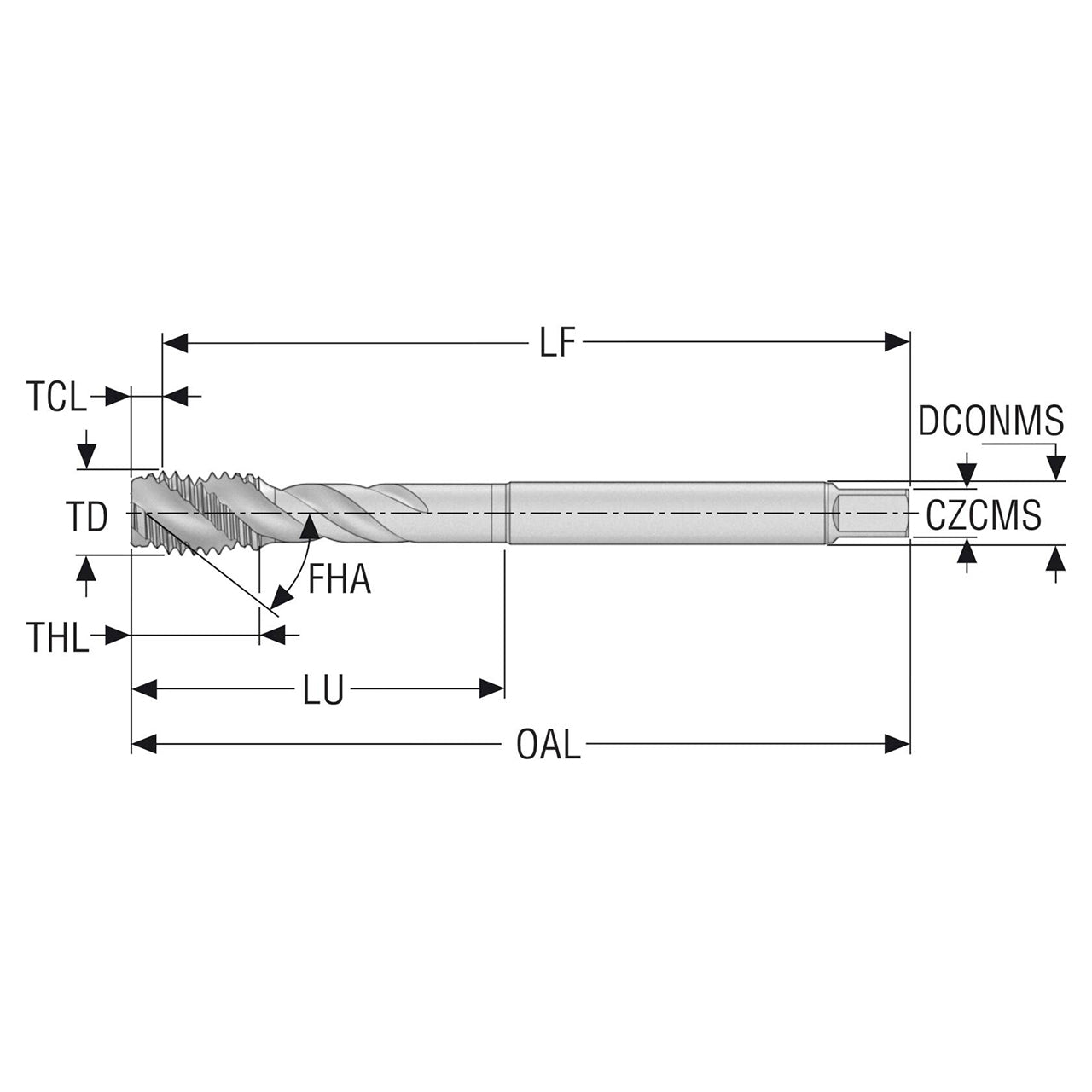

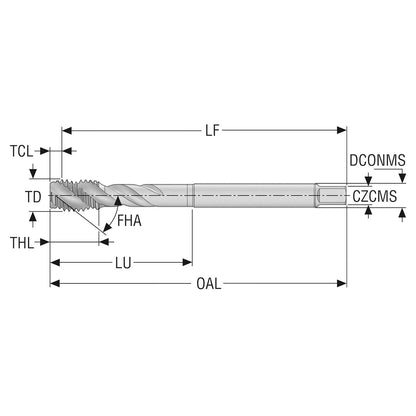

Product Specifications
| Manufacturer Part Number | 10139622 |
| Thread Diameter (Decimal Inch) | 0.875" |
| Thread Diameter (mm) | 22.23mm |
| Threading Chamfer Length (Decimal Inch) | 0.286" |
| Threading Chamfer Length (mm) | 7.27mm |
| Tap Chamfer Length (Decimal Inch) | 0.286" |
| Tap Chamfer Length (mm) | 7.27mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.709" |
| Connection Diameter Machine Side (mm) | 18.00mm |
| Shank Diameter (Decimal Inch) | 0.709" |
| Shank Diameter (mm) | 18.00mm |
| Functional Length (Decimal Inch) | 5.226" |
| Functional Length (mm) | 132.73mm |
| Usable Length (Decimal Inch) | 3.661" |
| Usable Length (mm) | 93.00mm |
| Overall Length (Decimal Inch) | 5.512" |
| Overall Length (mm) | 140.00mm |
| Thread Length (Decimal Inch) | 1.181" |
| Thread Length (mm) | 30.00mm |
| Thread Diameter Size | UNC7/8-9 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.768" |
| Recommended Premachined Hole Diameter (mm) | 19.50mm |
| Connection Size Code | 18.00X14.50 |
| Connection Size Code Machine Side | 18.00X14.50 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.778" |
| Maximum Premachined Hole Diameter (mm) | 19.76mm |
| Minimum Threads Per Inch (mm) | 9.00mm |
| Maximum Threads Per Inch (mm) | 9.00mm |
| Flute Helix Angle (Degree) | 40 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E |
| Coating | TiAIN+TiN |

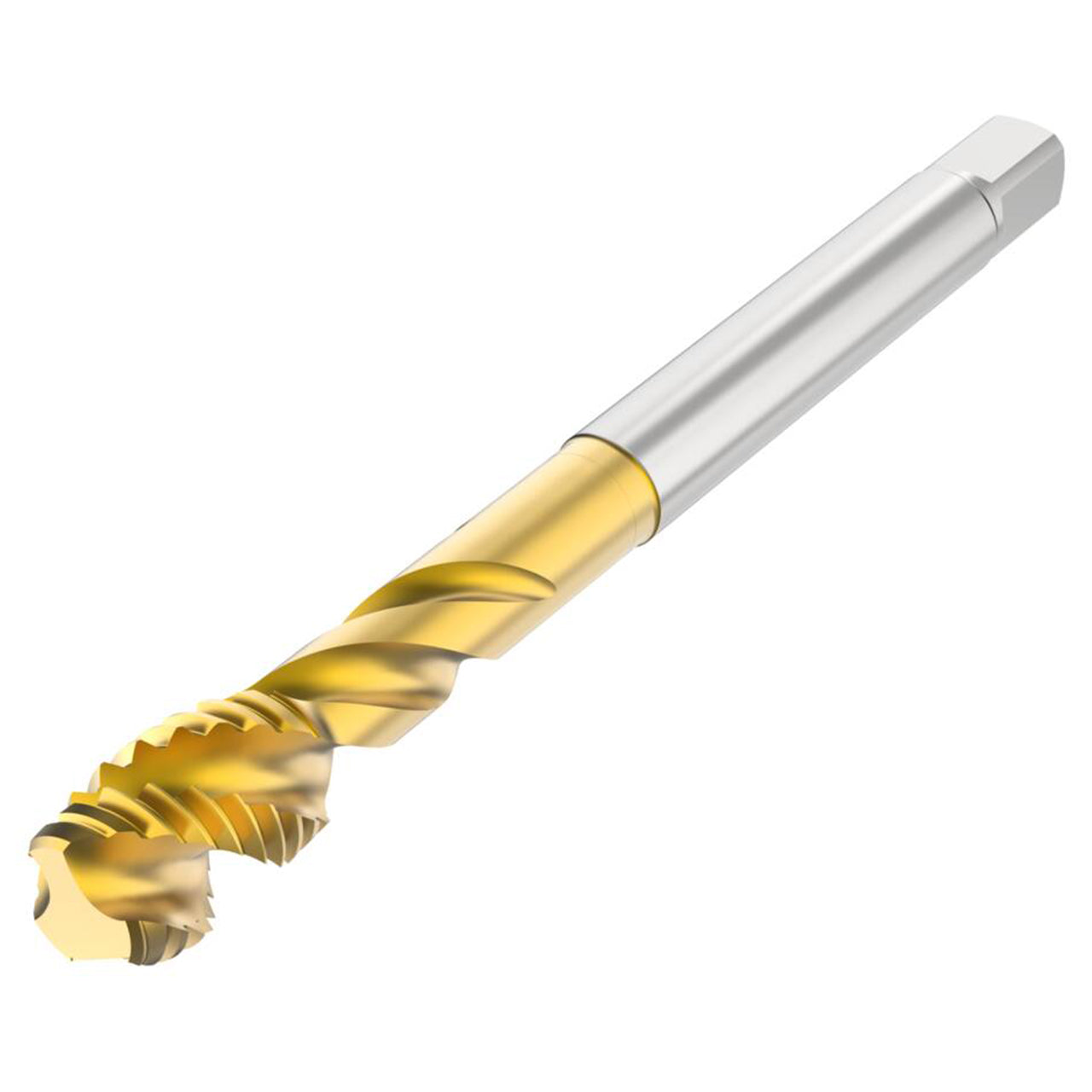

| Product Type | Spiral Flute Tap |
