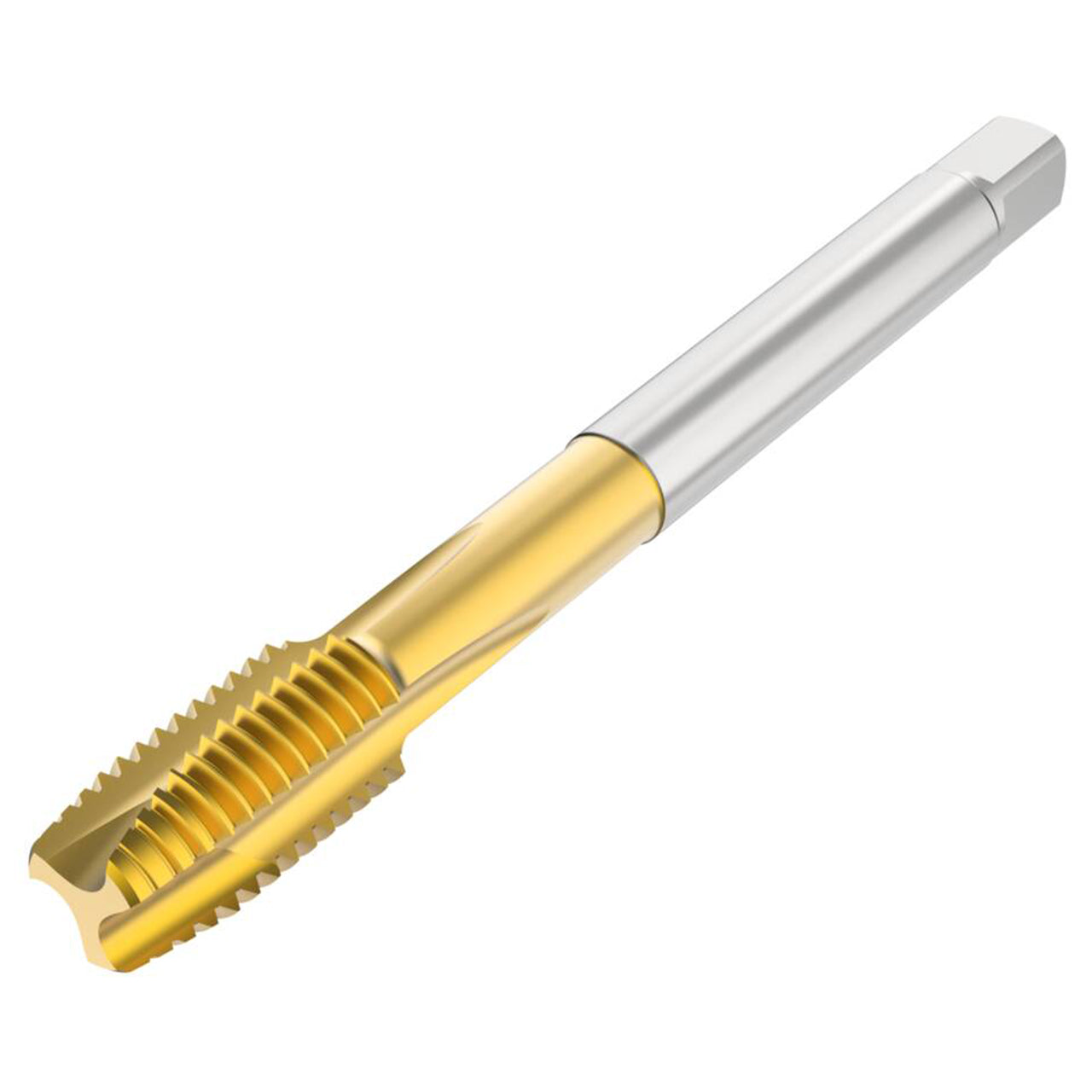

Product Specifications
| Manufacturer Part Number | 10139533 |
| Thread Diameter (Decimal Inch) | 0.563" |
| Thread Diameter (mm) | 14.29mm |
| Threading Chamfer Length (Decimal Inch) | 0.384" |
| Threading Chamfer Length (mm) | 9.76mm |
| Tap Chamfer Length (Decimal Inch) | 0.384" |
| Tap Chamfer Length (mm) | 9.76mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.433" |
| Connection Diameter Machine Side (mm) | 11.00mm |
| Shank Diameter (Decimal Inch) | 0.433" |
| Shank Diameter (mm) | 11.00mm |
| Functional Length (Decimal Inch) | 3.947" |
| Functional Length (mm) | 100.24mm |
| Usable Length (Decimal Inch) | 3.189" |
| Usable Length (mm) | 81.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.984" |
| Thread Length (mm) | 25.00mm |
| Thread Diameter Size | UNC9/16-12 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.484" |
| Recommended Premachined Hole Diameter (mm) | 12.30mm |
| Connection Size Code | 11.00X9.00 |
| Connection Size Code Machine Side | 11.00X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.490" |
| Maximum Premachined Hole Diameter (mm) | 12.45mm |
| Minimum Threads Per Inch (mm) | 12.00mm |
| Maximum Threads Per Inch (mm) | 12.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | B |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T32 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E |
| Coating | TiAIN+TiN |
| Product Type | Straight Flute Tap |
