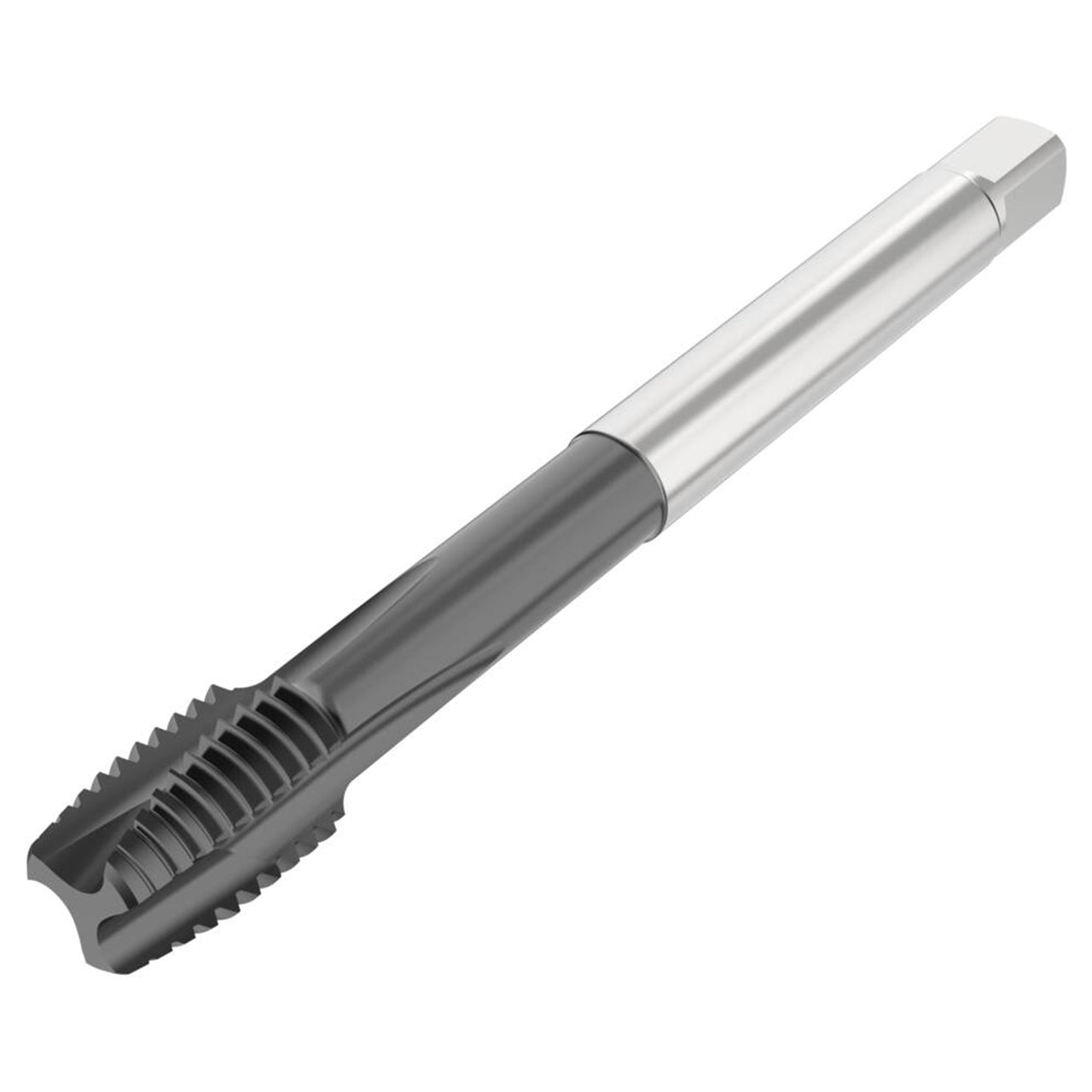

Product Specifications
| Manufacturer Part Number | 10139425 |
| Thread Diameter (Decimal Inch) | 0.697" |
| Thread Diameter (mm) | 17.71mm |
| Threading Chamfer Length (Decimal Inch) | 0.272" |
| Threading Chamfer Length (mm) | 6.90mm |
| Tap Chamfer Length (Decimal Inch) | 0.272" |
| Tap Chamfer Length (mm) | 6.90mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.551" |
| Connection Diameter Machine Side (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.551" |
| Shank Diameter (mm) | 14.00mm |
| Functional Length (Decimal Inch) | 4.059" |
| Functional Length (mm) | 103.10mm |
| Usable Length (Decimal Inch) | 2.598" |
| Usable Length (mm) | 66.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | EGUNF5/8-18 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.640" |
| Recommended Premachined Hole Diameter (mm) | 16.25mm |
| Connection Size Code | 14.00X11.00 |
| Connection Size Code Machine Side | 14.00X11.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.645" |
| Maximum Premachined Hole Diameter (mm) | 16.39mm |
| Minimum Threads Per Inch (mm) | 18.00mm |
| Maximum Threads Per Inch (mm) | 18.00mm |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | B |
| Thread Form Type | EGUNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
