Product Specifications

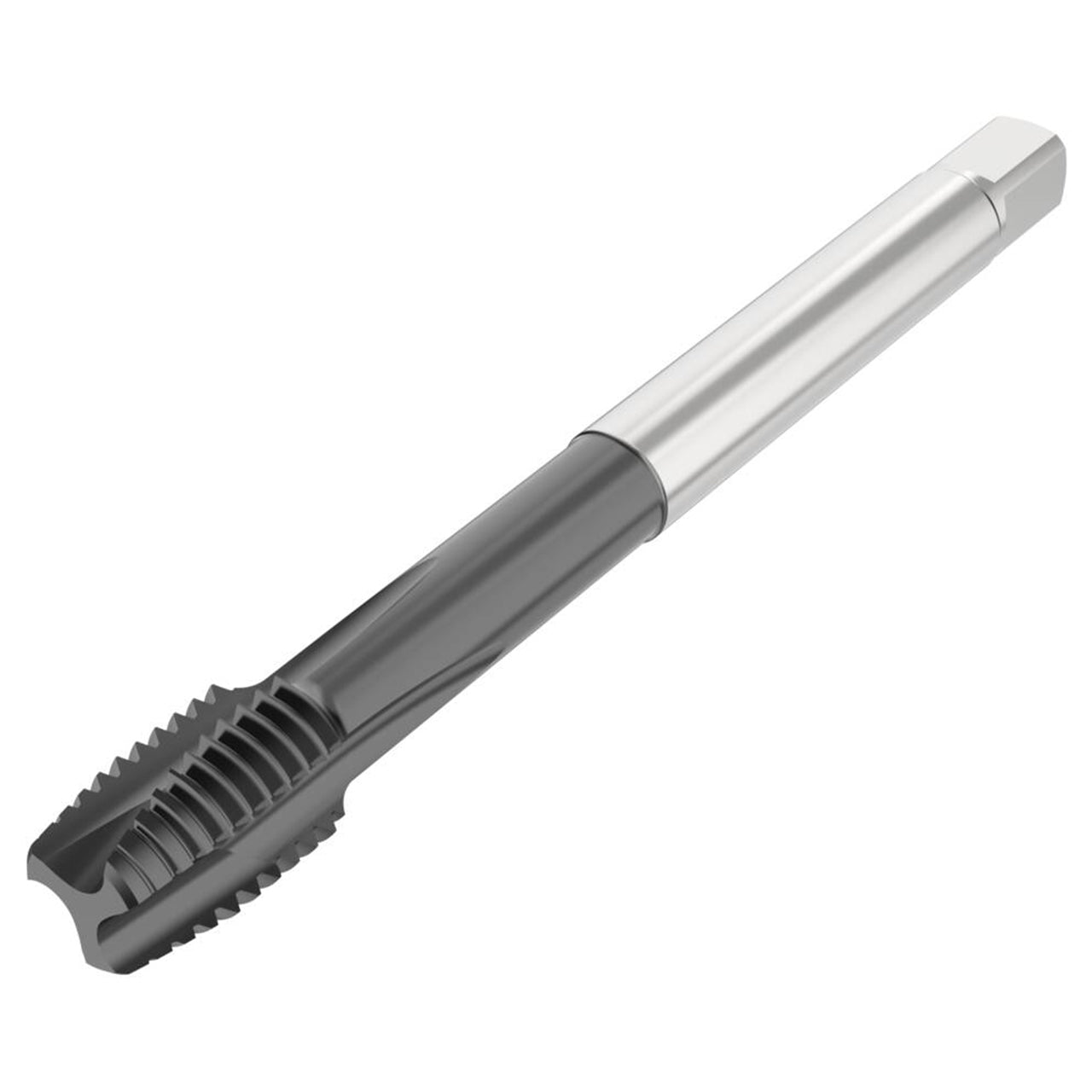

| Manufacturer Part Number | 10139423 |
| Thread Diameter (Decimal Inch) | 0.565" |
| Thread Diameter (mm) | 14.35mm |
| Threading Chamfer Length (Decimal Inch) | 0.244" |
| Threading Chamfer Length (mm) | 6.20mm |
| Tap Chamfer Length (Decimal Inch) | 0.244" |
| Tap Chamfer Length (mm) | 6.20mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.433" |
| Connection Diameter Machine Side (mm) | 11.00mm |
| Shank Diameter (Decimal Inch) | 0.433" |
| Shank Diameter (mm) | 11.00mm |
| Functional Length (Decimal Inch) | 3.693" |
| Functional Length (mm) | 93.80mm |
| Usable Length (Decimal Inch) | 2.795" |
| Usable Length (mm) | 71.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.591" |
| Thread Length (mm) | 15.00mm |
| Thread Diameter Size | EGUNF1/2-20 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.516" |
| Recommended Premachined Hole Diameter (mm) | 13.10mm |
| Connection Size Code | 11.00X9.00 |
| Connection Size Code Machine Side | 11.00X9.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.519" |
| Maximum Premachined Hole Diameter (mm) | 13.17mm |
| Minimum Threads Per Inch (mm) | 20.00mm |
| Maximum Threads Per Inch (mm) | 20.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2B |
| Threading Chamfer Type | B |
| Thread Form Type | EGUNF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
