Product Specifications

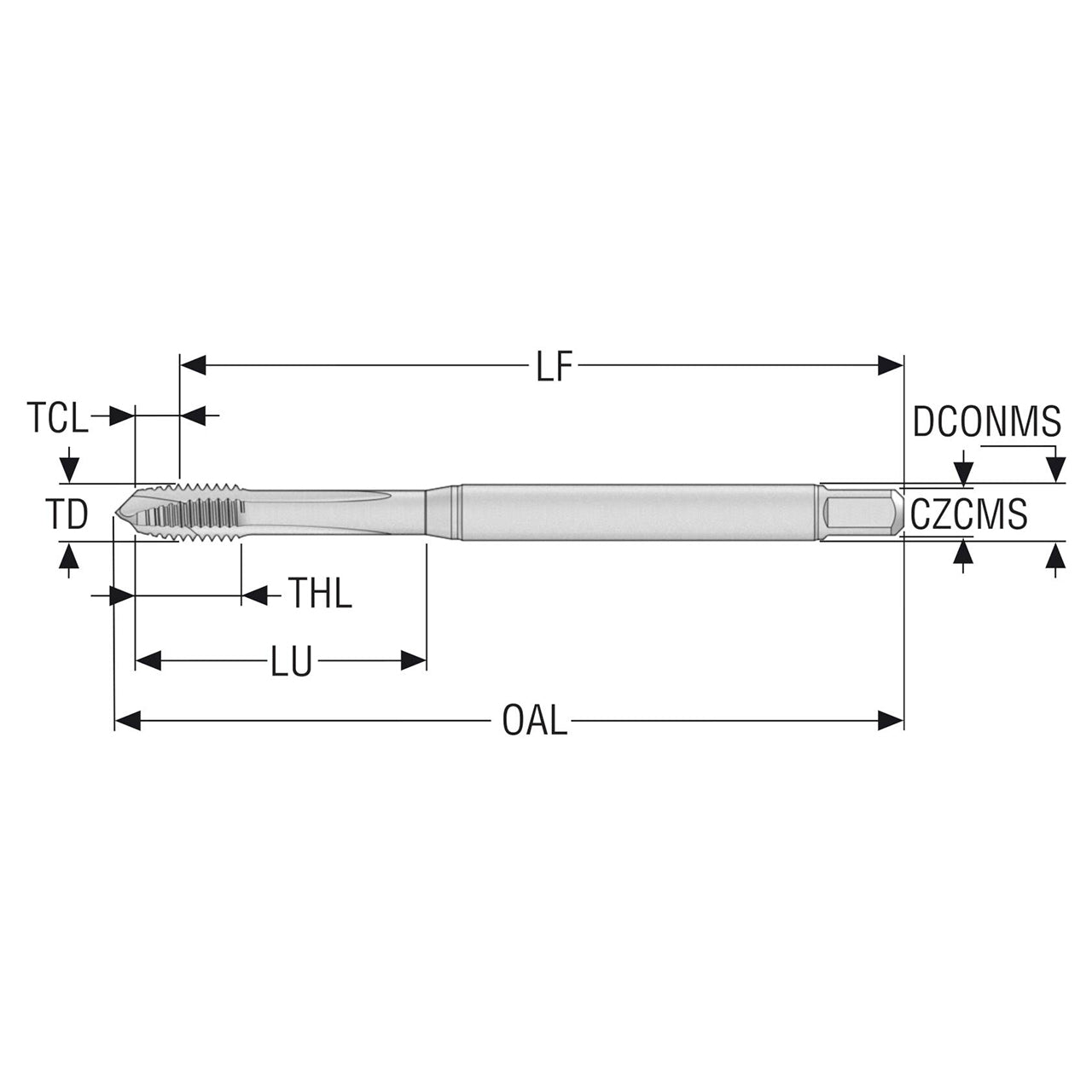

| Manufacturer Part Number | 10139401 |
| Thread Diameter (Decimal Inch) | 0.383" |
| Thread Diameter (mm) | 9.73mm |
| Threading Chamfer Length (Decimal Inch) | 0.177" |
| Threading Chamfer Length (mm) | 4.49mm |
| Tap Chamfer Length (Decimal Inch) | 0.177" |
| Tap Chamfer Length (mm) | 4.49mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.276" |
| Connection Diameter Machine Side (mm) | 7.00mm |
| Shank Diameter (Decimal Inch) | 0.276" |
| Shank Diameter (mm) | 7.00mm |
| Functional Length (Decimal Inch) | 3.367" |
| Functional Length (mm) | 85.51mm |
| Usable Length (Decimal Inch) | 1.417" |
| Usable Length (mm) | 36.00mm |
| Overall Length (Decimal Inch) | 3.543" |
| Overall Length (mm) | 90.00mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | G1/8-28 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.347" |
| Recommended Premachined Hole Diameter (mm) | 8.80mm |
| Connection Size Code | 7.00X5.50 |
| Connection Size Code Machine Side | 7.00X5.50 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.348" |
| Maximum Premachined Hole Diameter (mm) | 8.85mm |
| Minimum Threads Per Inch (mm) | 28.00mm |
| Maximum Threads Per Inch (mm) | 28.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal-X |
| Threading Chamfer Type | B |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |

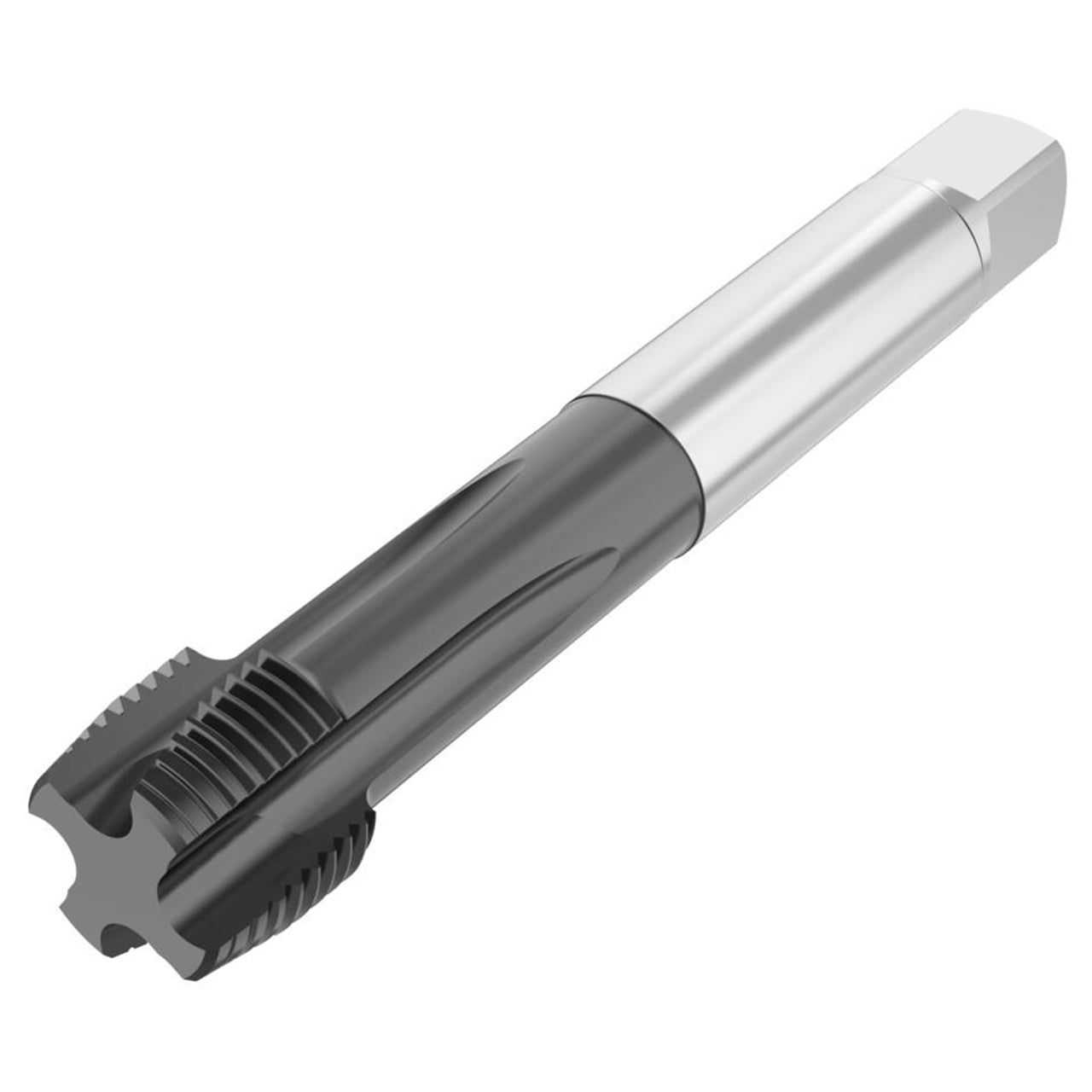

| Product Type | British Standard Pipe Tap |
