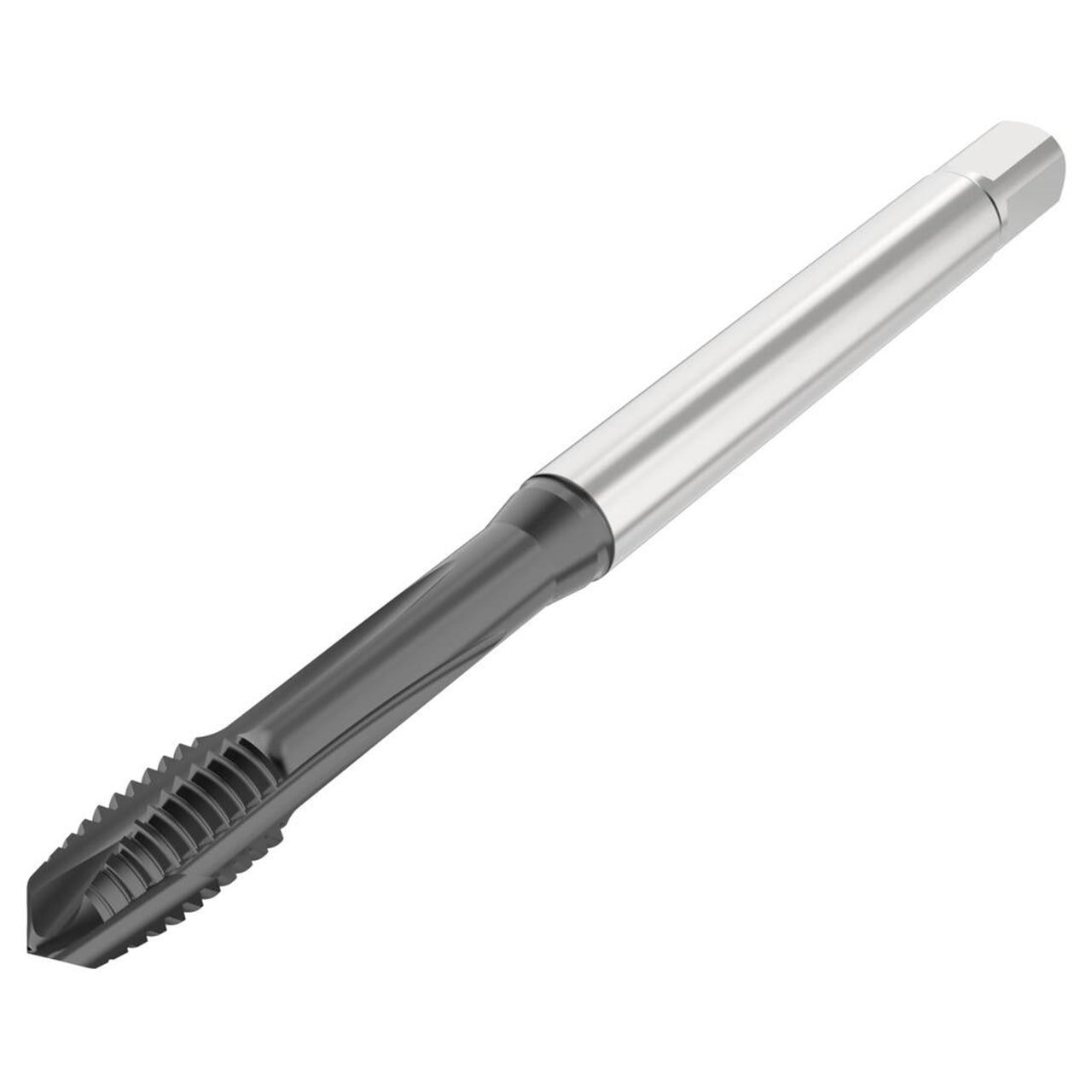

Product Specifications
| Manufacturer Part Number | 10139344 |
| Thread Diameter (Decimal Inch) | 0.236" |
| Thread Diameter (mm) | 6.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.092" |
| Threading Chamfer Length (mm) | 2.34mm |
| Tap Chamfer Length (Decimal Inch) | 0.092" |
| Tap Chamfer Length (mm) | 2.34mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.236" |
| Connection Diameter Machine Side (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.236" |
| Shank Diameter (mm) | 6.00mm |
| Functional Length (Decimal Inch) | 3.058" |
| Functional Length (mm) | 77.66mm |
| Usable Length (Decimal Inch) | 1.181" |
| Usable Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 3.244" |
| Overall Length (mm) | 82.40mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.00mm |
| Thread Diameter Size | MF6X0.5 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.217" |
| Recommended Premachined Hole Diameter (mm) | 5.50mm |
| Connection Size Code | 6.00X4.90 |
| Connection Size Code Machine Side | 6.00X4.90 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.220" |
| Maximum Premachined Hole Diameter (mm) | 5.60mm |
| Minimum Thread Pitch (Decimal Inch) | 0.020" |
| Minimum Thread Pitch (mm) | 0.50mm |
| Maximum Thread Pitch (Decimal Inch) | 0.020" |
| Maximum Thread Pitch (mm) | 0.50mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | B |
| Thread Form Type | MF |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
