Product Specifications
| Manufacturer Part Number | 10139257 |

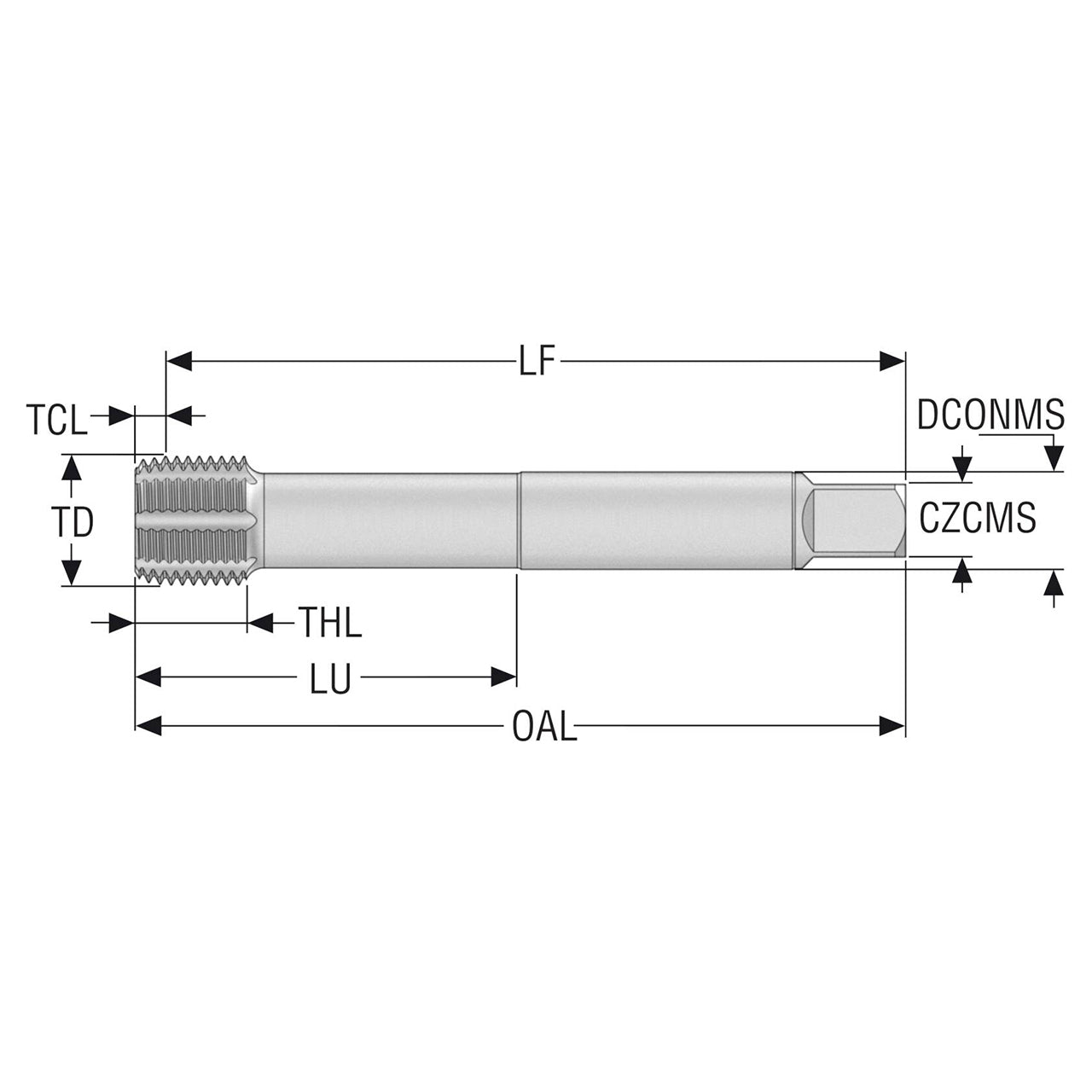

| Thread Diameter (Decimal Inch) | 1.041" |
| Thread Diameter (mm) | 26.44mm |
| Threading Chamfer Length (Decimal Inch) | 0.201" |
| Threading Chamfer Length (mm) | 5.10mm |
| Tap Chamfer Length (Decimal Inch) | 0.201" |
| Tap Chamfer Length (mm) | 5.10mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.787" |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (mm) | 20.00mm |
| Functional Length (Decimal Inch) | 5.311" |
| Functional Length (mm) | 134.90mm |
| Usable Length (Decimal Inch) | 2.874" |
| Usable Length (mm) | 73.00mm |
| Overall Length (Decimal Inch) | 5.512" |
| Overall Length (mm) | 140.00mm |
| Thread Length (Decimal Inch) | 0.866" |
| Thread Length (mm) | 22.00mm |
| Thread Diameter Size | G3/4-14 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.008" |
| Recommended Premachined Hole Diameter (mm) | 25.60mm |
| Connection Size Code | 20.00X16.00 |
| Connection Size Code Machine Side | 20.00X16.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.008" |
| Maximum Premachined Hole Diameter (mm) | 25.60mm |
| Minimum Threads Per Inch (mm) | 14.00mm |
| Maximum Threads Per Inch (mm) | 14.00mm |
| Number of Flute | 7 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal-X |
| Threading Chamfer Type | C |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E |
| Coating | TiAIN+TiN |

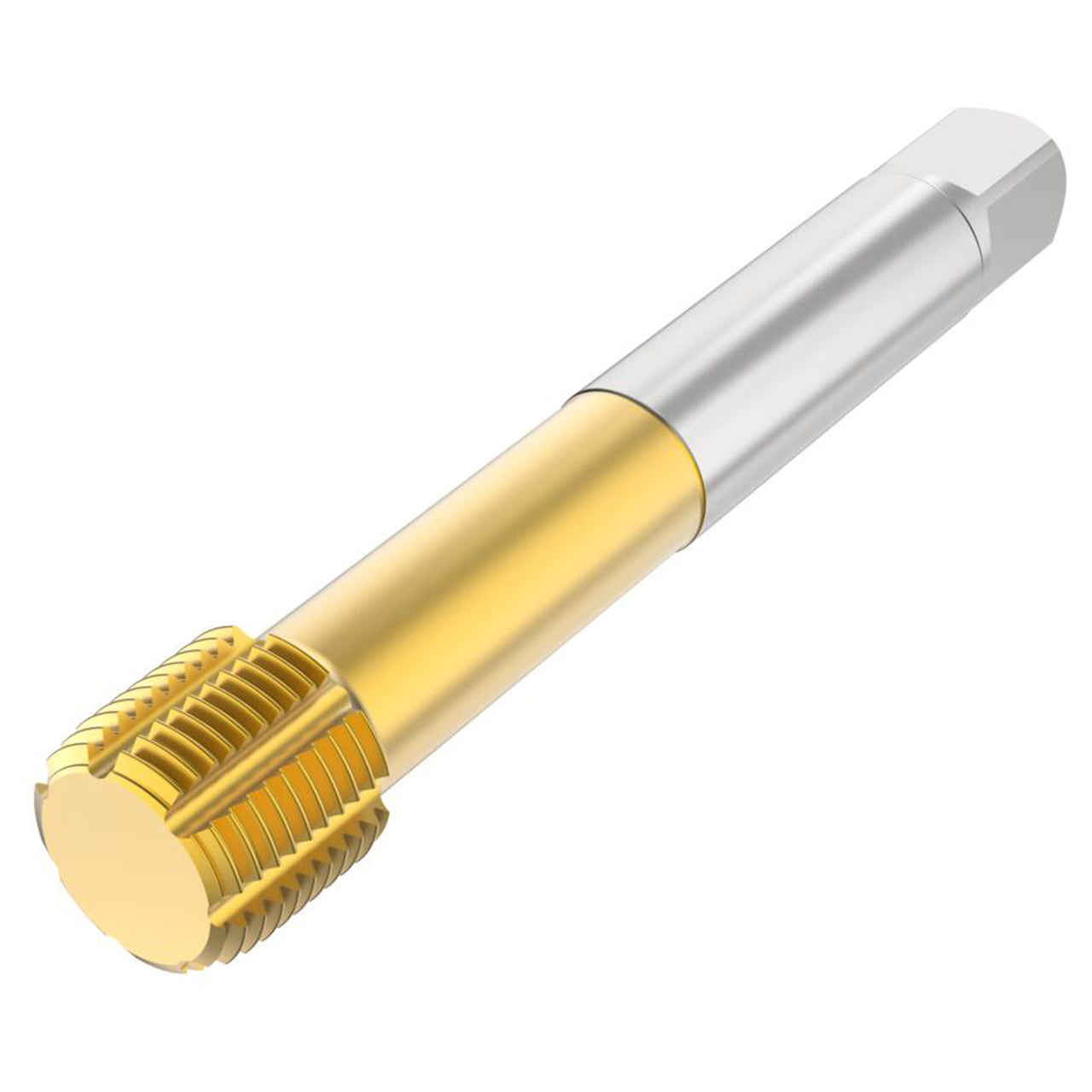

| Product Type | Thread Forming Tap |
