Product Specifications

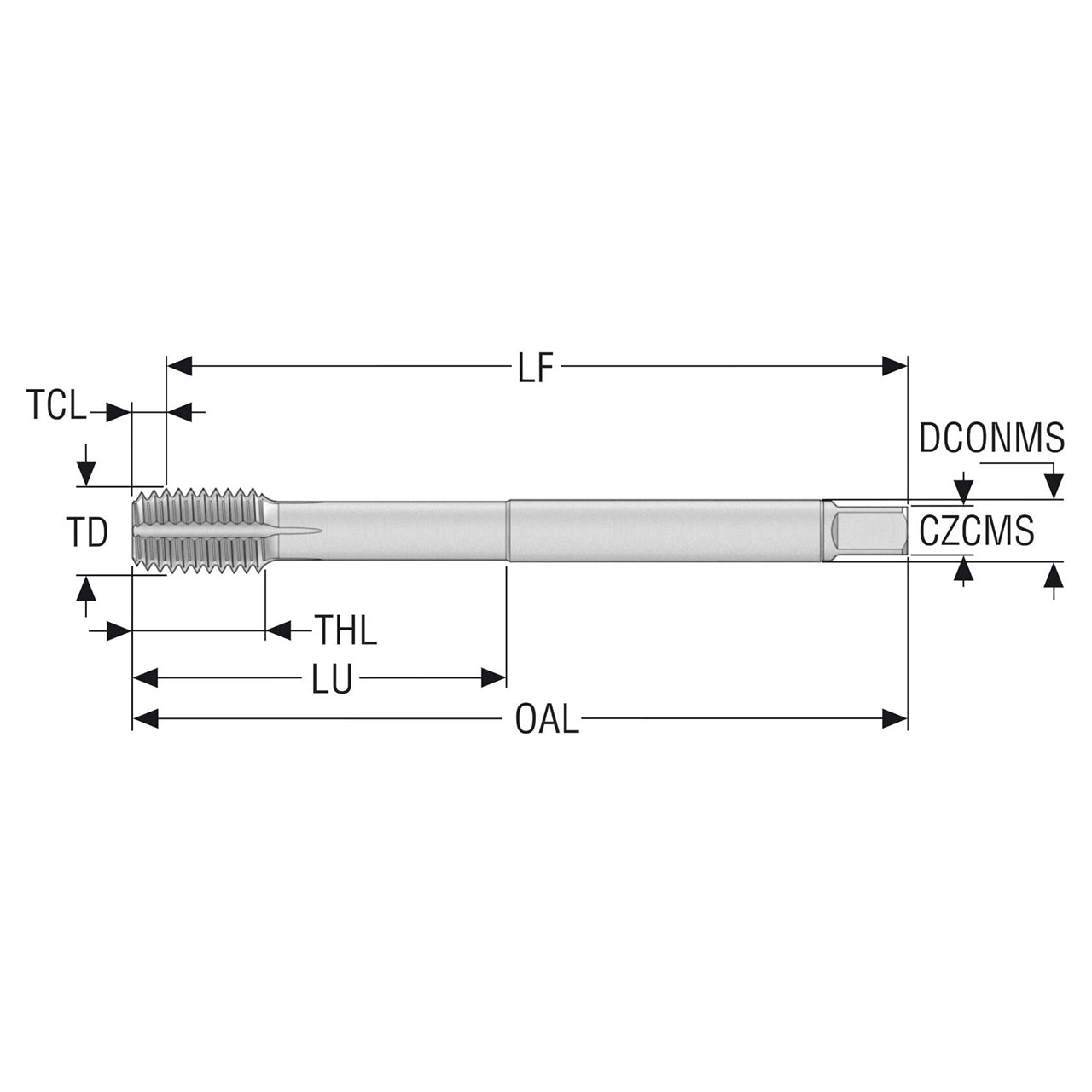

| Manufacturer Part Number | 10139239 |
| Thread Diameter (Decimal Inch) | 0.500" |
| Thread Diameter (mm) | 12.70mm |
| Threading Chamfer Length (Decimal Inch) | 0.228" |
| Threading Chamfer Length (mm) | 5.80mm |
| Tap Chamfer Length (Decimal Inch) | 0.228" |
| Tap Chamfer Length (mm) | 5.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.354" |
| Connection Diameter Machine Side (mm) | 9.00mm |
| Shank Diameter (Decimal Inch) | 0.354" |
| Shank Diameter (mm) | 9.00mm |
| Functional Length (Decimal Inch) | 4.102" |
| Functional Length (mm) | 104.20mm |
| Usable Length (Decimal Inch) | 3.268" |
| Usable Length (mm) | 83.00mm |
| Overall Length (Decimal Inch) | 4.331" |
| Overall Length (mm) | 110.00mm |
| Thread Length (Decimal Inch) | 0.709" |
| Thread Length (mm) | 18.00mm |
| Thread Diameter Size | UNC1/2-13 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.465" |
| Recommended Premachined Hole Diameter (mm) | 11.80mm |
| Connection Size Code | 9.00X7.00 |
| Connection Size Code Machine Side | 9.00X7.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.465" |
| Maximum Premachined Hole Diameter (mm) | 11.80mm |
| Minimum Threads Per Inch (mm) | 13.00mm |
| Maximum Threads Per Inch (mm) | 13.00mm |
| Number of Flute | 5 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | C |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T33 |
| Cutting Geometry Type Technical | Oil grooves |
| Material | HSS-E |
| Coating | TiAIN+TiN |

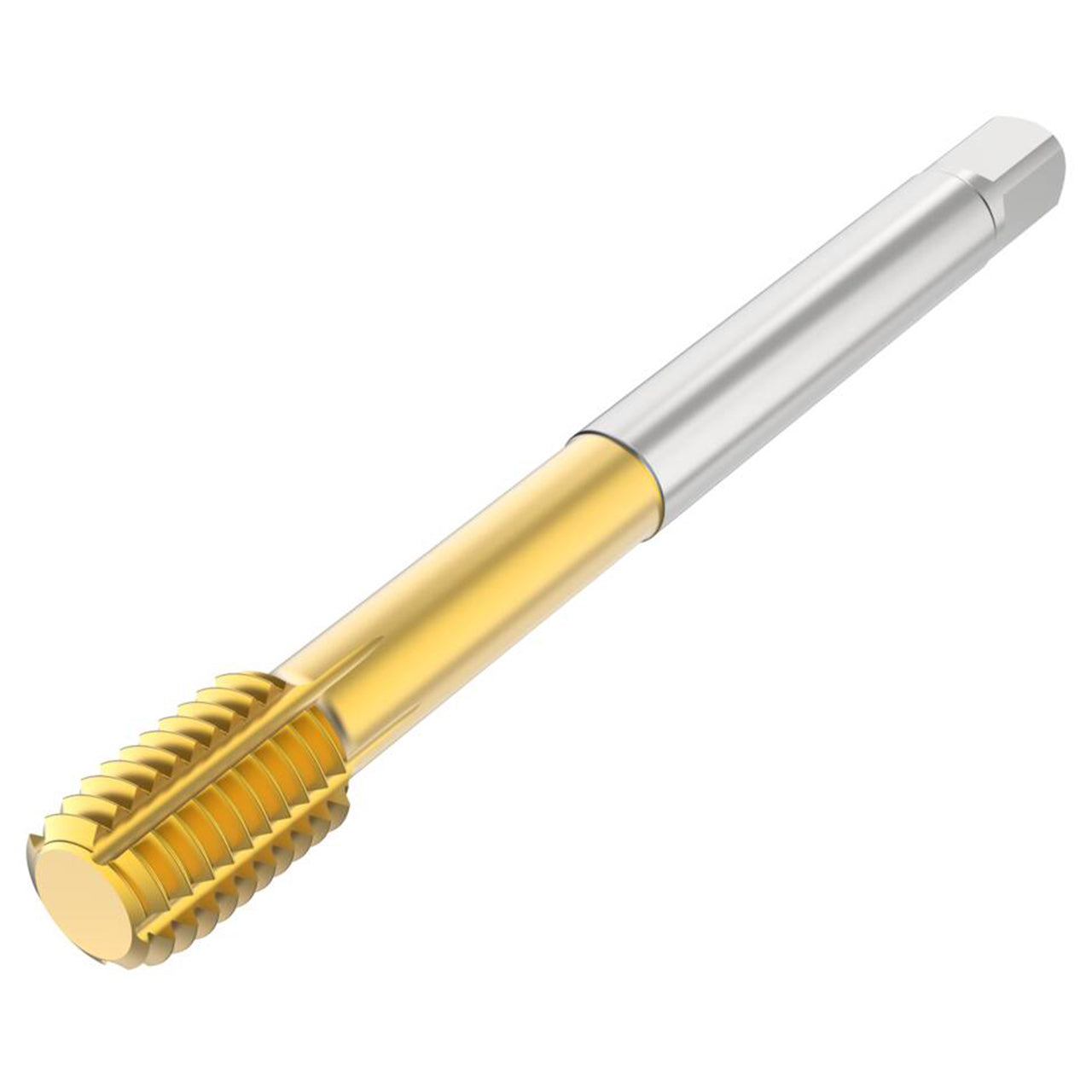

| Product Type | Thread Forming Tap |
