Product Specifications

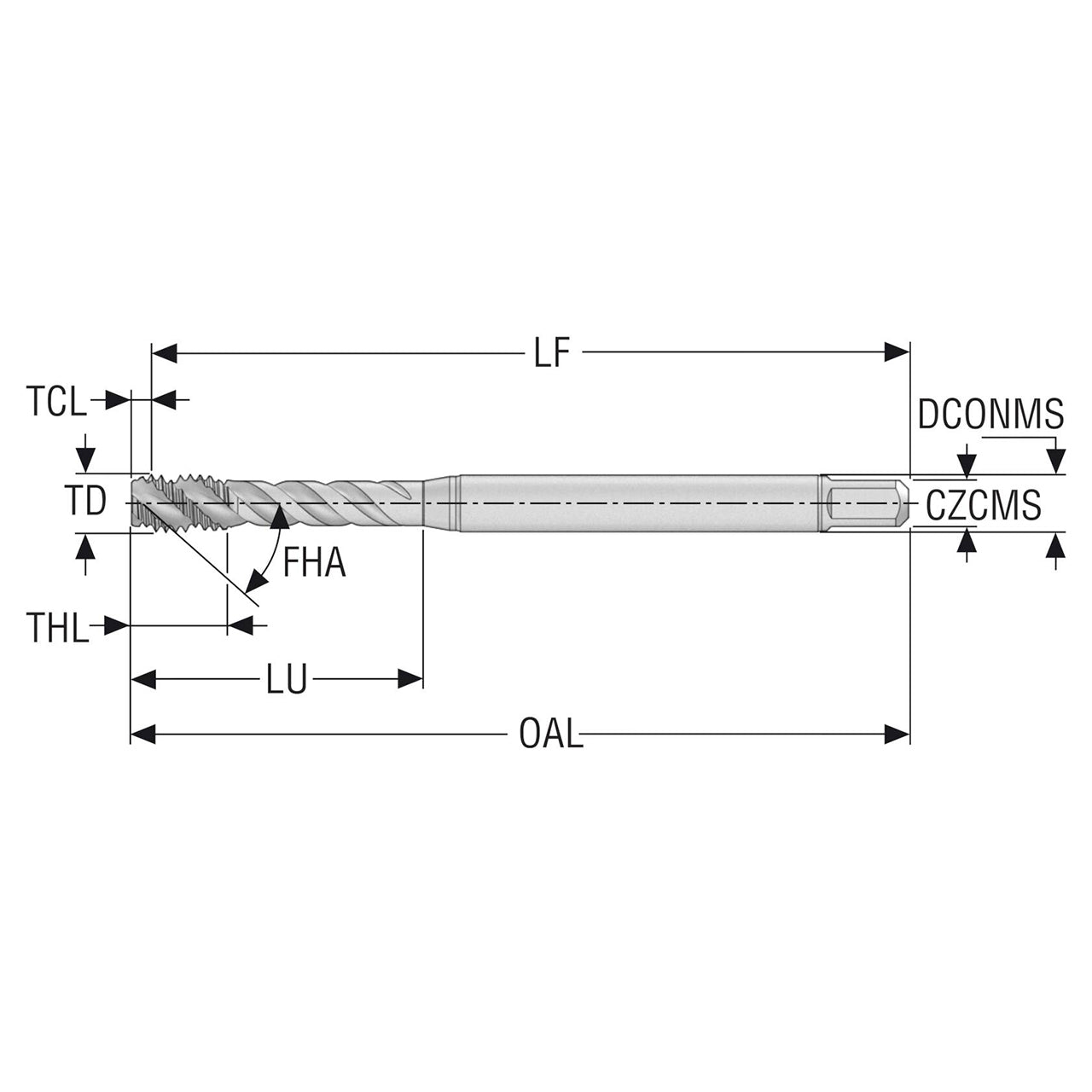

| Manufacturer Part Number | 10139098 |
| Thread Diameter (Decimal Inch) | 0.379" |
| Thread Diameter (mm) | 9.62mm |
| Threading Chamfer Length (Decimal Inch) | 0.087" |
| Threading Chamfer Length (mm) | 2.20mm |
| Tap Chamfer Length (Decimal Inch) | 0.087" |
| Tap Chamfer Length (mm) | 2.20mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.394" |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.394" |
| Shank Diameter (mm) | 10.00mm |
| Functional Length (Decimal Inch) | 3.850" |
| Functional Length (mm) | 97.80mm |
| Usable Length (Decimal Inch) | 1.535" |
| Usable Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (mm) | 100.00mm |
| Thread Length (Decimal Inch) | 0.512" |
| Thread Length (mm) | 13.00mm |
| Thread Diameter Size | EGM8 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.331" |
| Recommended Premachined Hole Diameter (mm) | 8.40mm |
| Connection Size Code | 10.00X8.00 |
| Connection Size Code Machine Side | 10.00X8.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.334" |
| Maximum Premachined Hole Diameter (mm) | 8.48mm |
| Minimum Thread Pitch (Decimal Inch) | 0.049" |
| Minimum Thread Pitch (mm) | 1.25mm |
| Maximum Thread Pitch (Decimal Inch) | 0.049" |
| Maximum Thread Pitch (mm) | 1.25mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6H mod |
| Threading Chamfer Type | E |
| Thread Form Type | EGM |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |

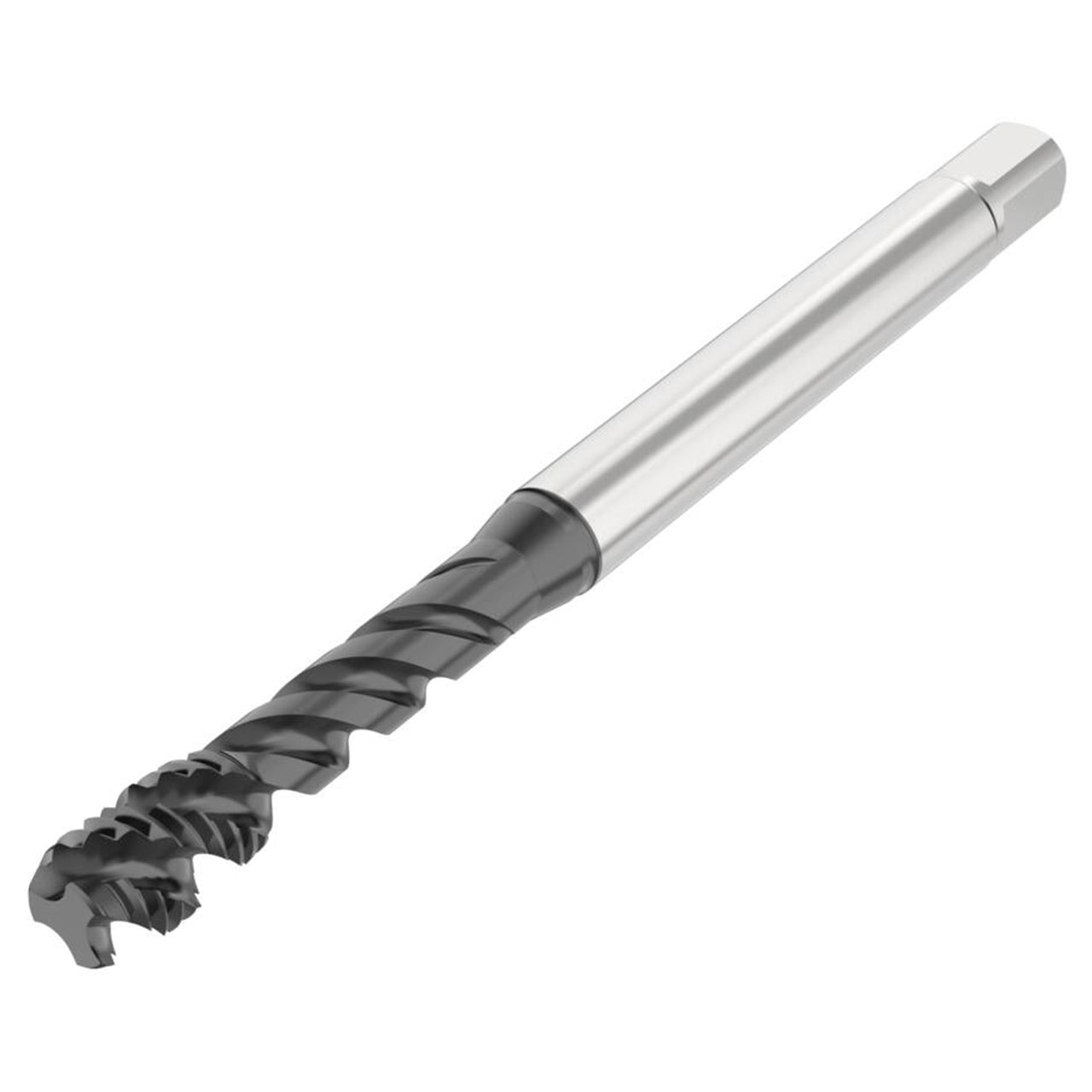

| Product Type | Spiral Flute Tap |
