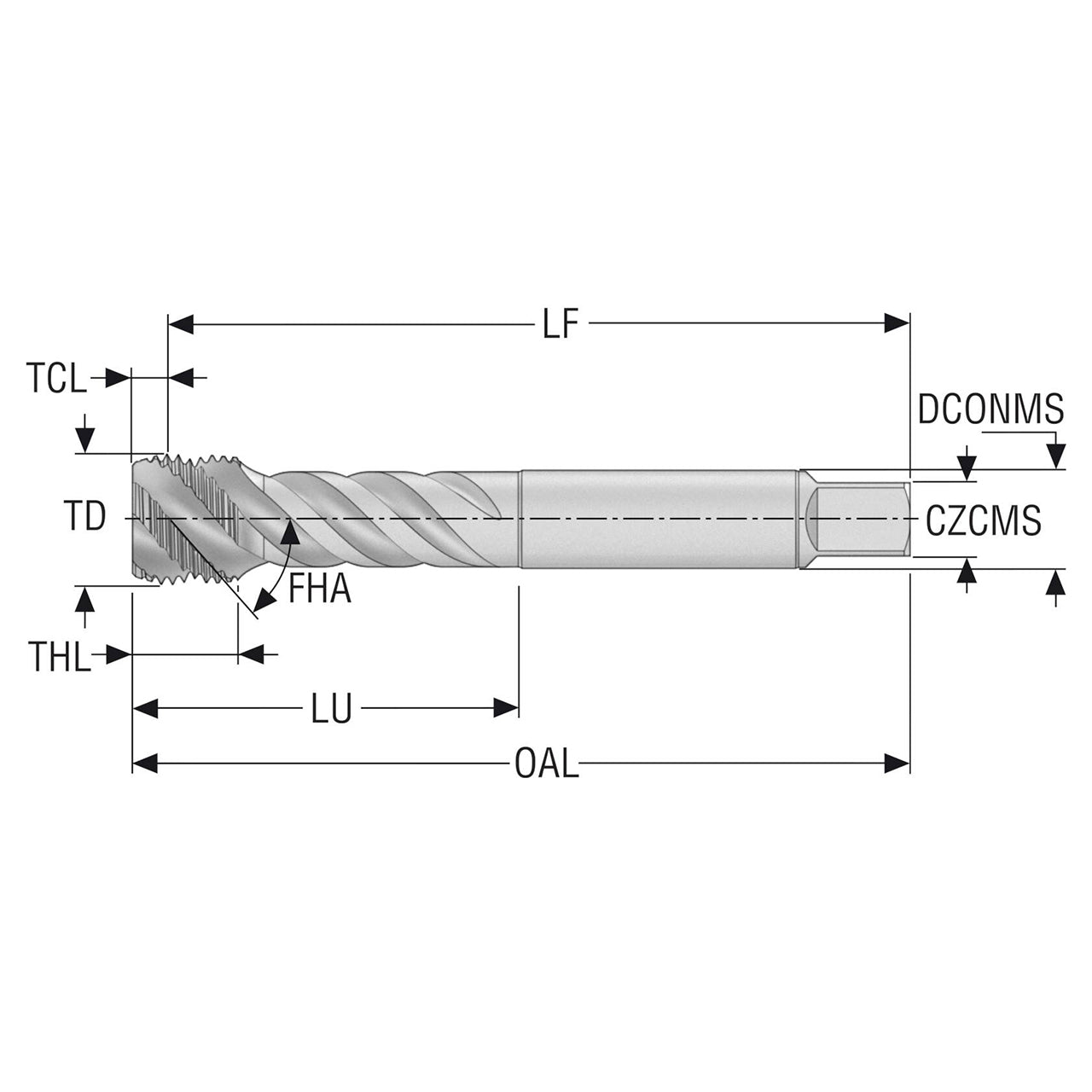

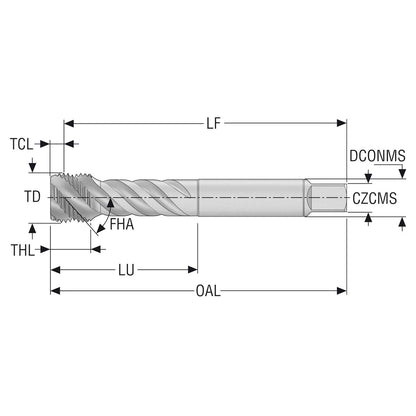

Product Specifications
| Manufacturer Part Number | 10139091 |
| Thread Diameter (Decimal Inch) | 1.309" |
| Thread Diameter (mm) | 33.25mm |
| Threading Chamfer Length (Decimal Inch) | 0.258" |
| Threading Chamfer Length (mm) | 6.56mm |
| Tap Chamfer Length (Decimal Inch) | 0.258" |
| Tap Chamfer Length (mm) | 6.56mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.984" |
| Connection Diameter Machine Side (mm) | 25.00mm |
| Shank Diameter (Decimal Inch) | 0.984" |
| Shank Diameter (mm) | 25.00mm |
| Functional Length (Decimal Inch) | 6.041" |
| Functional Length (mm) | 153.44mm |
| Usable Length (Decimal Inch) | 3.661" |
| Usable Length (mm) | 93.00mm |
| Overall Length (Decimal Inch) | 6.299" |
| Overall Length (mm) | 160.00mm |
| Thread Length (Decimal Inch) | 0.945" |
| Thread Length (mm) | 24.00mm |
| Thread Diameter Size | G1-11 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.211" |
| Recommended Premachined Hole Diameter (mm) | 30.75mm |
| Connection Size Code | 25.00X20.00 |
| Connection Size Code Machine Side | 25.00X20.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.218" |
| Maximum Premachined Hole Diameter (mm) | 30.93mm |
| Minimum Threads Per Inch (mm) | 11.00mm |
| Maximum Threads Per Inch (mm) | 11.00mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | Normal-X |
| Threading Chamfer Type | C |
| Thread Form Type | G |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | British Standard Pipe Tap |
