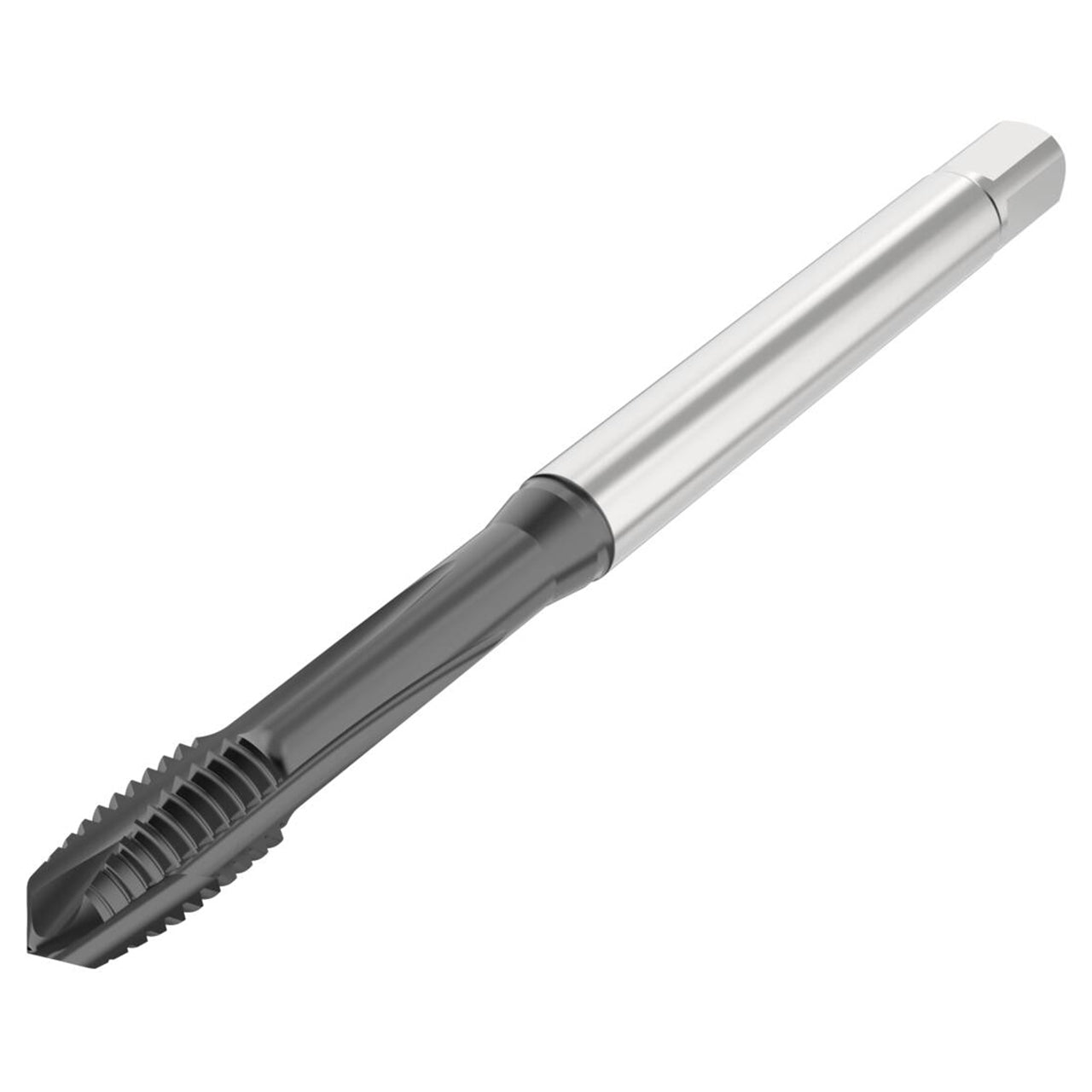

Product Specifications
| Manufacturer Part Number | 10139042 |
| Thread Diameter (Decimal Inch) | 0.125" |
| Thread Diameter (mm) | 3.18mm |
| Threading Chamfer Length (Decimal Inch) | 0.116" |
| Threading Chamfer Length (mm) | 2.94mm |
| Tap Chamfer Length (Decimal Inch) | 0.116" |
| Tap Chamfer Length (mm) | 2.94mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.138" |
| Connection Diameter Machine Side (mm) | 3.50mm |
| Shank Diameter (Decimal Inch) | 0.138" |
| Shank Diameter (mm) | 3.50mm |
| Functional Length (Decimal Inch) | 2.089" |
| Functional Length (mm) | 53.06mm |
| Usable Length (Decimal Inch) | 0.709" |
| Usable Length (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 2.252" |
| Overall Length (mm) | 57.20mm |
| Thread Length (Decimal Inch) | 0.276" |
| Thread Length (mm) | 7.00mm |
| Thread Diameter Size | UNC5-40 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.104" |
| Recommended Premachined Hole Diameter (mm) | 2.65mm |
| Connection Size Code | 3.50X2.70 |
| Connection Size Code Machine Side | 3.50X2.70 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.106" |
| Maximum Premachined Hole Diameter (mm) | 2.70mm |
| Minimum Threads Per Inch (mm) | 40.00mm |
| Maximum Threads Per Inch (mm) | 40.00mm |
| Number of Flute | 3 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 2BX |
| Threading Chamfer Type | B |
| Thread Form Type | UNC |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Straight with spiral point |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |
| Product Type | Straight Flute Tap |
