Product Specifications

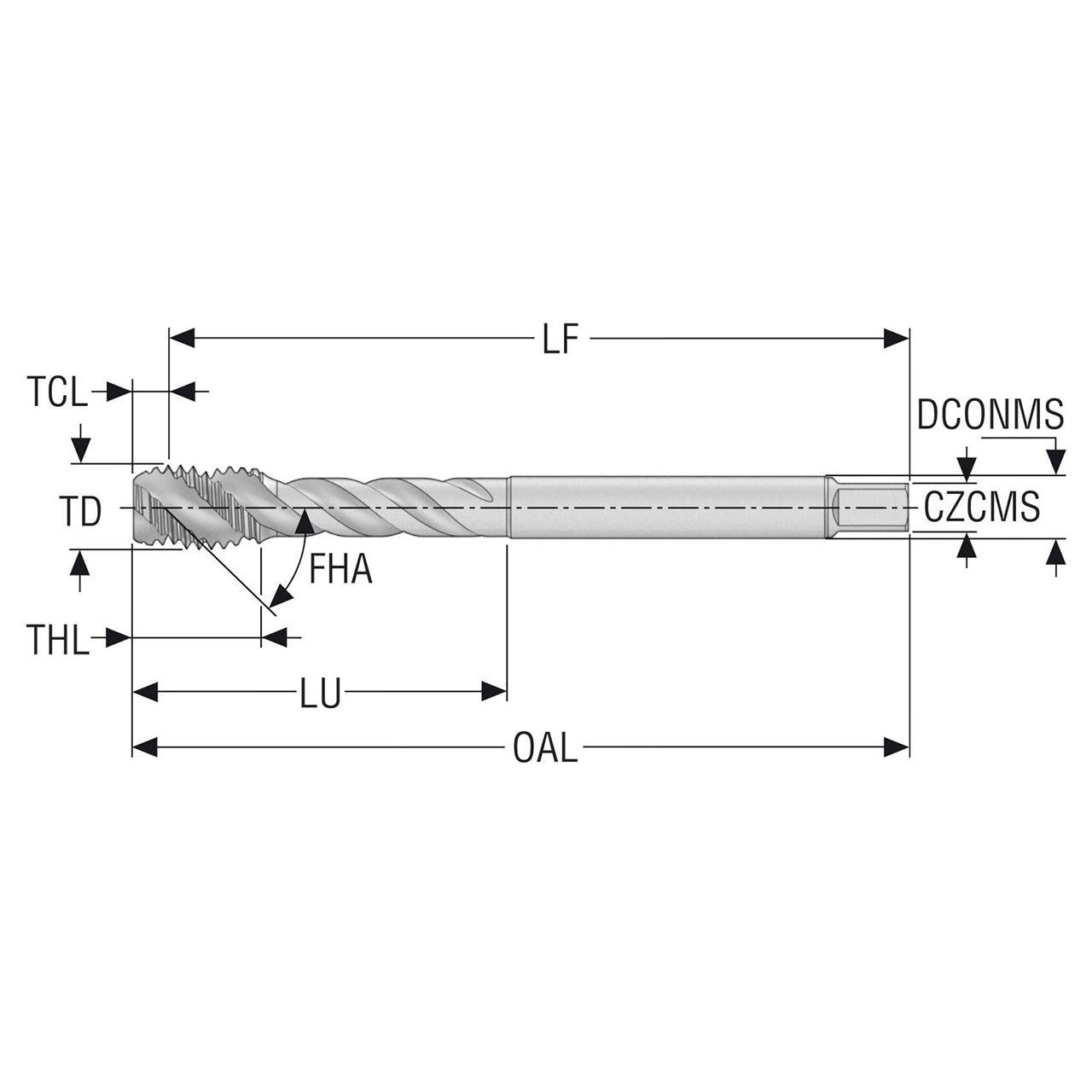

| Manufacturer Part Number | 10138983 |
| Thread Diameter (Decimal Inch) | 1.417" |
| Thread Diameter (mm) | 36.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.395" |
| Threading Chamfer Length (mm) | 10.02mm |
| Tap Chamfer Length (Decimal Inch) | 0.395" |
| Tap Chamfer Length (mm) | 10.02mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.102" |
| Connection Diameter Machine Side (mm) | 28.00mm |
| Shank Diameter (Decimal Inch) | 1.102" |
| Shank Diameter (mm) | 28.00mm |
| Functional Length (Decimal Inch) | 7.480" |
| Functional Length (mm) | 189.98mm |
| Usable Length (Decimal Inch) | 5.158" |
| Usable Length (mm) | 131.00mm |
| Overall Length (Decimal Inch) | 7.874" |
| Overall Length (mm) | 200.00mm |
| Thread Length (Decimal Inch) | 1.575" |
| Thread Length (mm) | 40.00mm |
| Thread Diameter Size | M36 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 1.260" |
| Recommended Premachined Hole Diameter (mm) | 32.00mm |
| Connection Size Code | 28.00X22.00 |
| Connection Size Code Machine Side | 28.00X22.00 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 1.271" |
| Maximum Premachined Hole Diameter (mm) | 32.27mm |
| Minimum Thread Pitch (Decimal Inch) | 0.158" |
| Minimum Thread Pitch (mm) | 4.00mm |
| Maximum Thread Pitch (Decimal Inch) | 0.158" |
| Maximum Thread Pitch (mm) | 4.00mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 4 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 6HX |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-E-PM |
| Coating | TiAIN+WC/C |

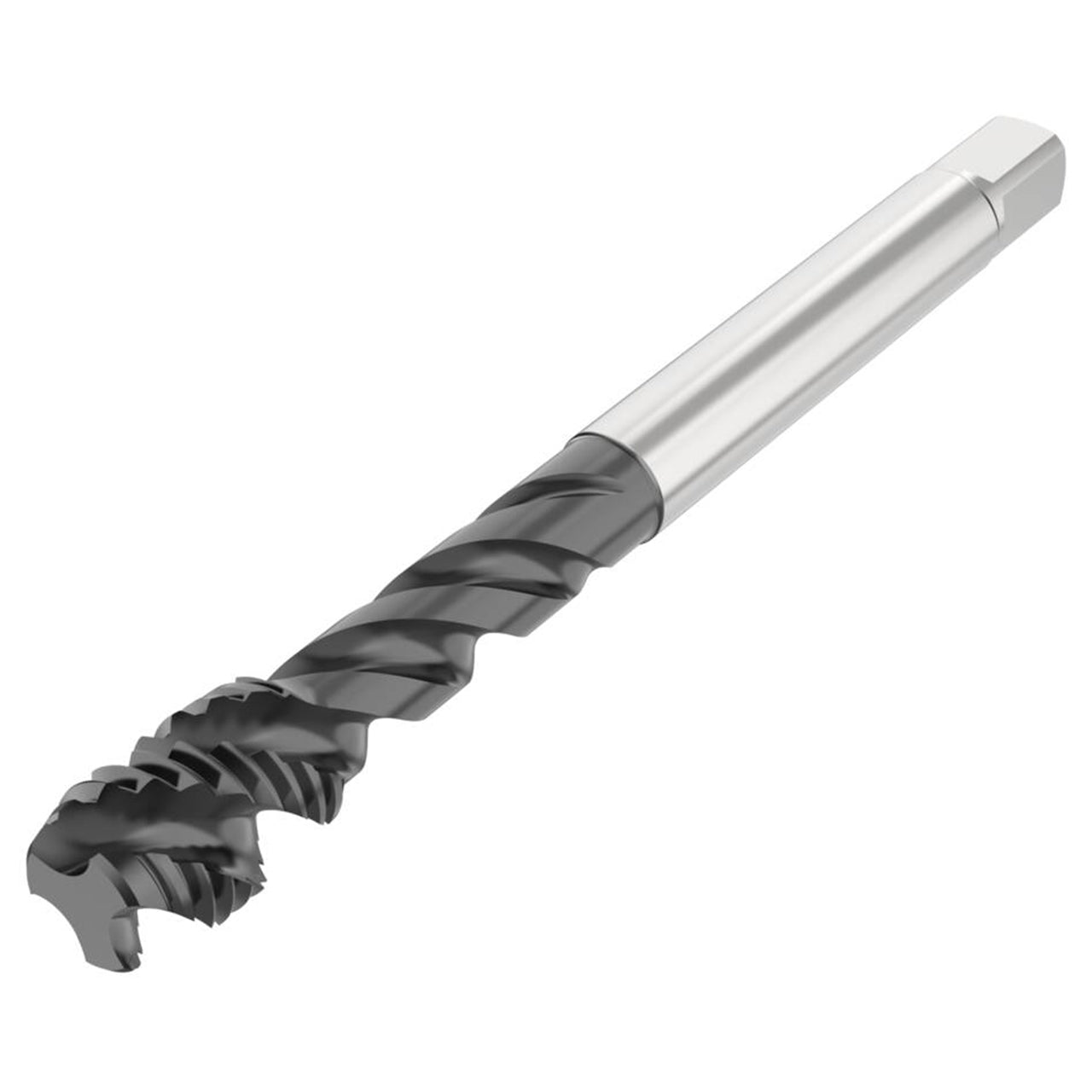

| Product Type | Spiral Flute Tap |
