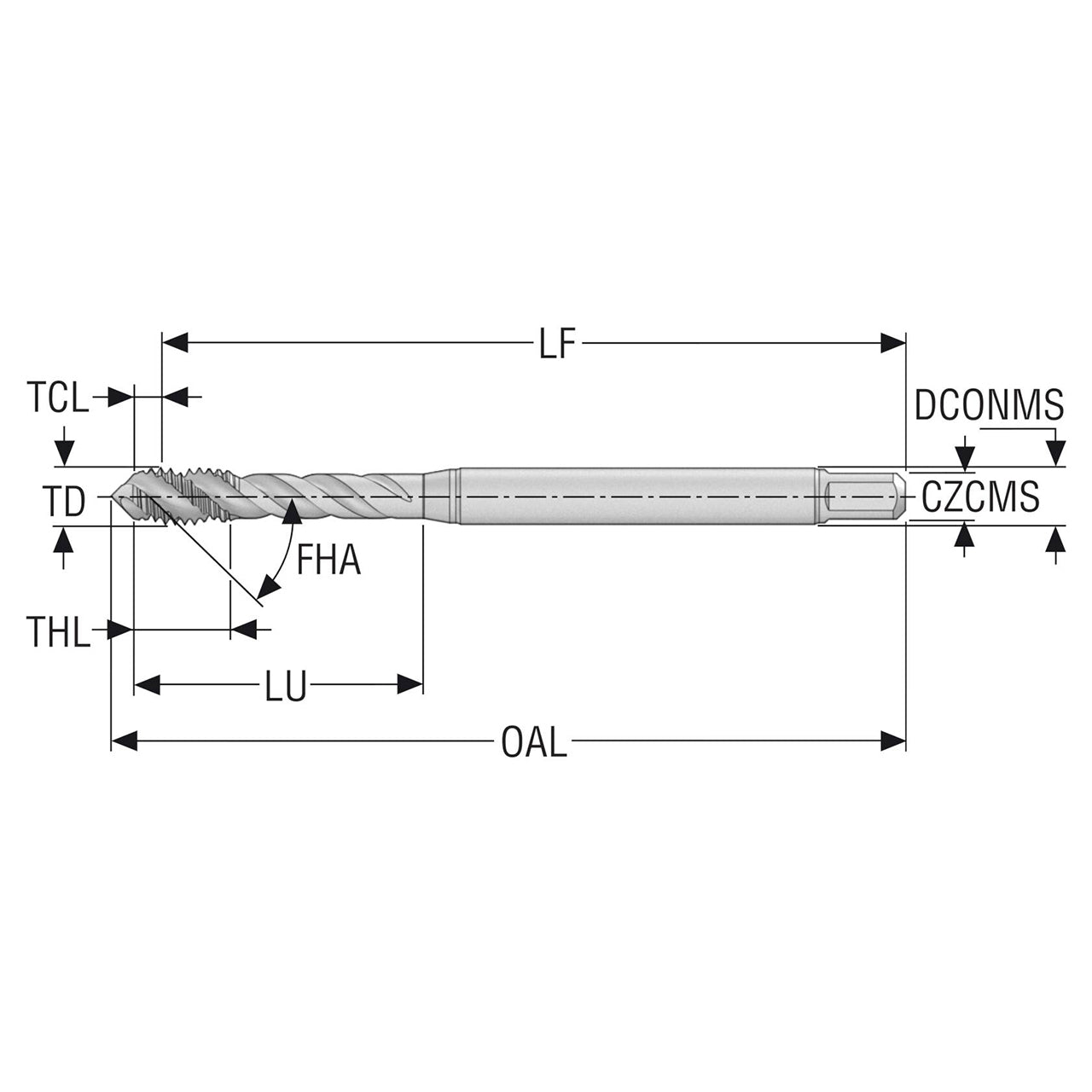

Product Specifications
| Manufacturer Part Number | 10138952 |
| Thread Diameter (Decimal Inch) | 0.039" |
| Thread Diameter (mm) | 1.00mm |
| Threading Chamfer Length (Decimal Inch) | 0.023" |
| Threading Chamfer Length (mm) | 0.59mm |
| Tap Chamfer Length (Decimal Inch) | 0.023" |
| Tap Chamfer Length (mm) | 0.59mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.098" |
| Connection Diameter Machine Side (mm) | 2.50mm |
| Shank Diameter (Decimal Inch) | 0.098" |
| Shank Diameter (mm) | 2.50mm |
| Functional Length (Decimal Inch) | 1.552" |
| Functional Length (mm) | 39.41mm |
| Usable Length (Decimal Inch) | 0.512" |
| Usable Length (mm) | 13.00mm |
| Overall Length (Decimal Inch) | 1.610" |
| Overall Length (mm) | 40.90mm |
| Thread Length (Decimal Inch) | 0.236" |
| Thread Length (mm) | 6.00mm |
| Thread Diameter Size | M1 |
| Recommended Premachined Hole Diameter (Decimal Inch) | 0.030" |
| Recommended Premachined Hole Diameter (mm) | 0.75mm |
| Connection Size Code | 2.50X2.10 |
| Connection Size Code Machine Side | 2.50X2.10 |
| Maximum Premachined Hole Diameter (Decimal Inch) | 0.031" |
| Maximum Premachined Hole Diameter (mm) | 0.79mm |
| Minimum Thread Pitch (Decimal Inch) | 0.010" |
| Minimum Thread Pitch (mm) | 0.25mm |
| Maximum Thread Pitch (Decimal Inch) | 0.010" |
| Maximum Thread Pitch (mm) | 0.25mm |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flute | 2 |
| Shank Type | Cylindrical |
| Thread Tolerance Class | 4H |
| Threading Chamfer Type | C |
| Thread Form Type | M |
| Cutting Direction | Right Hand |
| Cutting Geometry Type | T34 |
| Cutting Geometry Type Technical | Spiral |
| Material | HSS-PM |
| Coating | TiAIN+WC/C |

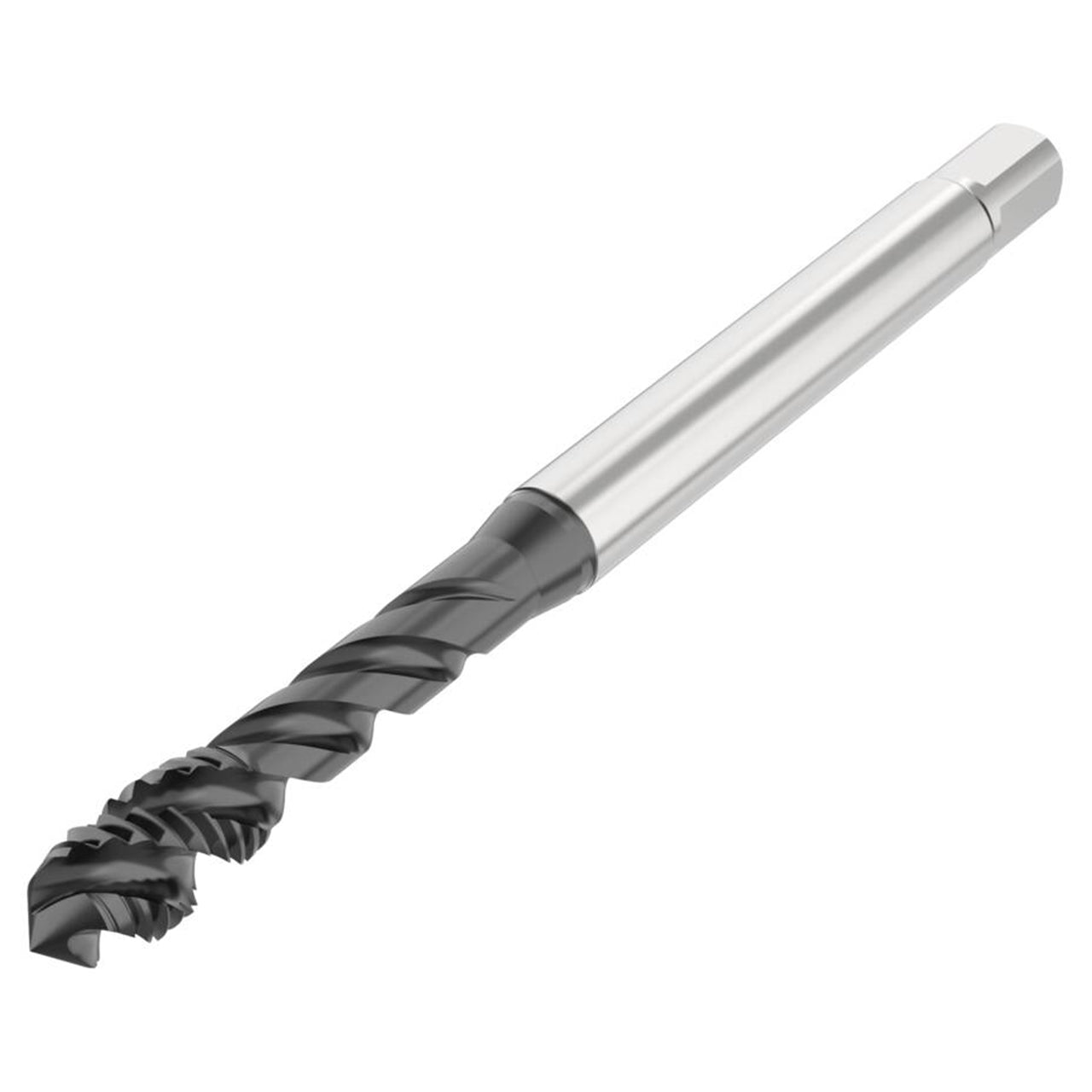

| Product Type | Spiral Flute Tap |
