Product Specifications
| Manufacturer Part Number | 10138074 |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.480" |
| Contact Surface Diameter Workpiece Side (mm) | 12.20mm |
| Functional Length (Decimal Inch) | 2.575" |
| Functional Length (mm) | 65.40mm |
| Length Variant Cataloque | 5 |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Body Half Taper Angle Degree) | 3 Degree |
| Body Half Taper Angle 1 (Degree) | 3 Degree |
| Maximum Rotational Speed (rpm) | 21000 rpm |
| Coolant Supply Property | 1 |
| Connection Size Code | E12 |
| Connection Size Code Workpiece Side | E12 |
| Cutting Item Material Type | STEEL |
| Shank Type | Cylindrical |

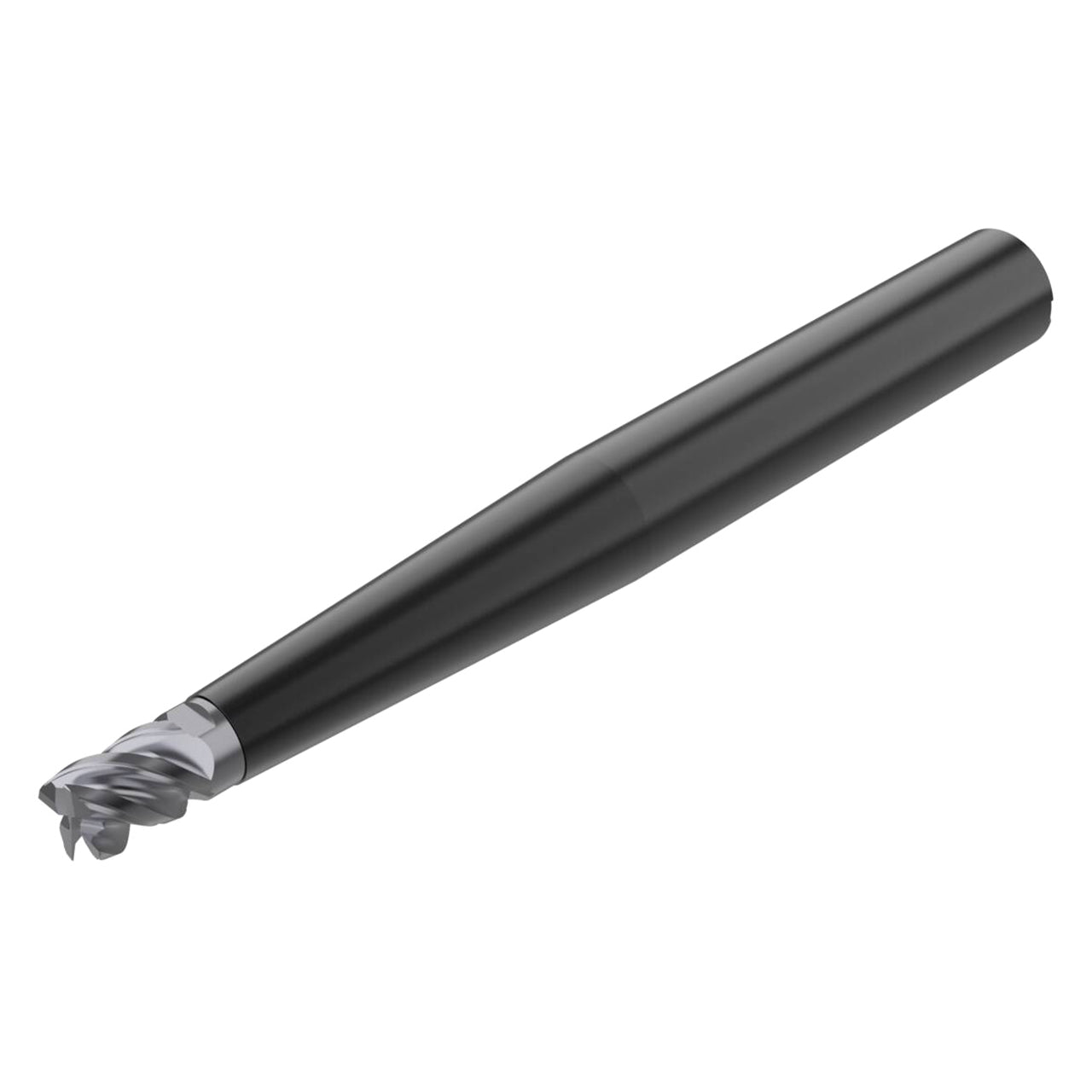

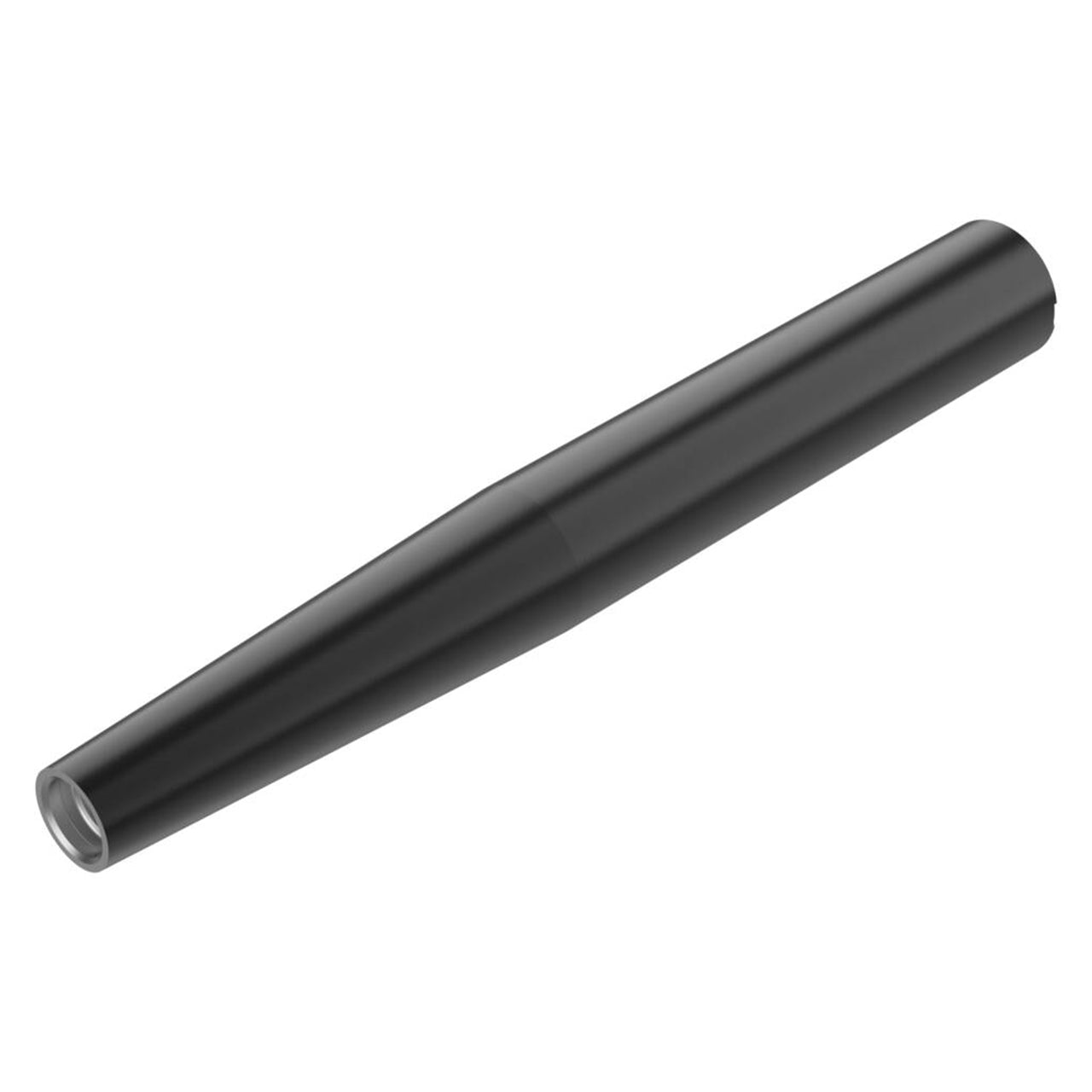

| Product Type | Replaceable Tip Milling Shank |
