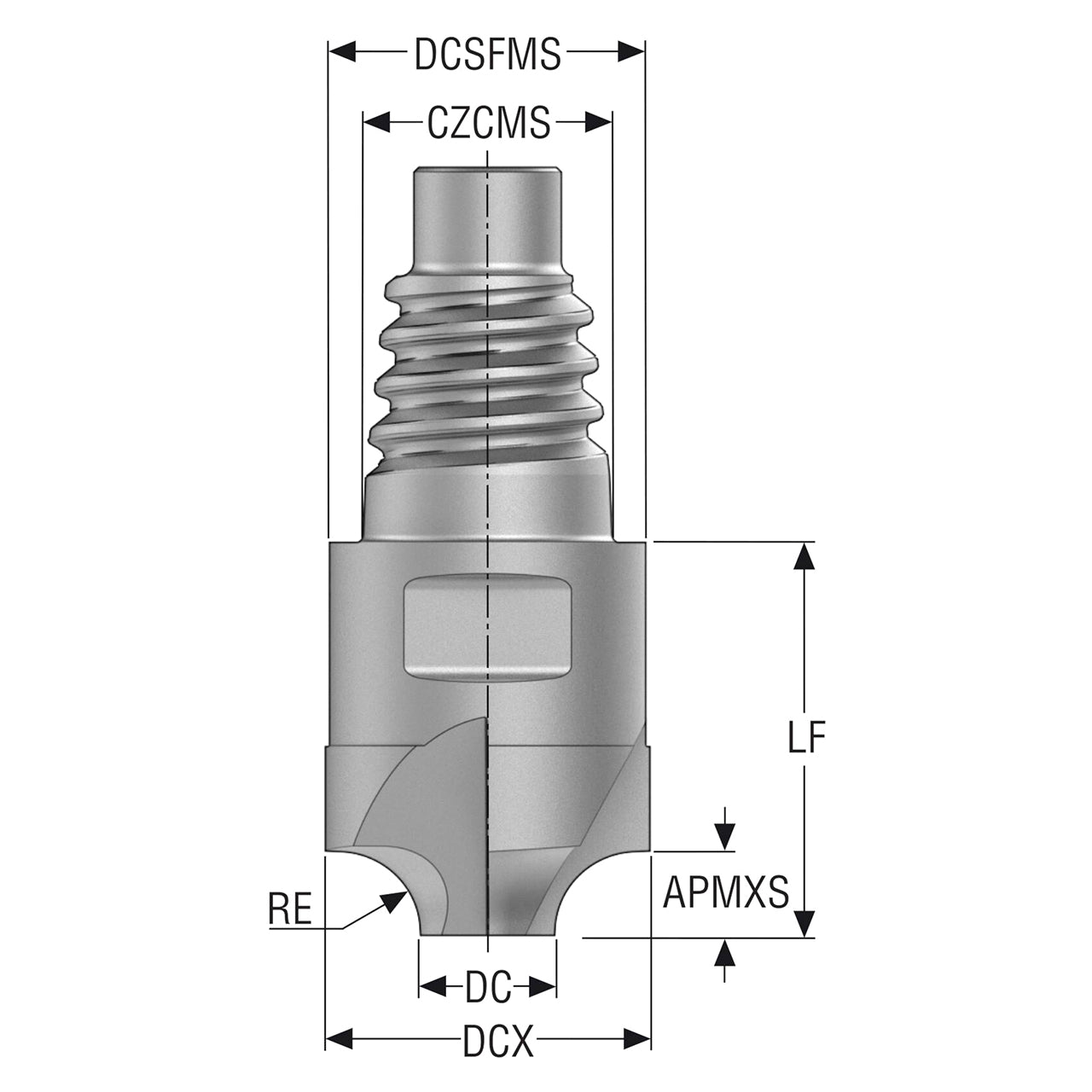

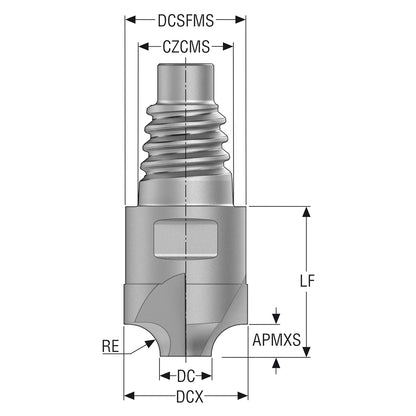

Product Specifications
| Manufacturer Part Number | 10138001 |
| Cutting Diameter (mm) | 8.00mm |
| Cutting Diameter 1 (mm) | 8.00mm |
| Contact Surface Diameter Machine Side (mm) | 19.30mm |
| Lower Cutting Diameter Tolerance (mm) | -0.1 |
| Maximum Cutting Diameter (mm) | 20.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 3.40mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.40mm |
| Corner Radius (mm) | 6.00mm |
| Cutting Edge Effective Length (mm) | 6.00mm |
| Functional Length (mm) | 21.30mm |
| Head Length (mm) | 15.00mm |
| Overall Length (mm) | 40.70mm |
| Maximum Depth of Cut (mm) | 6.00mm |
| Theoretical Cutting Edge Length (mm) | 6.00mm |
| Radial Runout (mm) | 0.02mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | XVK310 |
| Cutting Geometry Type Technical | XVK310 |
| Connection Size Code | E20 |
| Connection Size Code Machine Side | E20 |
| Face Cutting Edge Count | 4 |
| Flute Helix Hand | Right Hand |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 1 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Coating | SIRON-A |

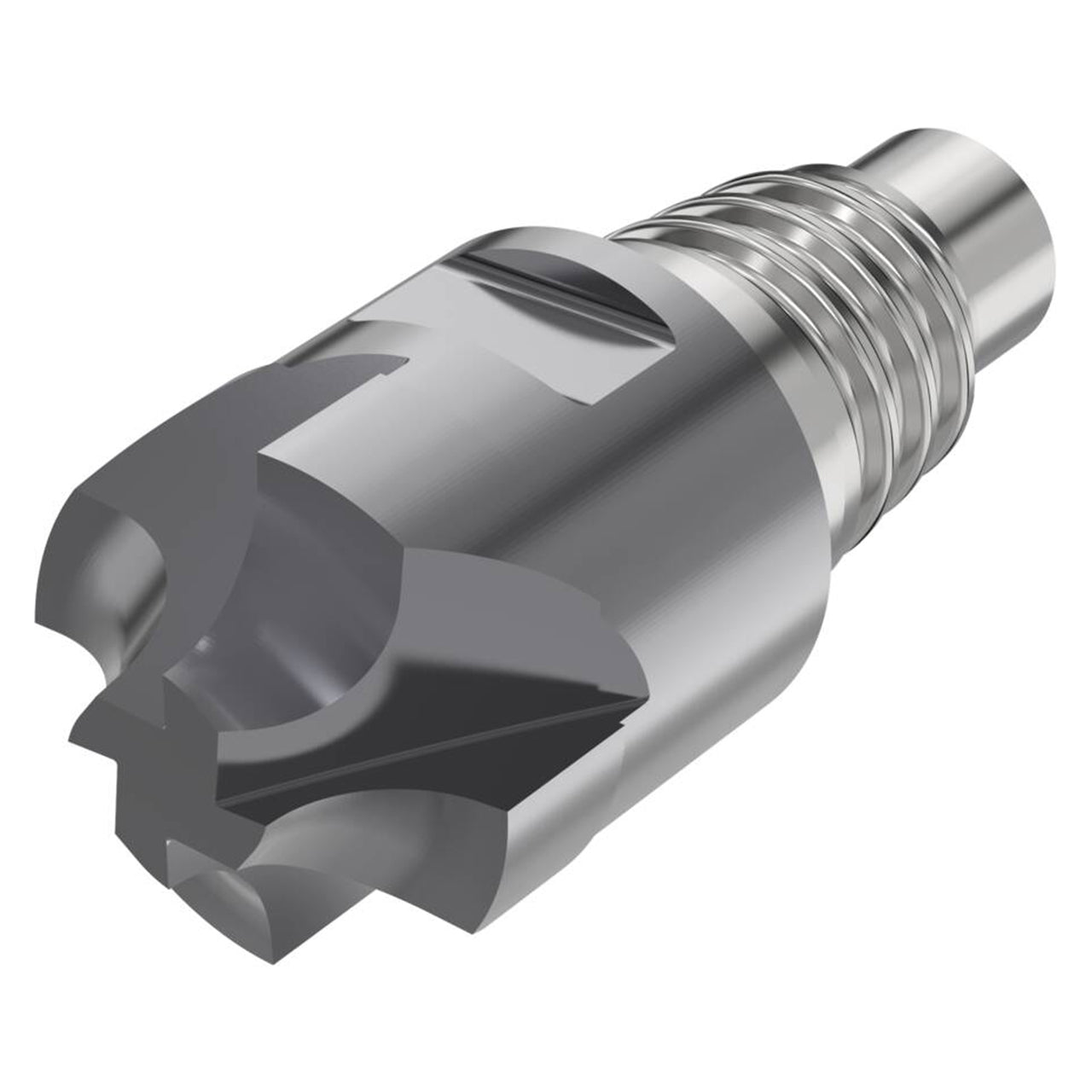

| Product Type | Exchangeable Head Mill |
