Product Specifications
| Manufacturer Part Number | 10137975 |

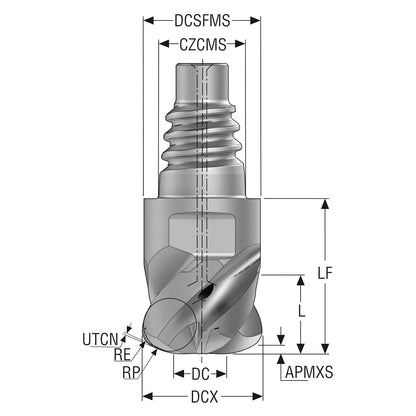

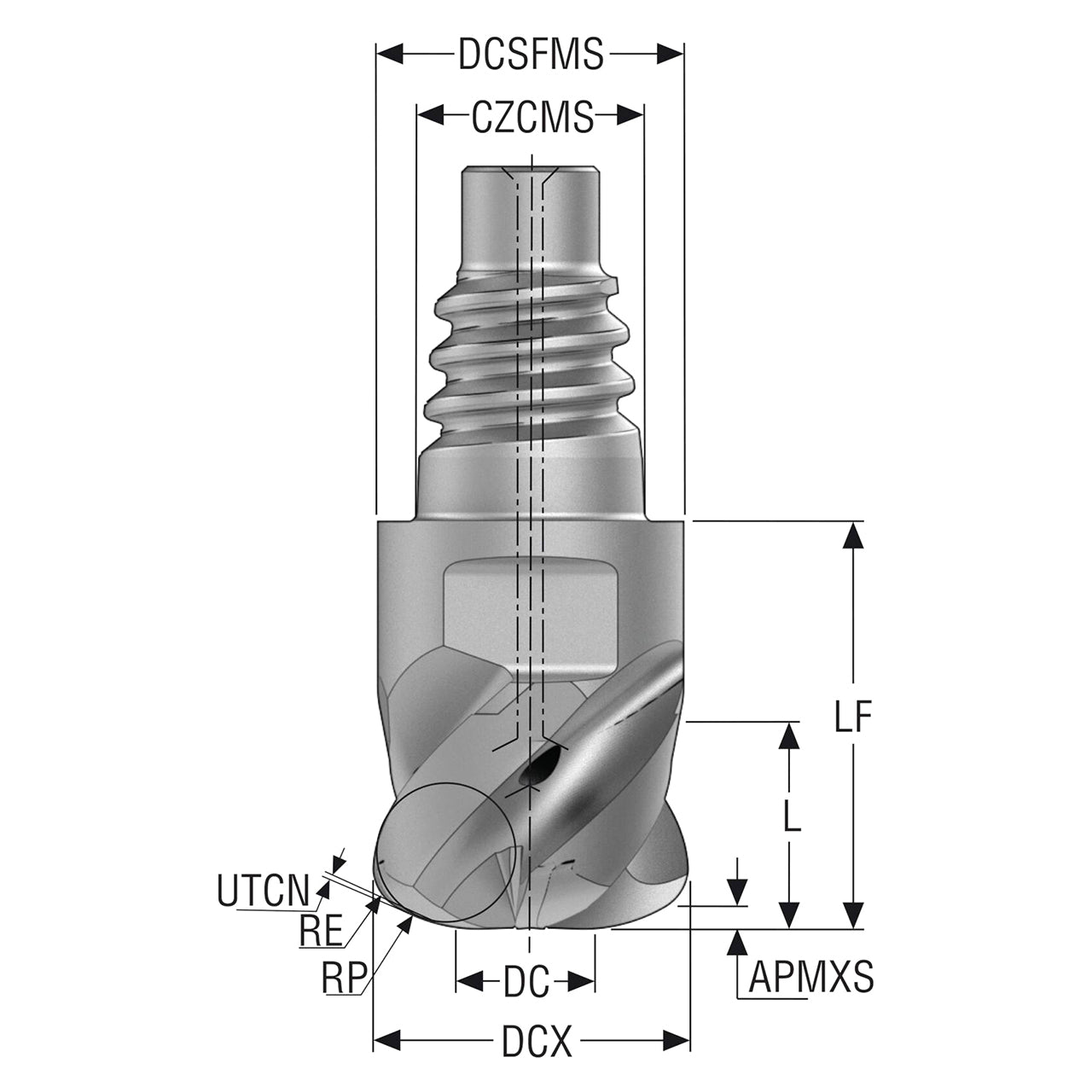

| Cutting Diameter (Decimal Inch) | 0.197" |
| Cutting Diameter (mm) | 5.00mm |
| Cutting Diameter 1 (Decimal Inch) | 0.197" |
| Cutting Diameter 1 (mm) | 5.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 0.484" |
| Contact Surface Diameter Machine Side (mm) | 12.30mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | -0.002 |
| Lower Cutting Diameter Tolerance (mm) | -0.05 |
| Upper Cutting Diameter Tolerance (Decimal Inch) | 0.002 |
| Maximum Cutting Diameter (Decimal Inch) | 0.500" |
| Maximum Cutting Diameter (mm) | 12.70mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.874" |
| Maximum Helical Interpolation Hole Diameter (mm) | 22.21mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.650" |
| Minimum Helical Interpolation Hole Diameter (mm) | 16.51mm |
| Corner Radius (Decimal Inch) | 0.060" |
| Corner Radius (mm) | 1.52mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.315" |
| Cutting Edge Effective Length (mm) | 8.00mm |
| Functional Length (Decimal Inch) | 0.571" |
| Functional Length (mm) | 14.50mm |
| Head Length (Decimal Inch) | 0.394" |
| Head Length (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 1.110" |
| Overall Length (mm) | 28.20mm |
| Maximum Depth of Cut (mm) | 8.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.315" |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.315" |
| Theoretical Cutting Edge Length (mm) | 8.00mm |
| Radial Runout (mm) | 0.02mm |
| Programming Radius (Decimal Inch) | 0.086" |
| Programming Radius (mm) | 2.18mm |
| Uncut Thickness (Decimal Inch) | 0.014 |
| Uncut Thickness (mm) | 0.356 |
| Curved Cutting Edge Radius (mm) | 6.00mm |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | XHF580 |
| Cutting Geometry Type Technical | XHF580 |
| Coolant Supply Property | 1 |
| Connection Size Code | E12 |
| Connection Size Code Machine Side | E12 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 50 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10.5 Degree |
| Rake Radial Angle (Degree) | 10.5 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 1 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Axial Runout (mm) | 0.03mm |
| Coating | SIRON-A |

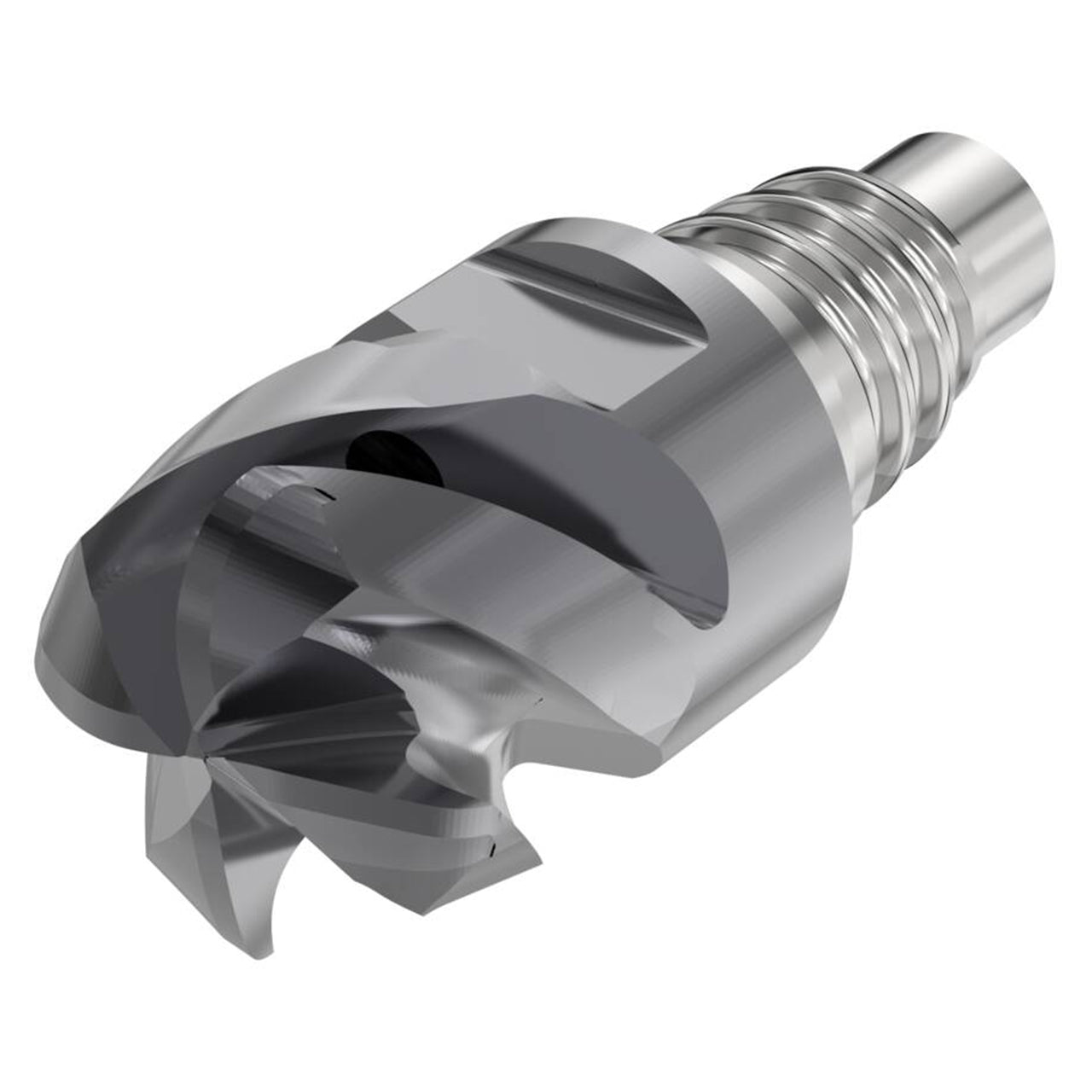

| Product Type | Exchangeable Head Mill |
