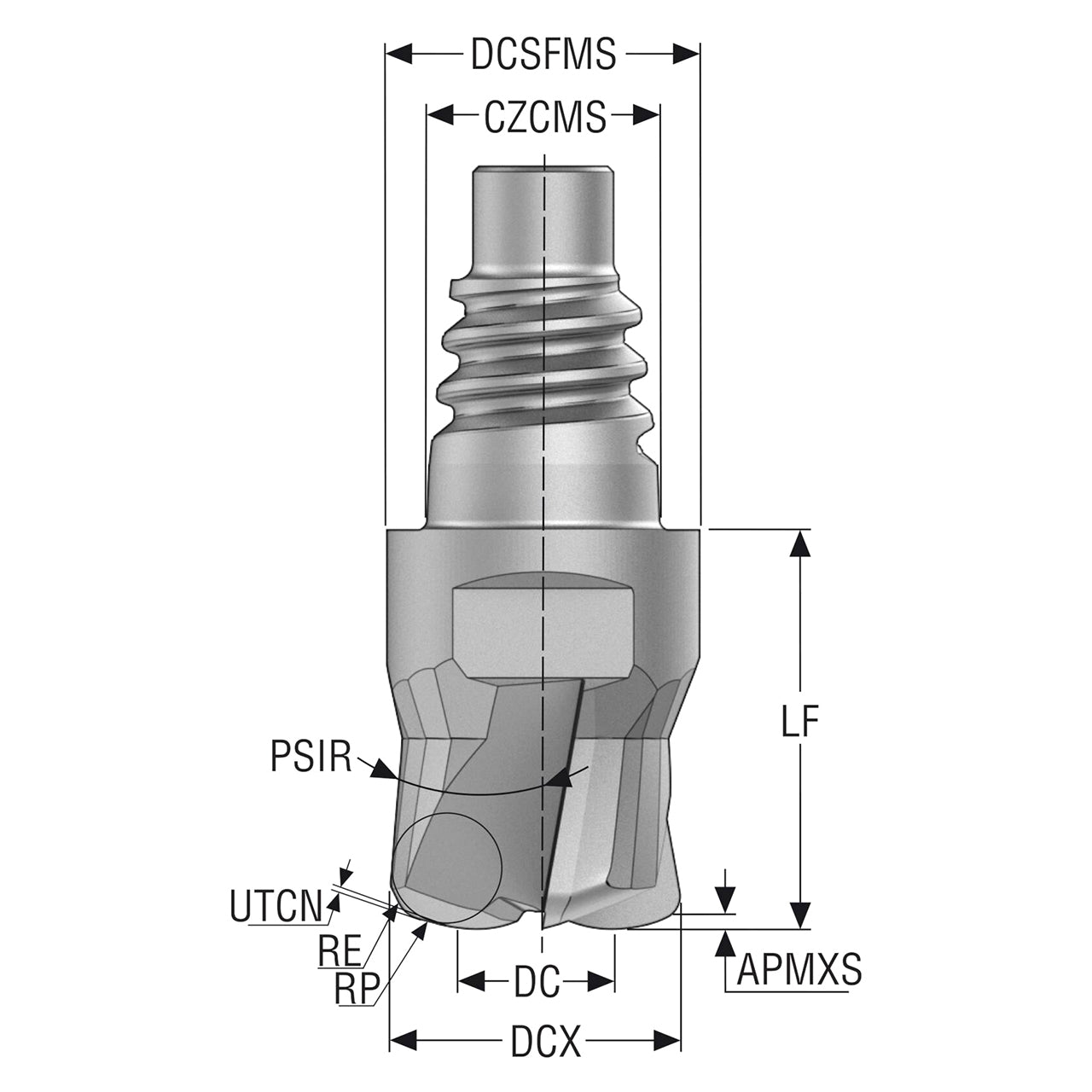

Product Specifications
| Manufacturer Part Number | 10137958 |
| Cutting Diameter (mm) | 6.00mm |
| Cutting Diameter 1 (mm) | 6.00mm |
| Contact Surface Diameter Machine Side (mm) | 11.70mm |
| Lower Cutting Diameter Tolerance (mm) | -0.04 |
| Maximum Cutting Diameter (mm) | 12.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 21.90mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Corner Radius (mm) | 1.00mm |
| Cutting Edge Effective Length (mm) | 6.60mm |
| Functional Length (mm) | 14.40mm |
| Head Length (mm) | 7.00mm |
| Overall Length (mm) | 28.20mm |
| Maximum Depth of Cut (mm) | 6.60mm |
| Theoretical Cutting Edge Length (mm) | 6.60mm |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (mm) | 1.42mm |
| Uncut Thickness (mm) | 0.262 |
| Curved Cutting Edge Radius (mm) | 5.98mm |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | XHF780 |
| Cutting Geometry Type Technical | XHF780 |
| Connection Size Code | E12 |
| Connection Size Code Machine Side | E12 |
| Face Cutting Edge Count | 3 |
| Flute Helix Hand | Right Hand |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Length Variant Cataloque | 1 |
| Number of Flute | 3 |
| Pheripheral Cutting Edge Count | 3 |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Axial Runout (mm) | 0.01mm |
| Coating | HXT |

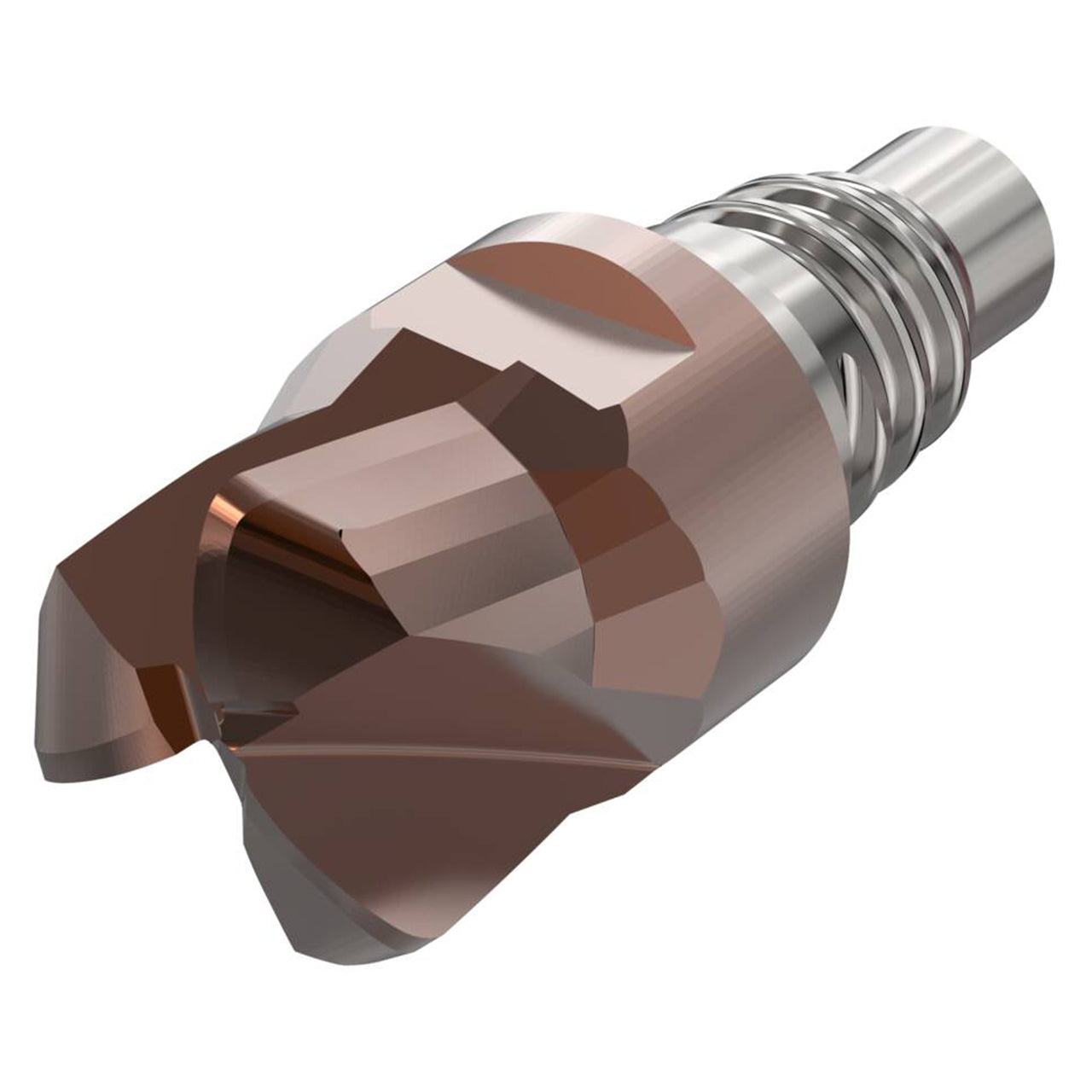

| Product Type | Exchangeable Head Mill |
