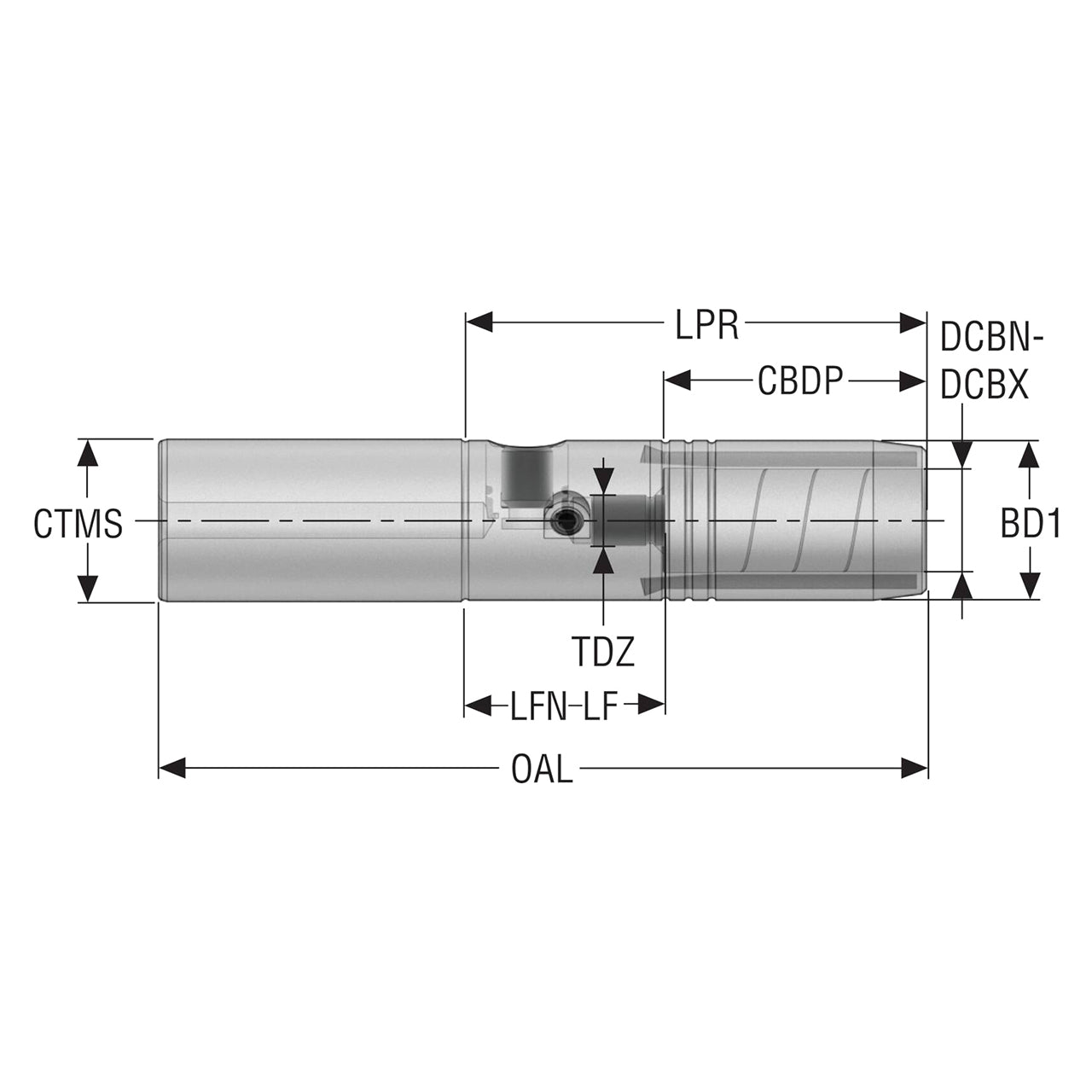

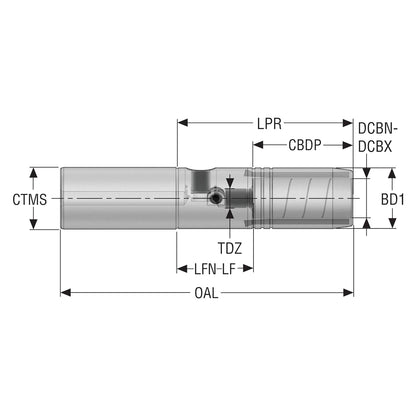

Product Specifications
| Manufacturer Part Number | 10137354 |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Diameter 1 (Decimal Inch) | 1.240" |
| Body Diameter 1 (mm) | 31.50mm |
| Thread Diameter Size | M10x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 51.50mm |
| Functional Length (Decimal Inch) | 1.929" |
| Functional Length (mm) | 49.00mm |
| Minimum Functional Length (Decimal Inch) | 1.535" |
| Minimum Functional Length (mm) | 39.00mm |
| Protruding Length (Decimal Inch) | 3.543" |
| Protruding Length (mm) | 90.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Machine Side Group | Cylindrical shank |

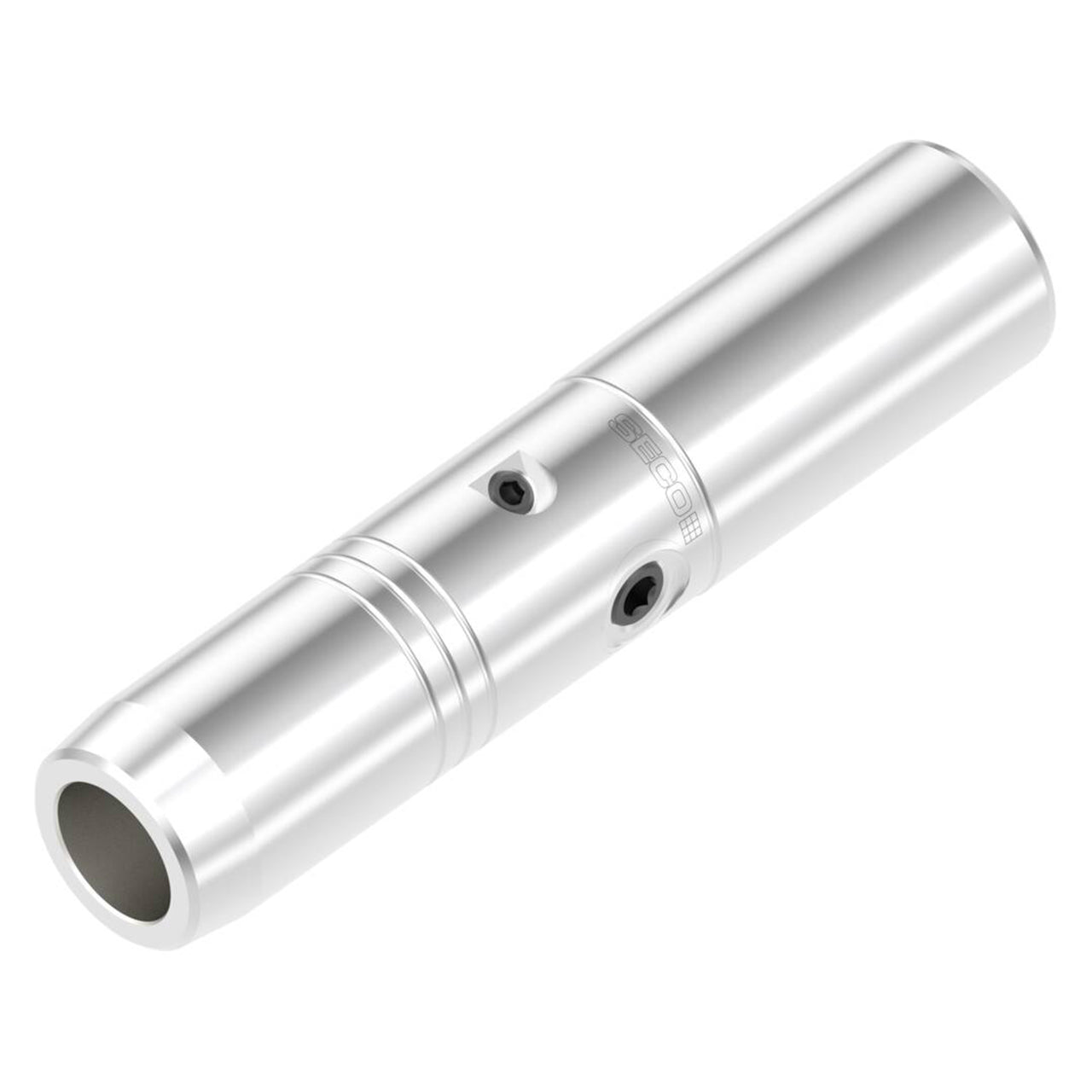

| Product Type | Hydraulic Chuck |
