Product Specifications
| Manufacturer Part Number | 10137345 |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Diameter 1 (Decimal Inch) | 1.339" |
| Body Diameter 1 (mm) | 34.00mm |
| Body Diameter 2 (Decimal Inch) | 1.847" |
| Body Diameter 2 (mm) | 46.90mm |
| Thread Diameter Size | M16x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 52.00mm |
| Body Length (Decimal Inch) | 4.843" |
| Body Length (mm) | 123.00mm |
| Functional Length (Decimal Inch) | 4.331" |
| Functional Length (mm) | 110.00mm |
| Minimum Functional Length (Decimal Inch) | 3.937" |
| Minimum Functional Length (mm) | 100.00mm |
| Protruding Length (Decimal Inch) | 5.906" |
| Protruding Length (mm) | 150.00mm |
| Overall Length (Decimal Inch) | 8.480" |
| Overall Length (mm) | 215.40mm |
| Data Chip Provision | 1 |
| Machine Side Group | BT & BT Taper-face |

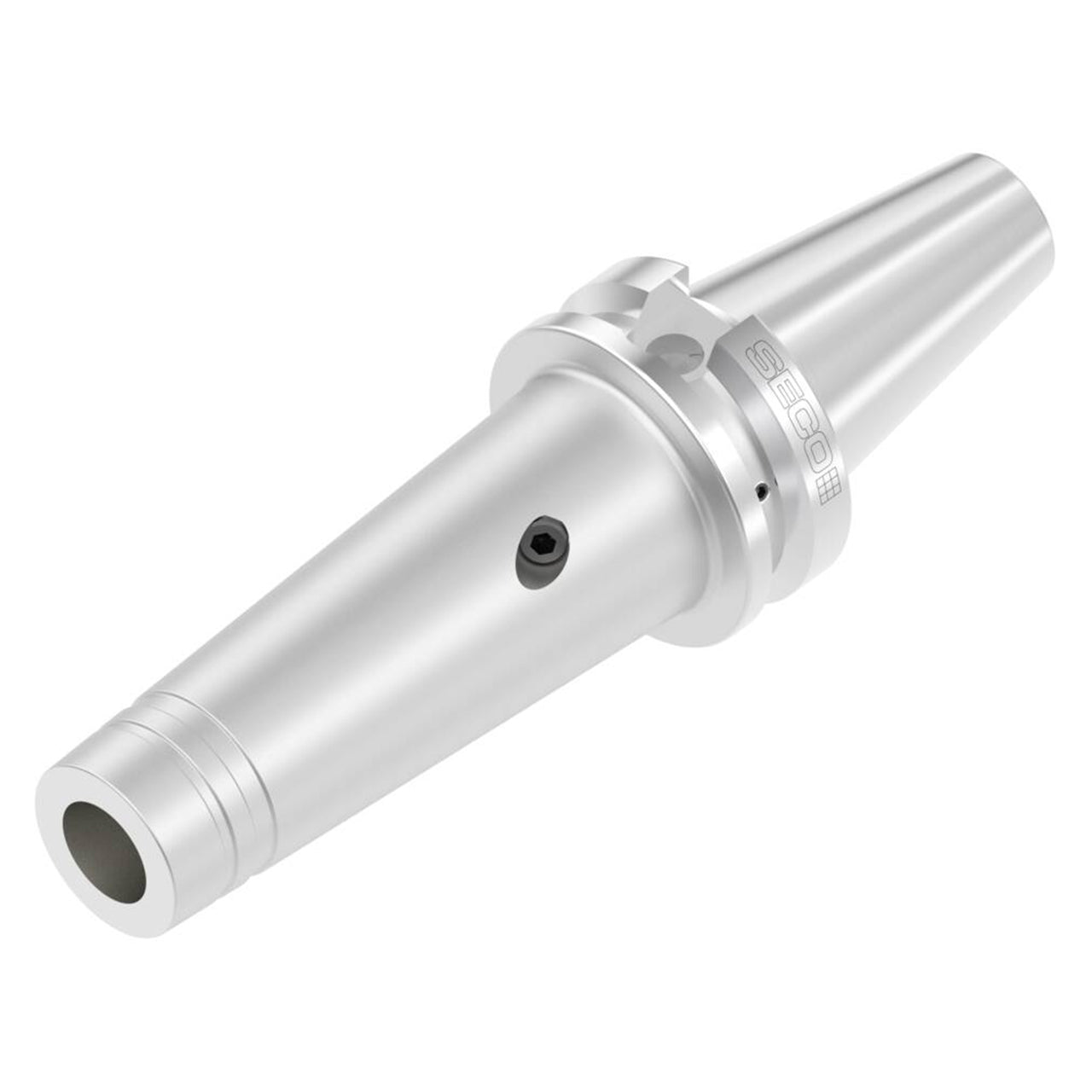

| Product Type | Hydraulic Chuck |
