Product Specifications

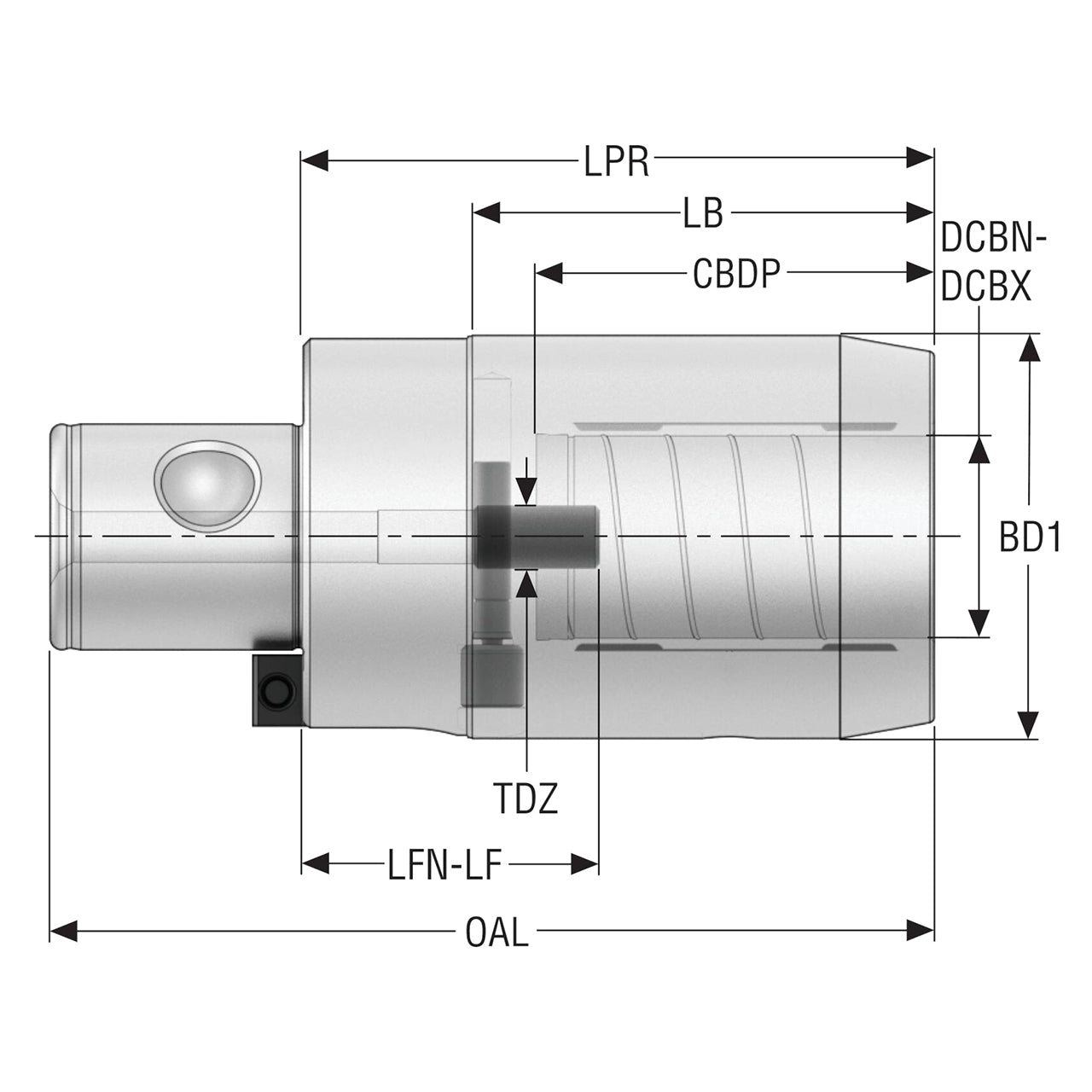

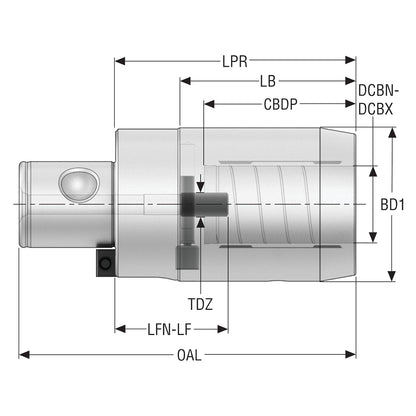

| Manufacturer Part Number | 10137323 |
| Connection Bore Diameter (Decimal Inch) | 0.984" |
| Connection Bore Diameter (mm) | 25.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Minimum Connection Bore Diameter (mm) | 25.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.984" |
| Maximum Connection Bore Diameter (mm) | 25.00mm |
| Body Diameter 1 (Decimal Inch) | 2.284" |
| Body Diameter 1 (mm) | 58.00mm |
| Body Diameter 2 (Decimal Inch) | 2.480" |
| Body Diameter 2 (mm) | 63.00mm |
| Thread Diameter Size | M10x1.5 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 58.00mm |
| Body Length (Decimal Inch) | 2.913" |
| Body Length (mm) | 74.00mm |
| Body Length 1 (Decimal Inch) | 1.969" |
| Body Length 1 (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 2.047" |
| Functional Length (mm) | 52.00mm |
| Minimum Functional Length (Decimal Inch) | 1.654" |
| Minimum Functional Length (mm) | 42.00mm |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Overall Length (Decimal Inch) | 5.512" |
| Overall Length (mm) | 140.00mm |
| Body Half Taper Angle Degree) | 45 Degree |
| Machine Side Group | Graflex |

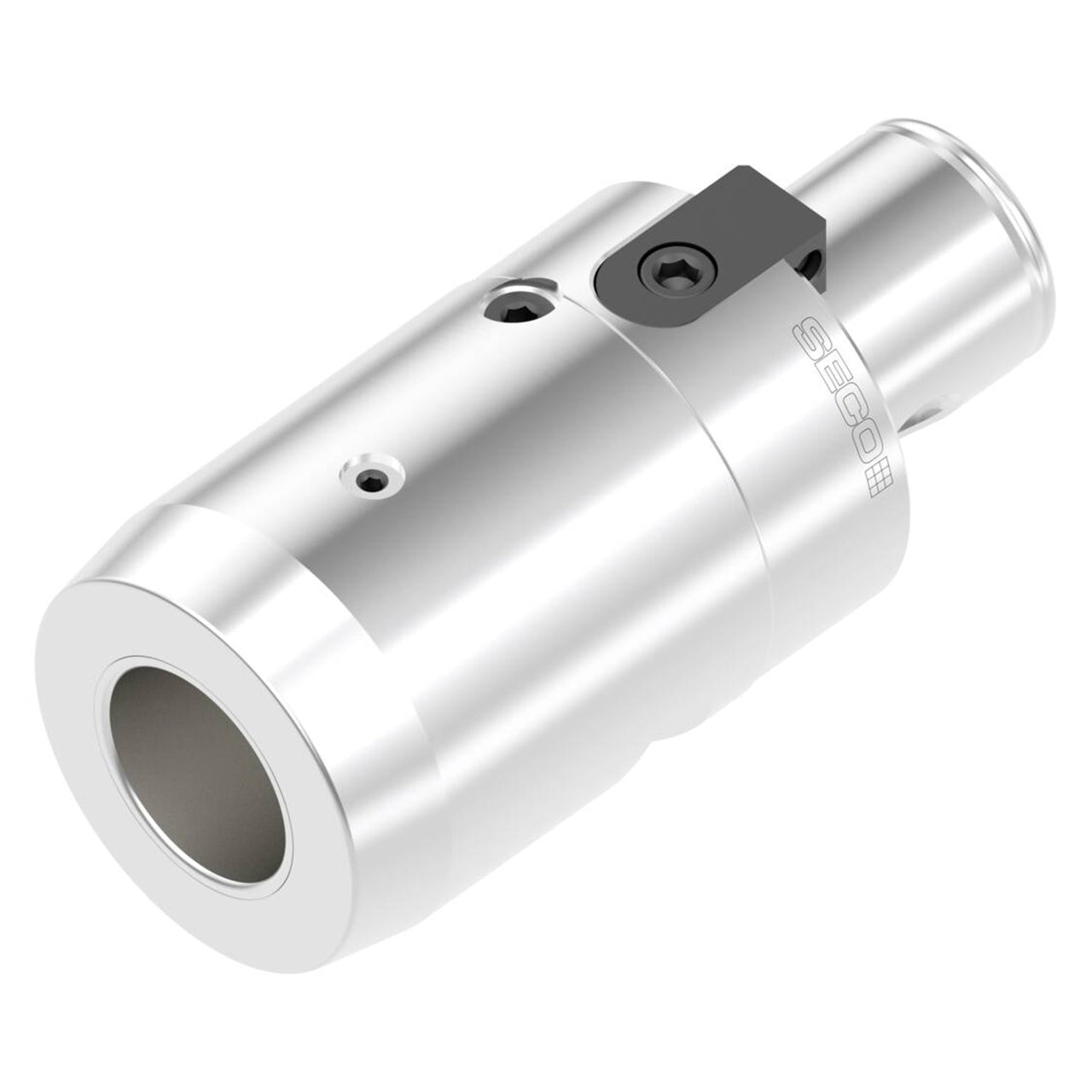

| Product Type | Hydraulic Chuck |
