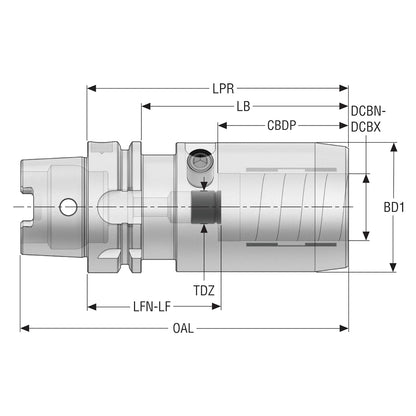

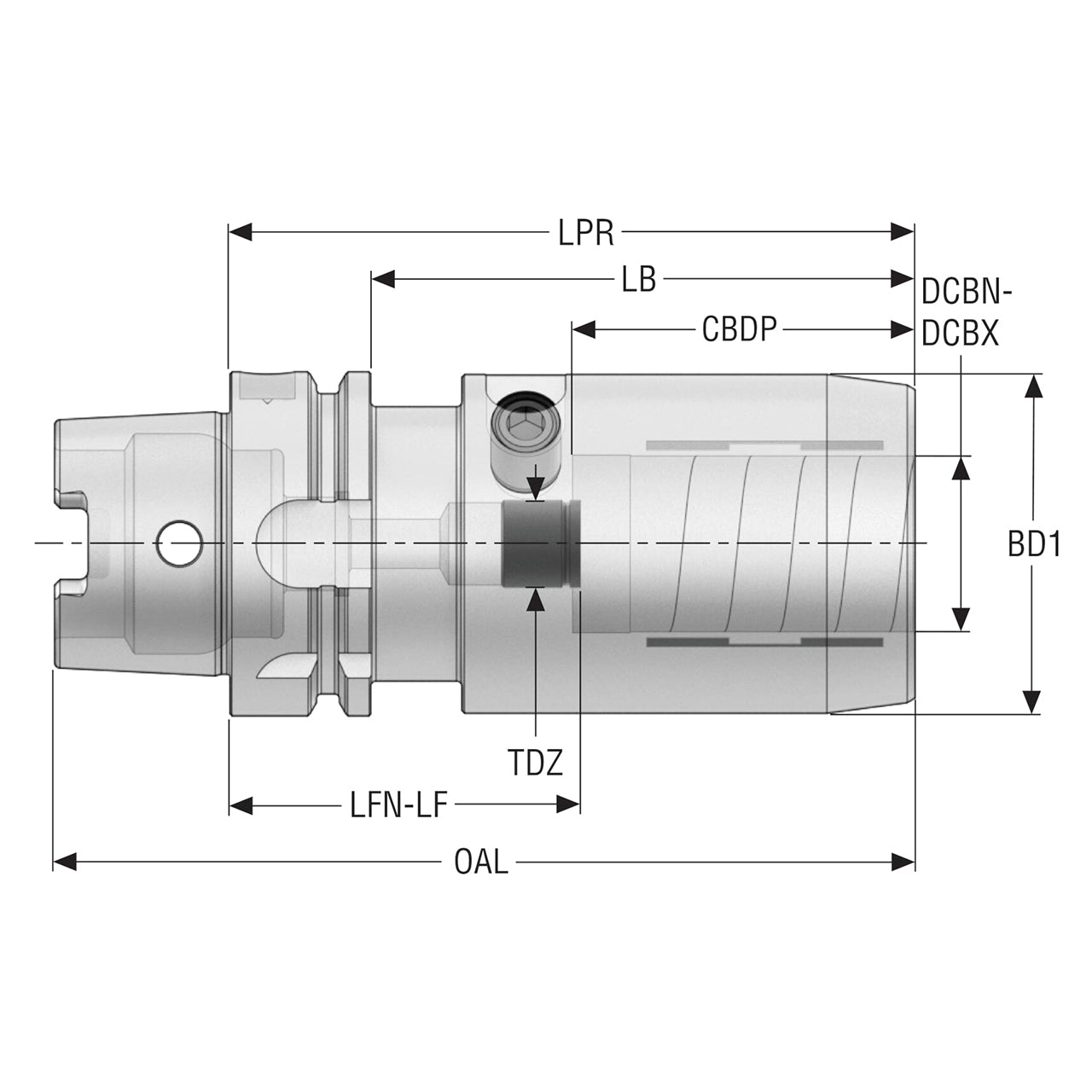

Product Specifications
| Manufacturer Part Number | 10137267 |
| Connection Bore Diameter (Decimal Inch) | 0.787" |
| Connection Bore Diameter (mm) | 20.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Diameter 1 (Decimal Inch) | 1.654" |
| Body Diameter 1 (mm) | 42.00mm |
| Body Diameter 2 (Decimal Inch) | 1.969" |
| Body Diameter 2 (mm) | 50.00mm |
| Thread Diameter Size | M16x1 |
| Connection Bore Depth (Decimal Inch) | 0 |
| Connection Bore Depth (mm) | 52.50mm |
| Body Length (Decimal Inch) | 2.522" |
| Body Length (mm) | 64.05mm |
| Body Length 1 (Decimal Inch) | 1.890" |
| Body Length 1 (mm) | 48.00mm |
| Functional Length (Decimal Inch) | 1.929" |
| Functional Length (mm) | 49.00mm |
| Minimum Functional Length (Decimal Inch) | 1.535" |
| Minimum Functional Length (mm) | 39.00mm |
| Protruding Length (Decimal Inch) | 3.543" |
| Protruding Length (mm) | 90.00mm |
| Overall Length (Decimal Inch) | 4.799" |
| Overall Length (mm) | 121.90mm |
| Body Half Taper Angle Degree) | 20 Degree |
| Data Chip Provision | 1 |
| Machine Side Group | HSK-A & HSK-T/A |

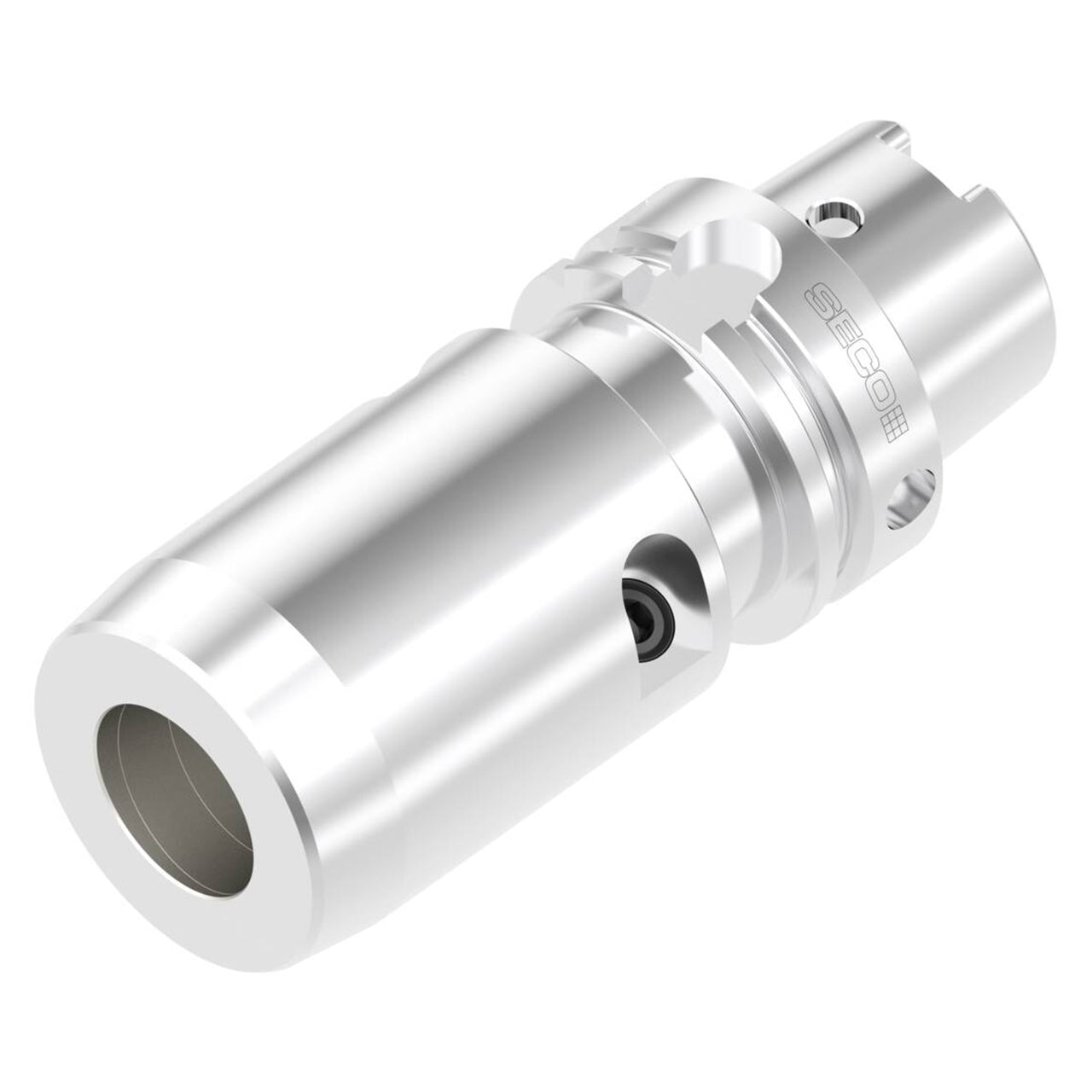

| Product Type | Hydraulic Chuck |
