Product Specifications
| Manufacturer Part Number | 10134800 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Diameter (mm) | 38.10mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.457" |
| Contact Surface Diameter Machine Side (mm) | 37.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.563" |
| Maximum Cutting Diameter (mm) | 39.70mm |
| Thread Diameter Size | M20 |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.354" |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -10.5 Degree |
| Rake Radial Angle (Degree) | -10.5 Degree |
| Rake Orthogonal Angle (Degree) | -10.77 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 88 Degree |
| Maximum Rotational Speed (rpm) | 12600 rpm |
| Insert Shape Code | S |
| Shank Type | Combimaster |

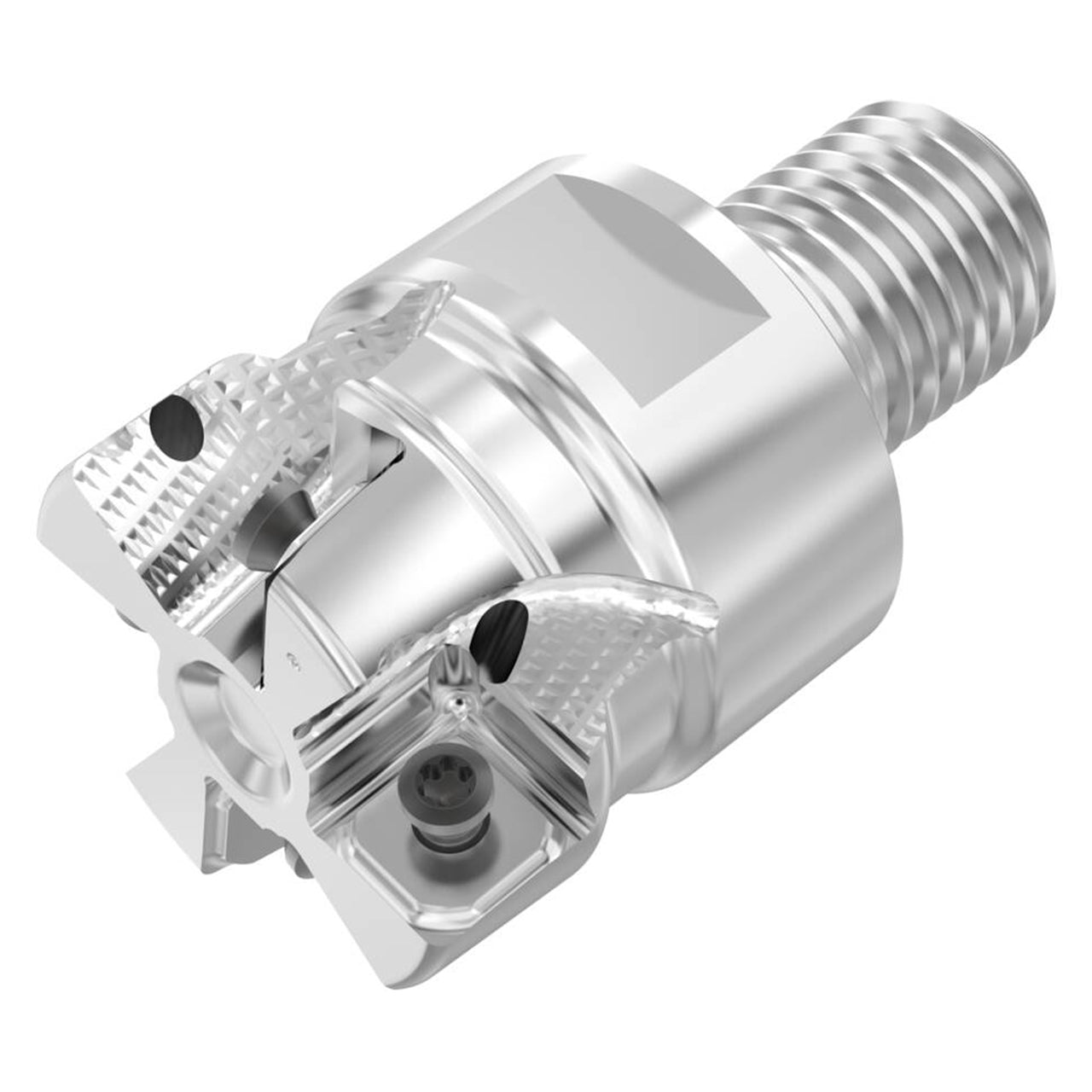

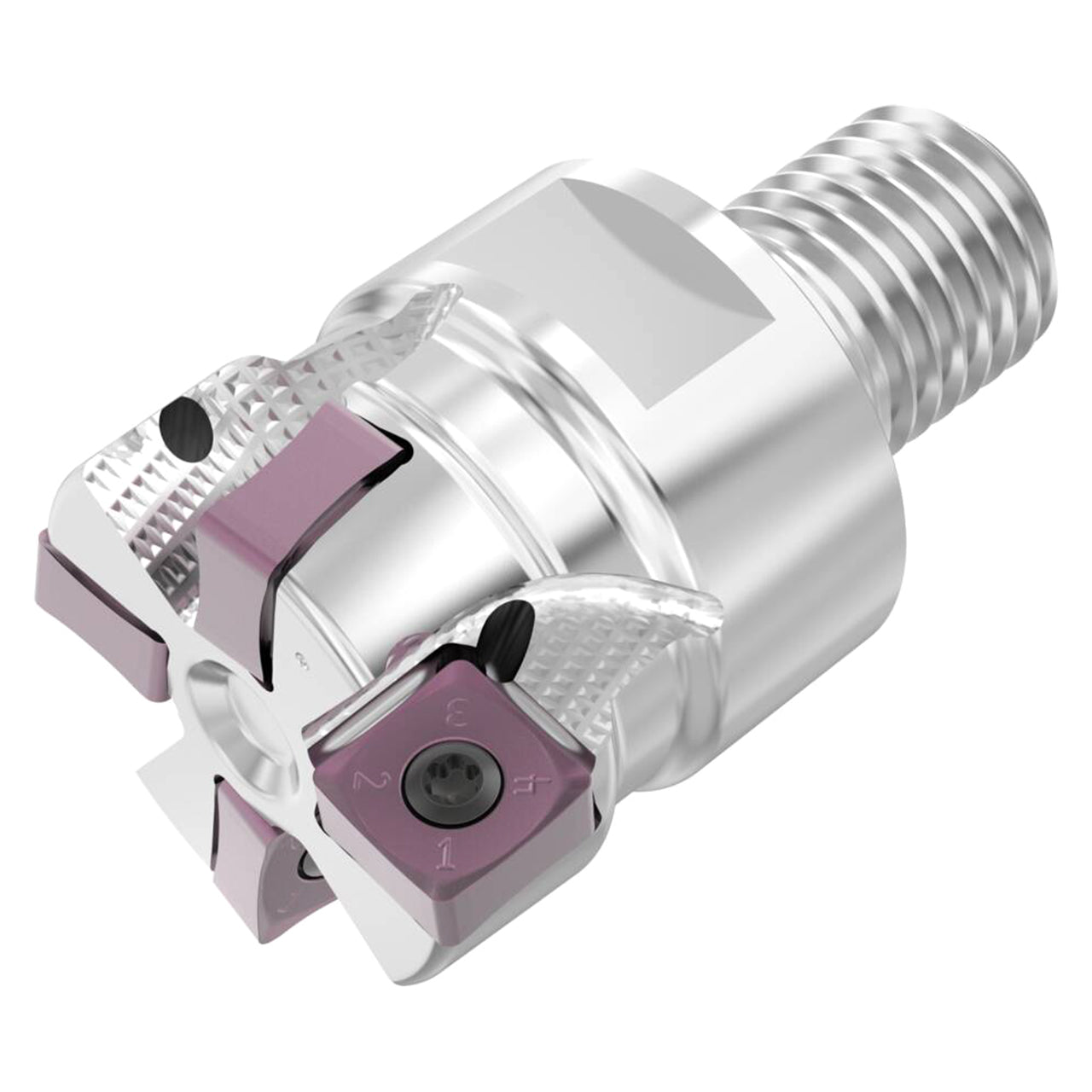

| Product Type | Indexable Chamfer & Angle Face Mill |
