Product Specifications
| Manufacturer Part Number | 10134793 |
| Cutting Diameter (Decimal Inch) | 3.000" |
| Cutting Diameter (mm) | 76.20mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.441" |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 3.046" |
| Maximum Cutting Diameter (mm) | 77.36mm |
| Functional Length (Decimal Inch) | 1.969" |
| Functional Length (mm) | 50.00mm |
| Maximum Depth of Cut (mm) | 9.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.354" |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.70mm |
| Keyway Width (Decimal Inch) | 0.382" |
| Keyway Width (mm) | 9.70mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -8.22 Degree |
| Axial Rake Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 88 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 88 Degree |
| Maximum Rotational Speed (rpm) | 9900 rpm |
| Insert Shape Code | S |
| Shank Type | Arbor |

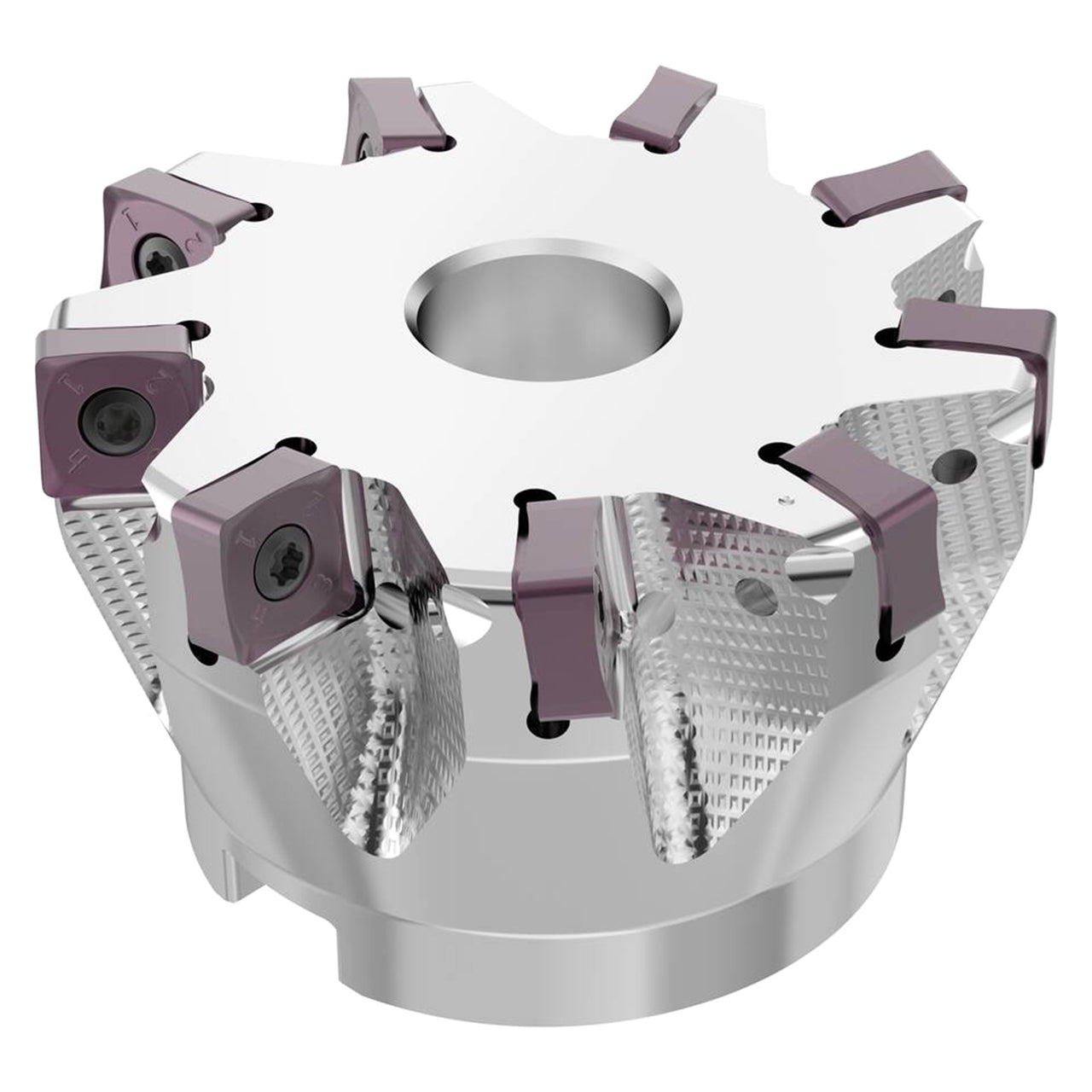

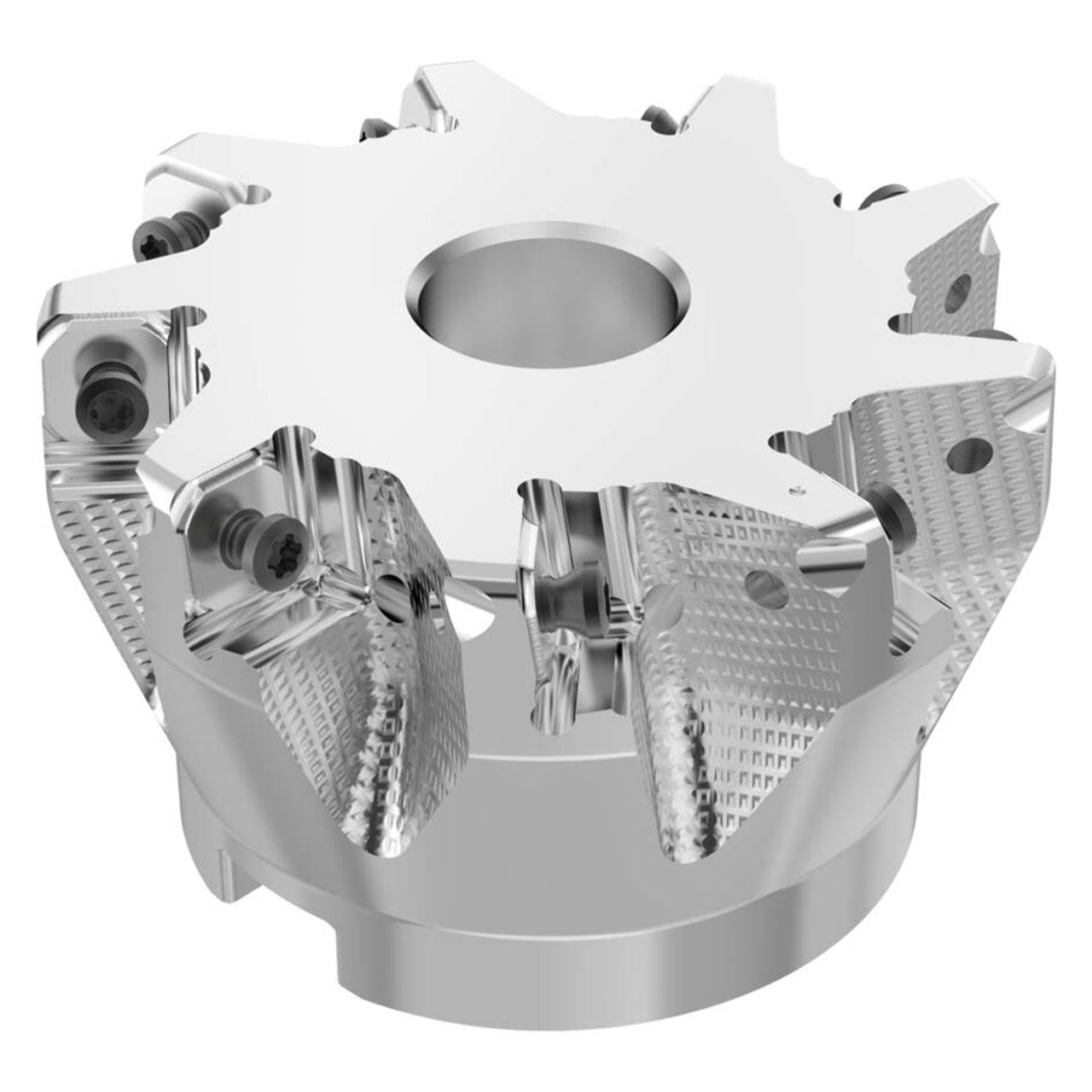

| Product Type | Indexable Chamfer & Angle Face Mill |
