Product Specifications
| Manufacturer Part Number | 10127528 |

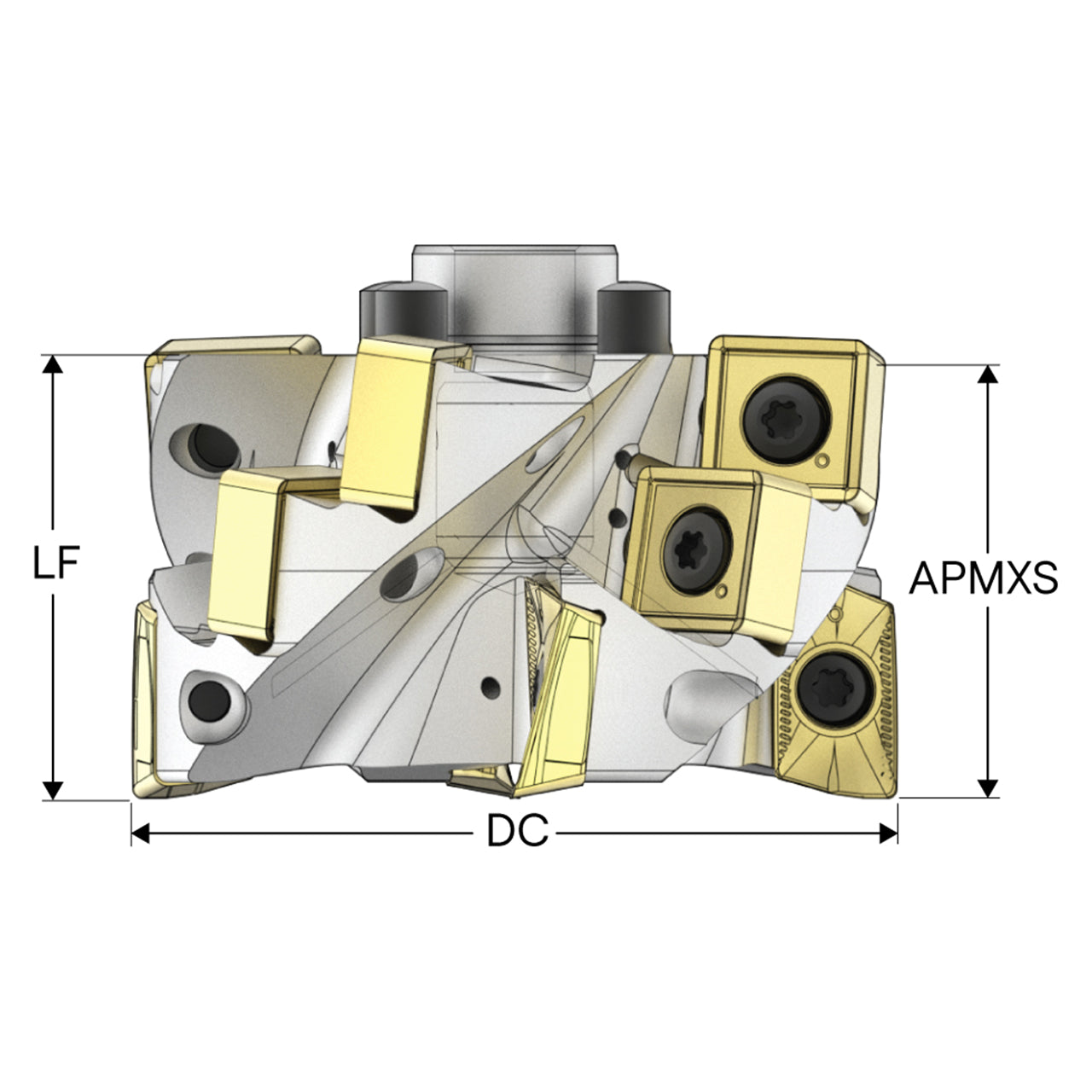

| Depth of Cut Maximum in Feed Direction Side (mm) | 36.00mm |
| Coolant Supply Property | 1 |
| Cutting Diameter (mm) | 80.00mm |
| Functional Length (mm) | 36.50mm |
| Number of Flutes | 5 |
| Peripheral Effective Cutting Edge Count | 5 |
| Product Series | R220.82 |

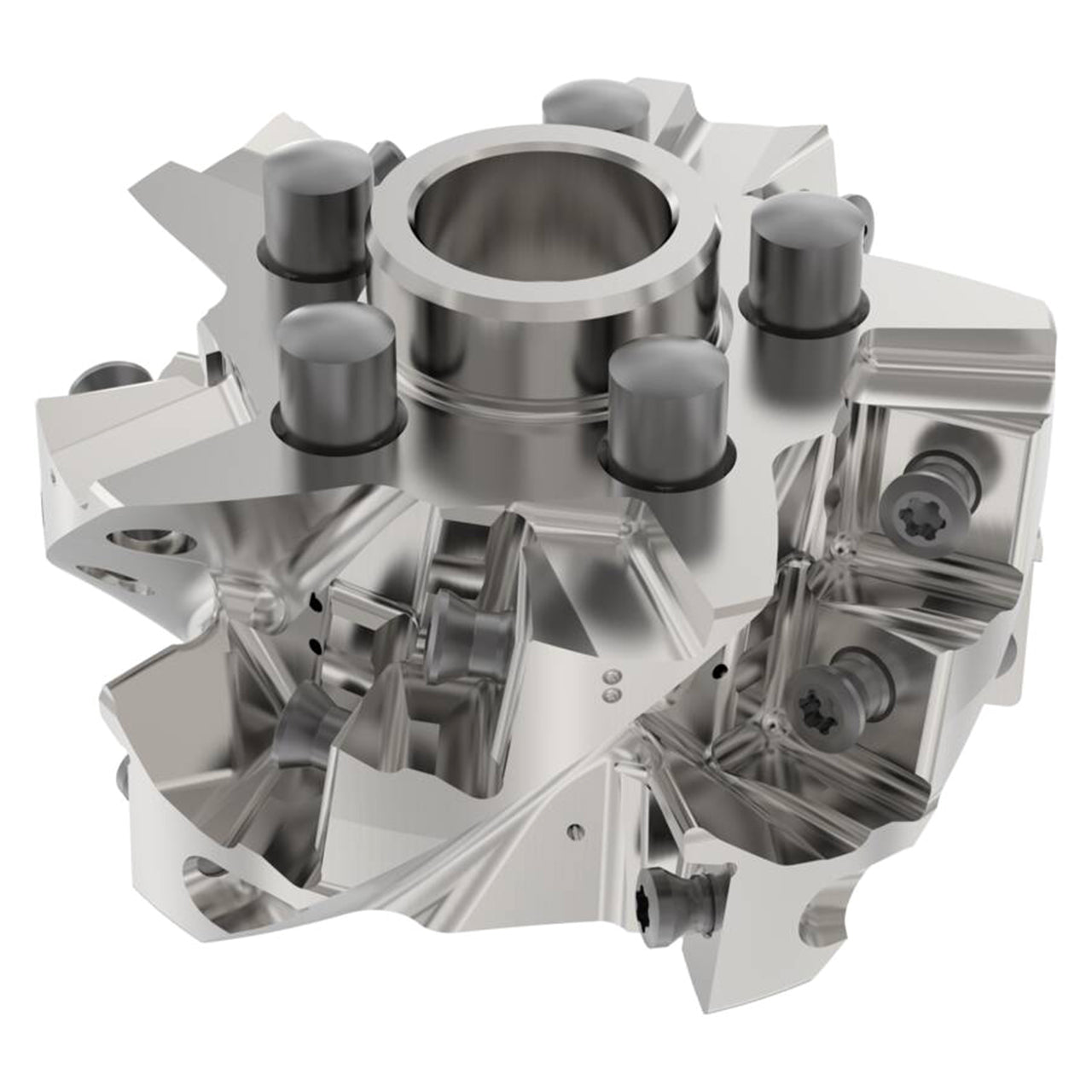

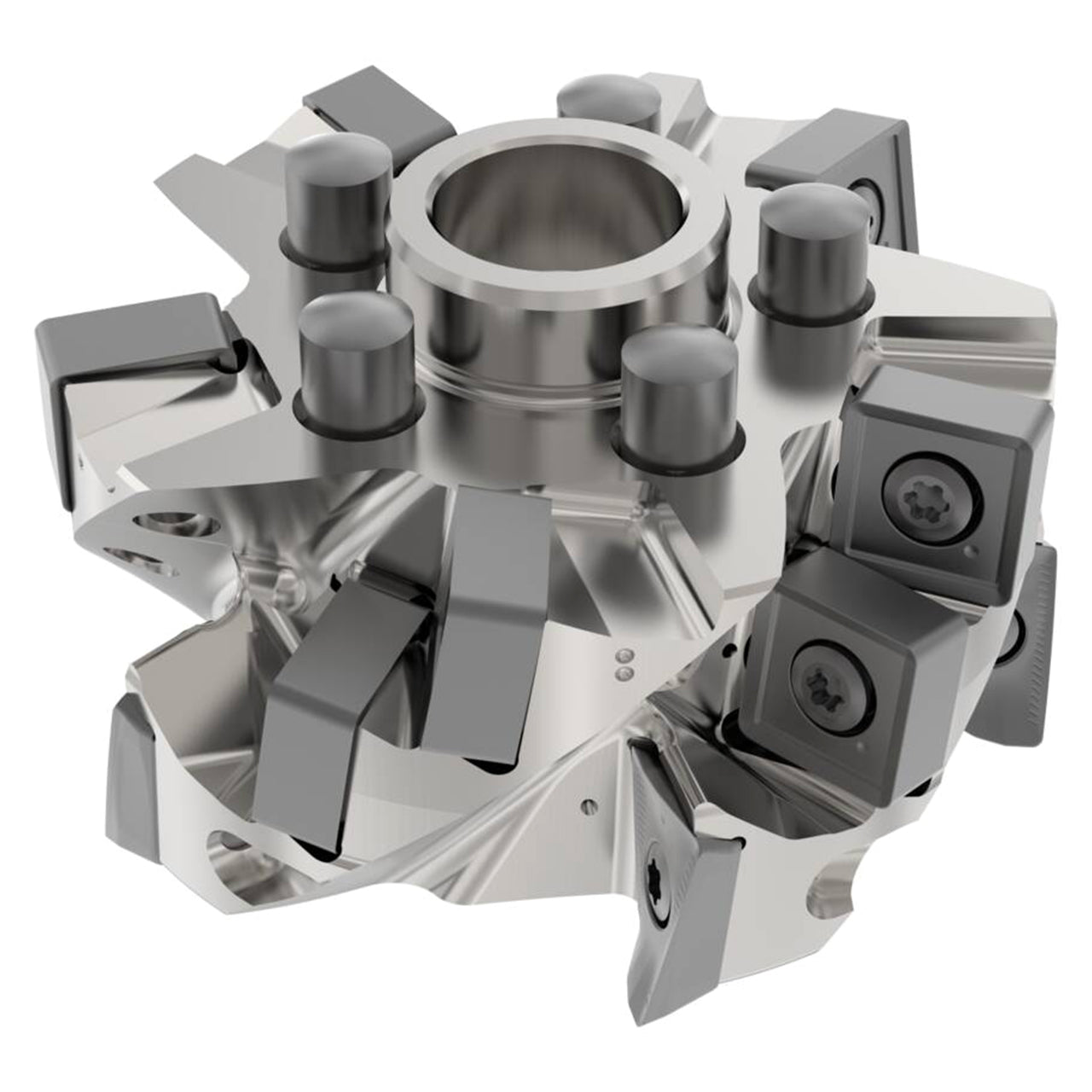

| Product Type | Indexable Square-Shoulder Face Mill |
