Product Specifications
| Manufacturer Part Number | 10127496 |
| Cutting Diameter (mm) | 50.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Shank Diameter (mm) | 32.00mm |
| Protruding Length (mm) | 90.00mm |
| Shank Length (mm) | 60.00mm |
| Overall Length (mm) | 150.00mm |
| Maximum Depth of Cut (mm) | 68.00mm |
| Cutting Pitch Density | Coarse |
| Flute Helix Hand | Left Hand |
| Rake Radial Angle (Degree) | -9.25 Degree |
| Rake Radial Angle (Degree) | -9.25 Degree |
| Rake Orthogonal Angle (Degree) | -9.25 Degree |
| Axial Rake Angle (Degree) | -8.5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 4 |
| Maximum Rotational Speed (rpm) | 8300 rpm |
| Insert Shape Code | A / S |
| Shank Type | SecoWeldon |

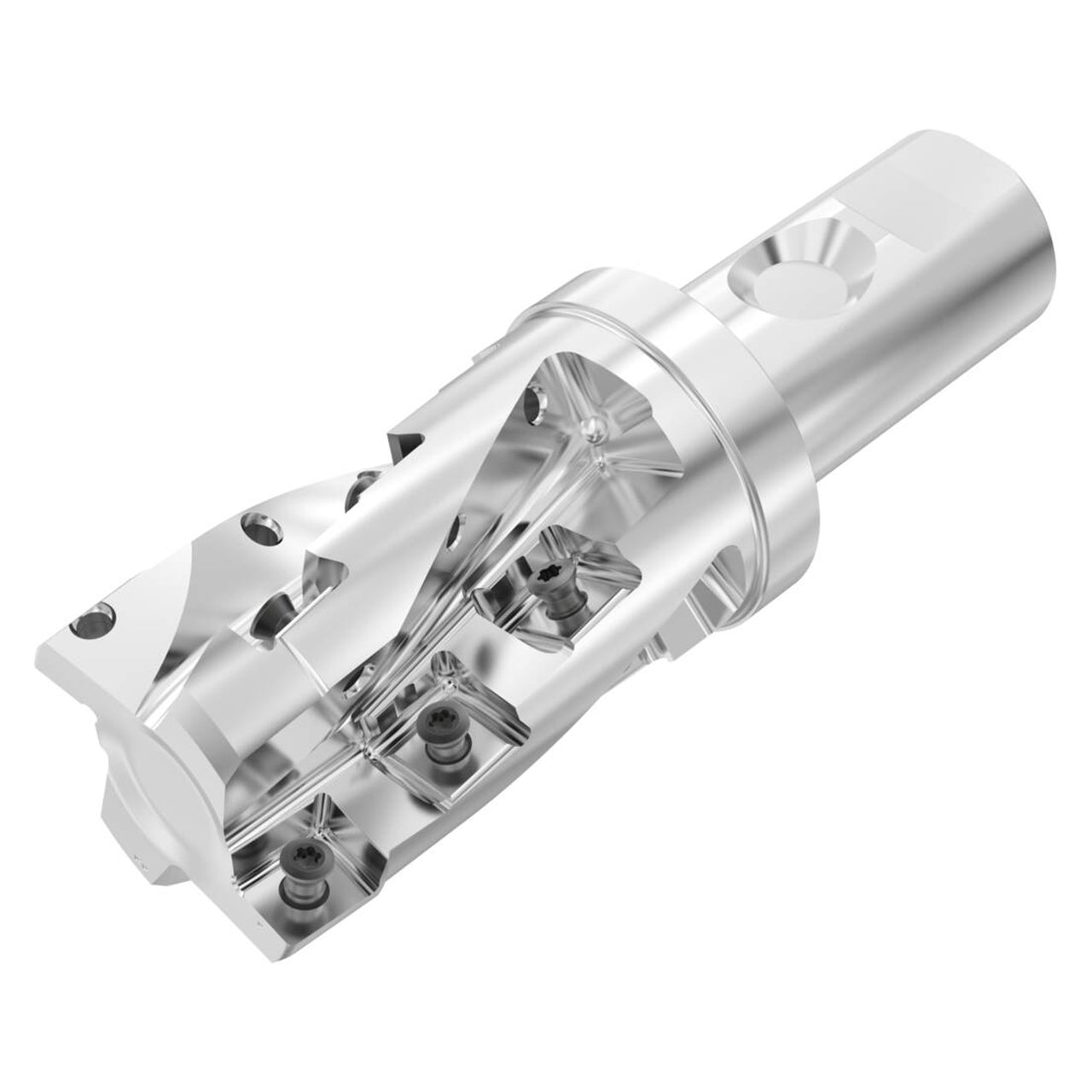

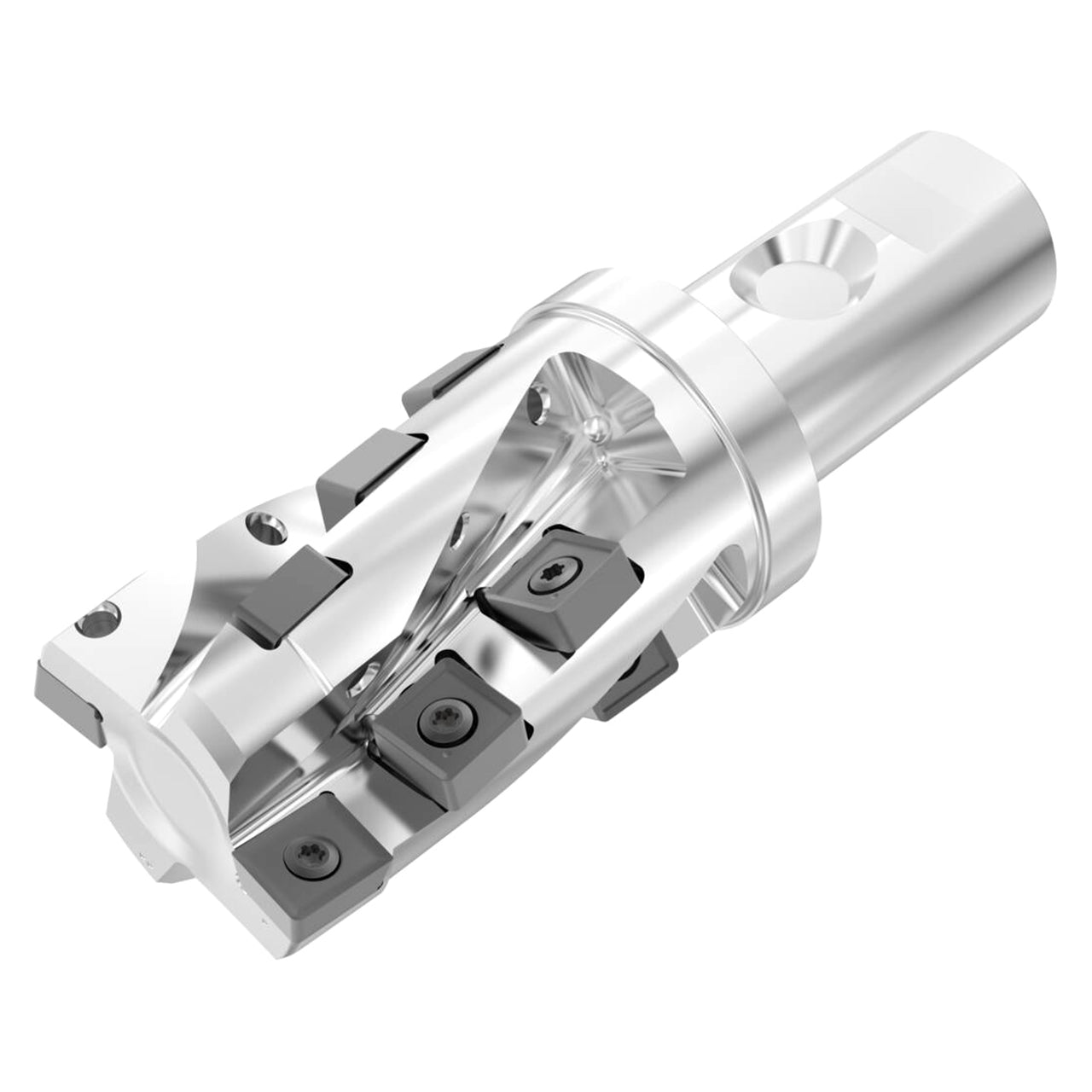

| Product Type | Indexable Square-Shoulder End Mill |
