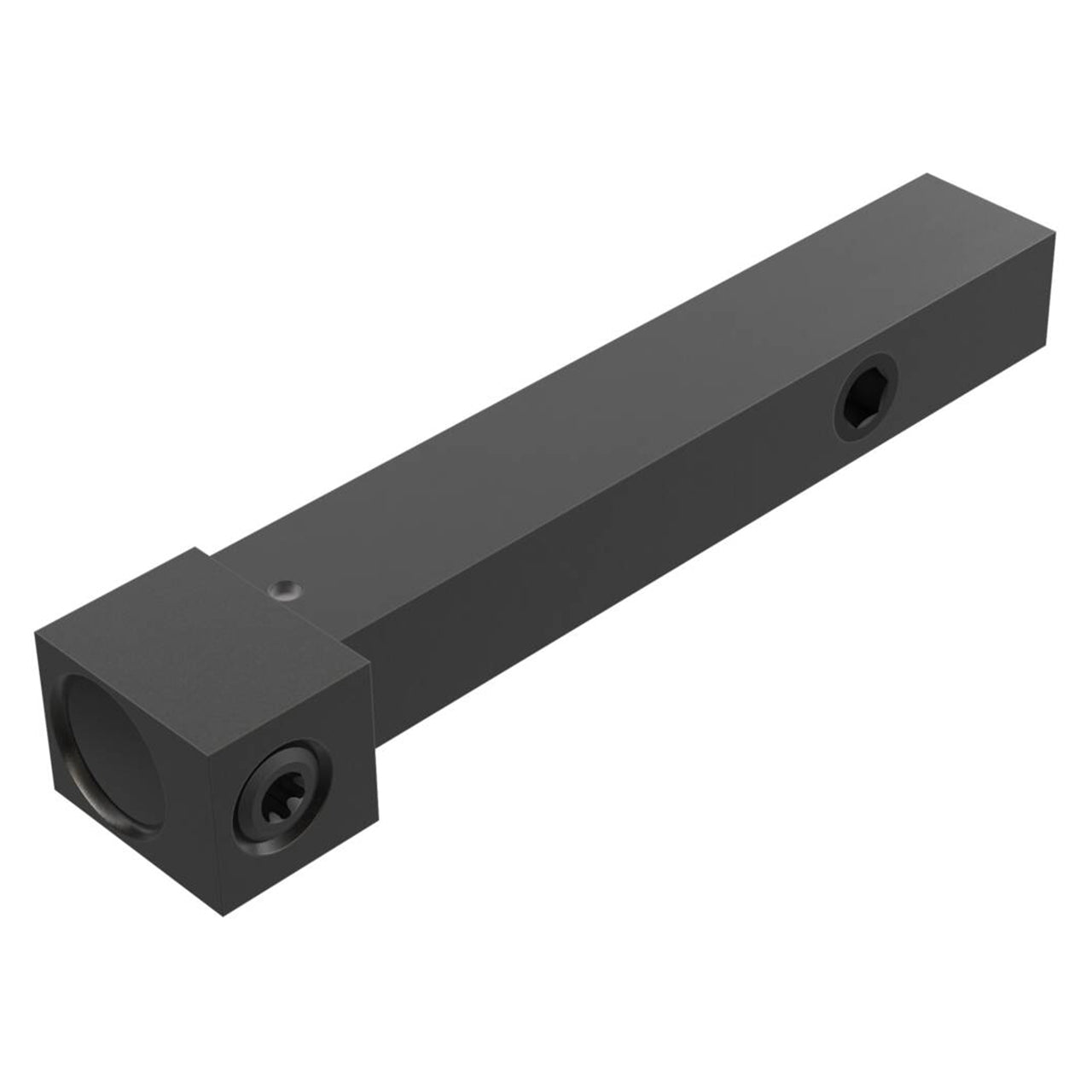

Product Specifications
| Manufacturer Part Number | 10125245 |
| Shank Width (Decimal Inch) | 0.472" |
| Shank Width (mm) | 12.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.375" |
| Height of Tool Holder Shank (mm) | 9.53mm |
| Functional Height (Decimal Inch) | 0.187" |
| Functional Height (mm) | 4.76mm |
| Functional Length (Decimal Inch) | 3.150" |
| Functional Length (mm) | 80.00mm |
| Shank Length (Decimal Inch) | 2.677" |
| Shank Length (mm) | 68.00mm |
| Overall Width (Decimal Inch) | 0.630" |
| Overall Width (mm) | 16.00mm |
| Functional Width (Decimal Inch) | 0.236" |
| Functional Width (mm) | 6.00mm |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Square shank |
| Product Type | Indexable Turning Toolholder |
