Product Specifications
| Manufacturer Part Number | 10097649 |

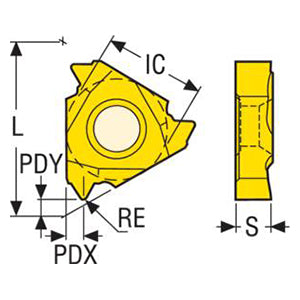

| Inscribed Circle Diameter (Decimal Inch) | 0.250" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Corner Radius (Decimal Inch) | 0.005" |
| Corner Radius (mm) | 0.12mm |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.433" |
| Theoretical Cutting Edge Length (mm) | 11.00mm |
| Insert Thickness (Decimal Inch) | 0.118" |
| Insert Thickness (mm) | 3.00mm |
| Minimum Thread Pitch (Decimal Inch) | 0.0591 |
| Minimum Thread Pitch (mm) | 1.5 |
| Maximum Thread Pitch (Decimal Inch) | 0.0591 |
| Maximum Thread Pitch (mm) | 1.5 |
| Insert Hand | Right Hand |
| Profile Included Angle (Degree) | 60 Degree |

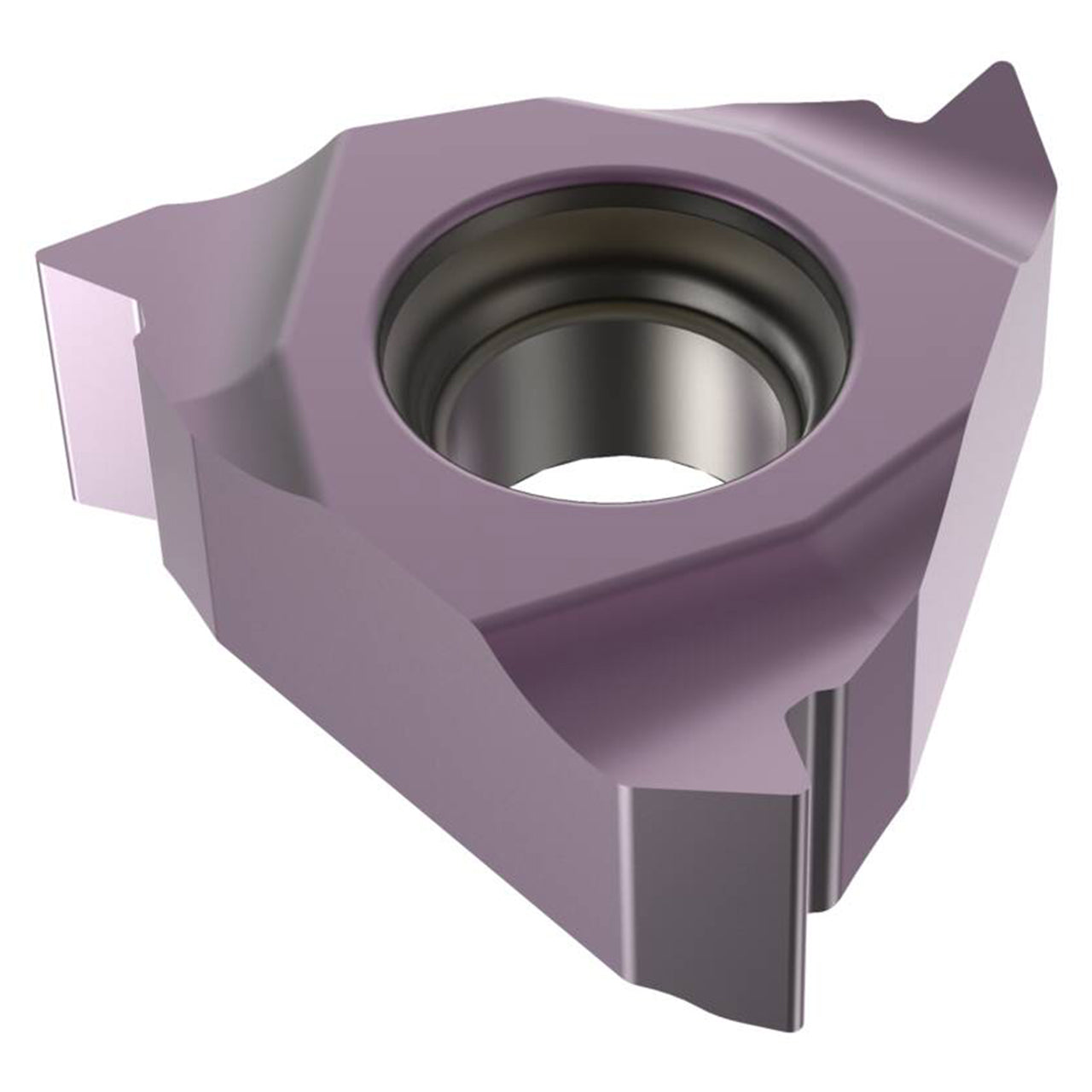

| Product Type | Laydown Threading Insert |
