Product Specifications
| Manufacturer Part Number | 10097560 |
| Cutting Diameter (mm) | 23.70mm |
| Contact Surface Diameter Machine Side (mm) | 36.50mm |
| Maximum Cutting Diameter (mm) | 40.00mm |
| Thread Diameter Size | M20 |
| Maximum Helical Interpolation Hole Diameter (mm) | 78.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 63.70mm |
| Functional Length (mm) | 40.00mm |
| Overall Length (mm) | 67.00mm |
| Maximum Depth of Cut (mm) | 1.10mm |
| Connection Mounting Torque (Nm) | 120.0 Nm |
| Programming Radius (mm) | 2.79mm |
| Uncut Thickness (mm) | 0.9 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | -5 Degree |
| Axial Rake Angle (Degree) | 4 Degree |
| Tool Cutting Edge Angle (Degree) | 10 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 10 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 10 Degree |
| Maximum Ramping Angle (Degree) | 2.7 Degree |
| Maximum Rotational Speed (rpm) | 19300 rpm |
| Insert Shape Code | S |
| Shank Type | Combimaster |

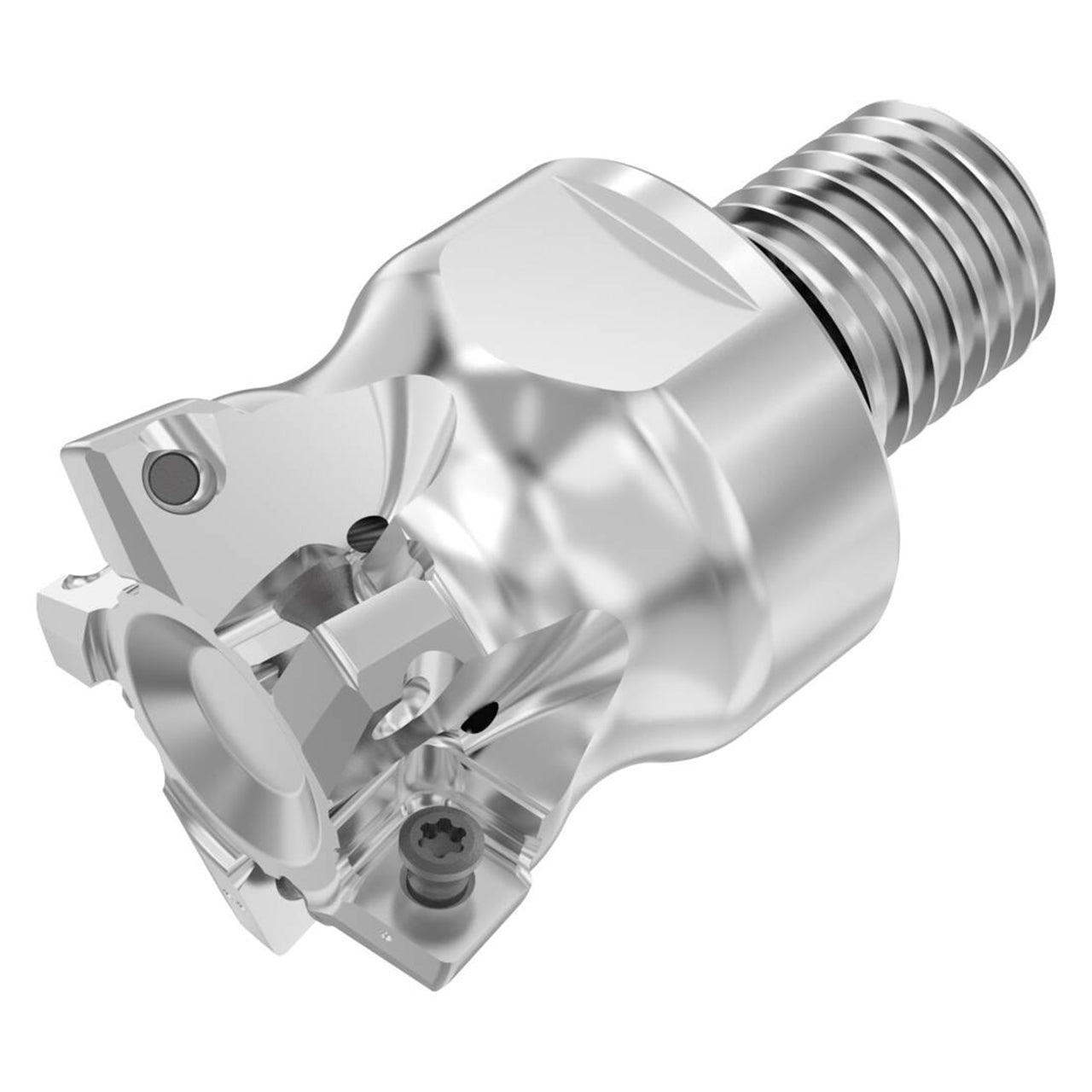

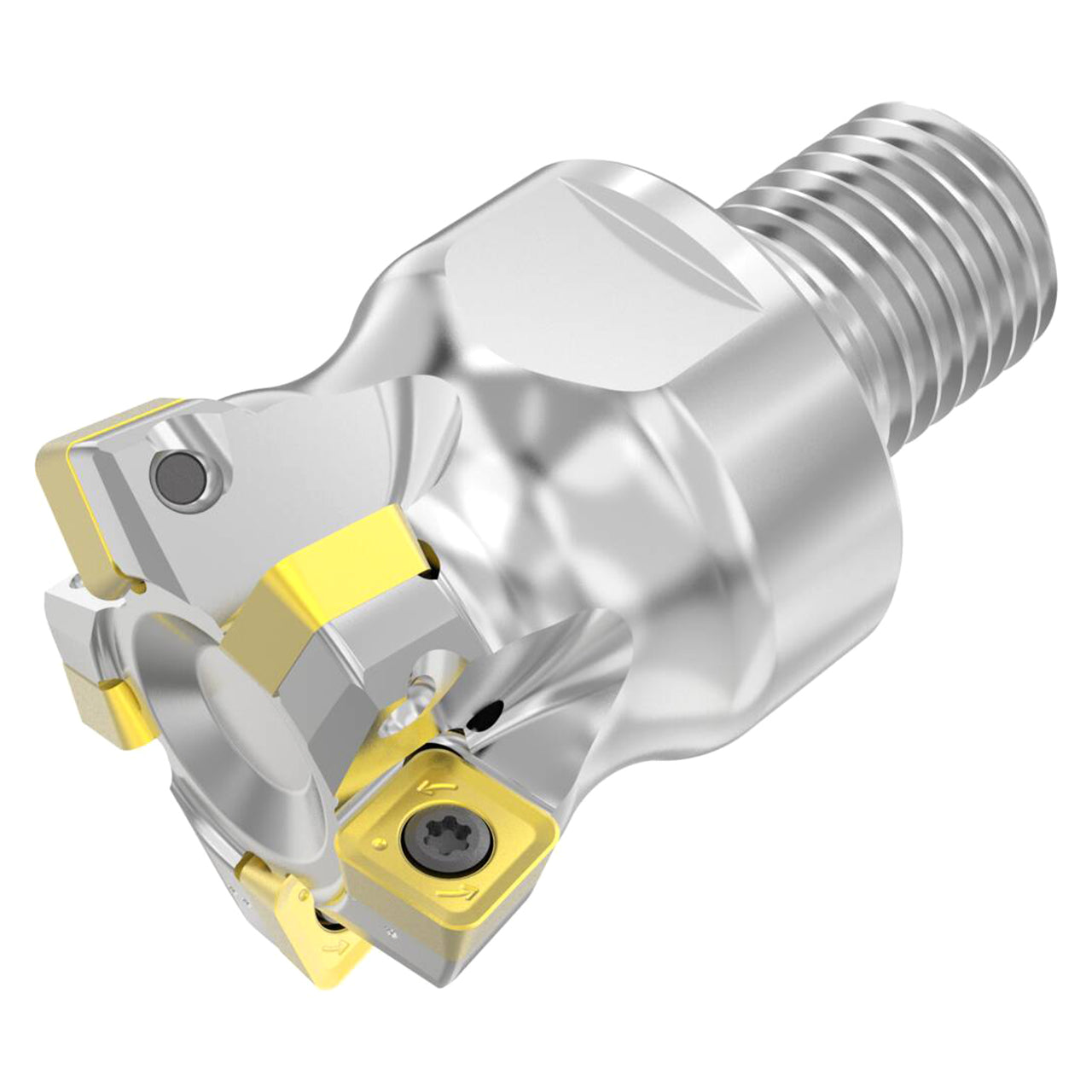

| Product Type | Indexable High-Feed End Mill |
