Seco Tools

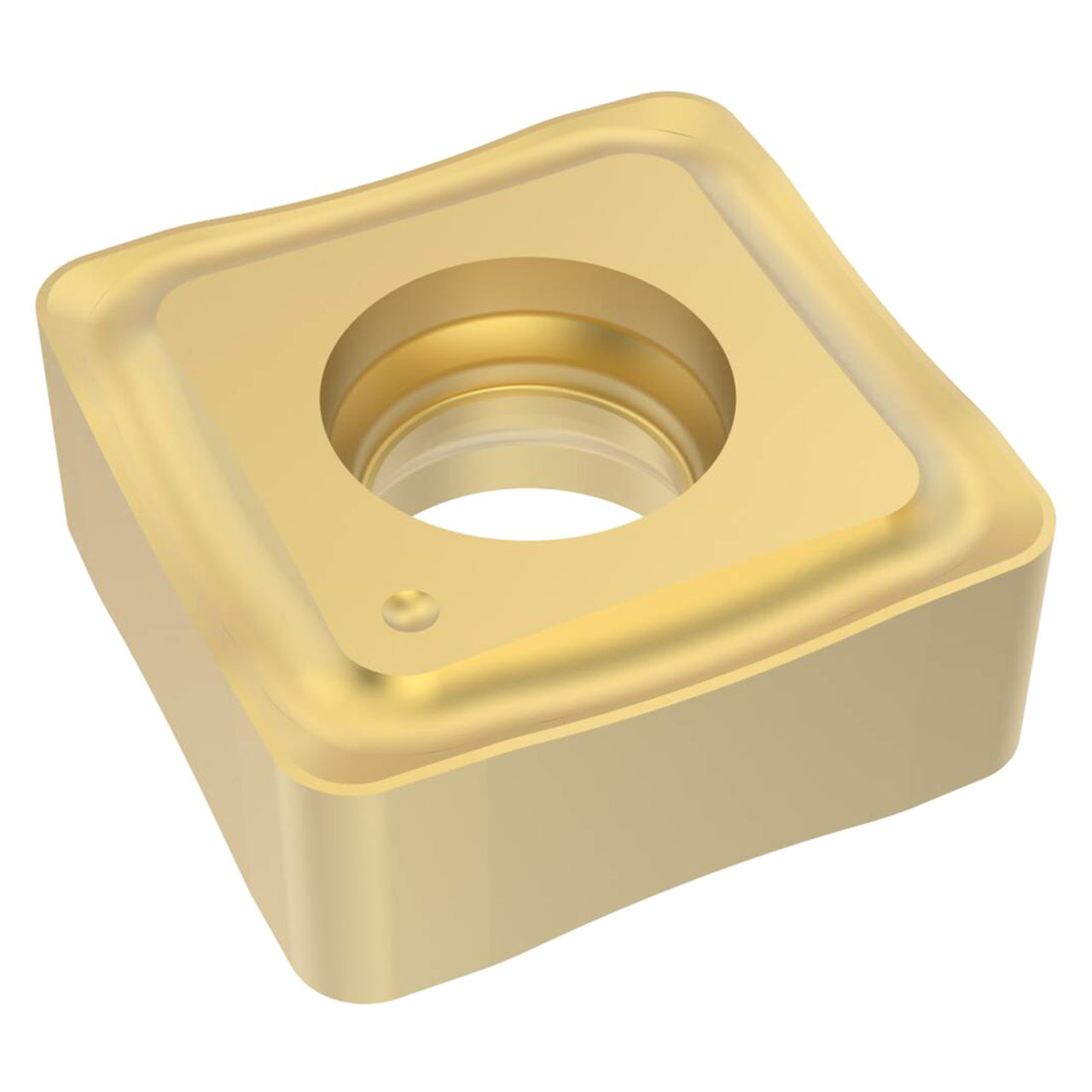

Seco Tools 10092580 | SNMU120412TN-M16 0.472" Inscribed Circle Diameter x 0.047" Radius x 0.188" Insert Thickness 8 Cutting Edge PVD Coated Carbide MP3000 Grade SNMU Milling Insert

Seco Tools 10092580 | SNMU120412TN-M16 0.472" Inscribed Circle Diameter x 0.047" Radius x 0.188" Insert Thickness 8 Cutting Edge PVD Coated Carbide MP3000 Grade SNMU Milling Insert

SKU: 23288973

$21.30 USD
$21.30 USD $21.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Product Specifications
Manufacturer Part Number 10092580
Wiper Edge Length (Decimal Inch) 0.055"
Cutting edge count 8
Cutting Geometry Type Technical M16
Insert size and shape SNMU1204
Grade Type Carbide PVD
Inscribed Circle Diameter (Decimal Inch) 0.472"
Insert Hand Neutral
Cutting Edge Effective Length (Decimal Inch) 0.362"
Corner Radius (Decimal Inch) 0.047"
Insert Thickness (Decimal Inch) 0.188"
Product Series SNMU
Product Type Milling Insert
