Product Specifications
| Manufacturer Part Number | 10092389 |
| Depth of Cut Maximum in Feed Direction Side (mm) | 12.00mm |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | No |

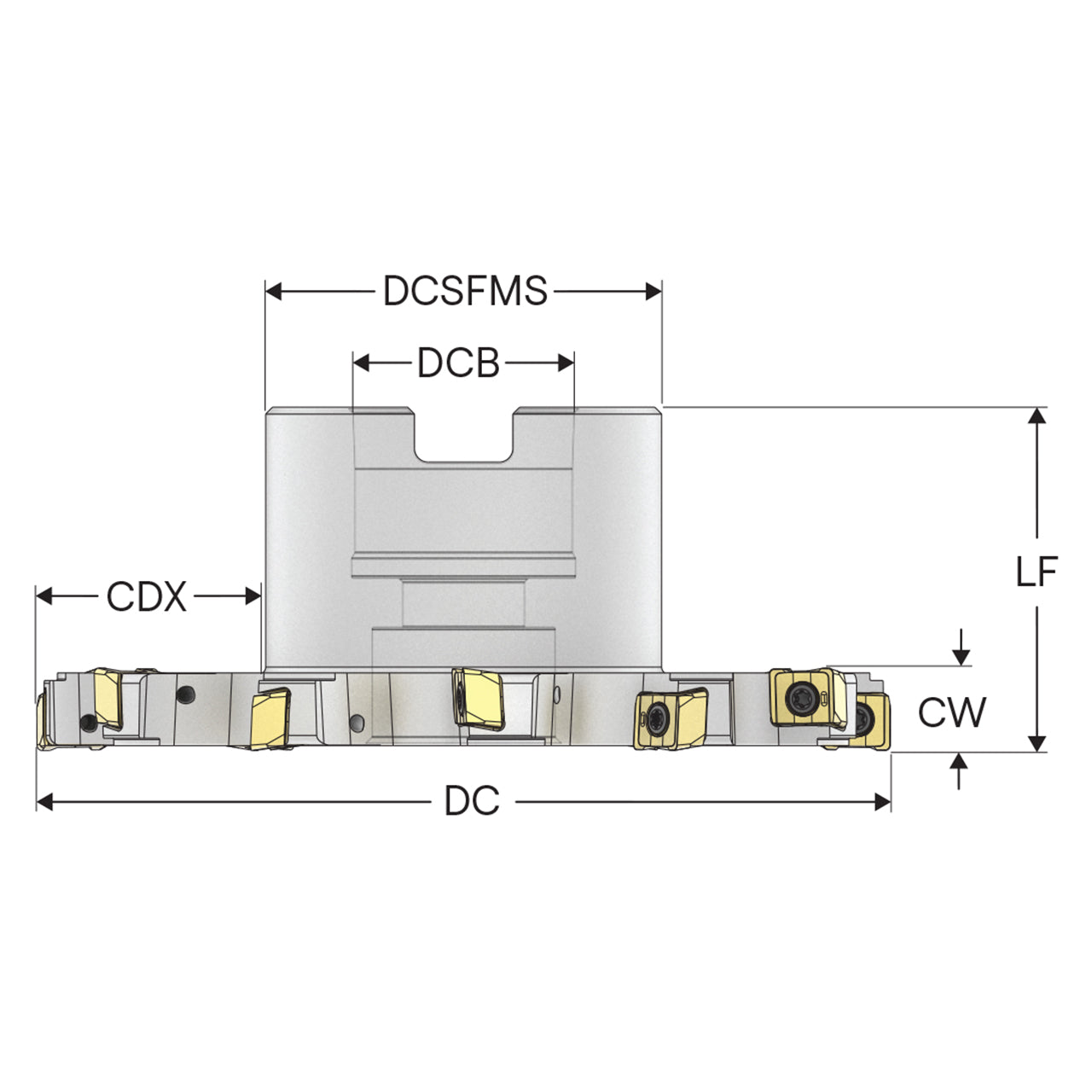

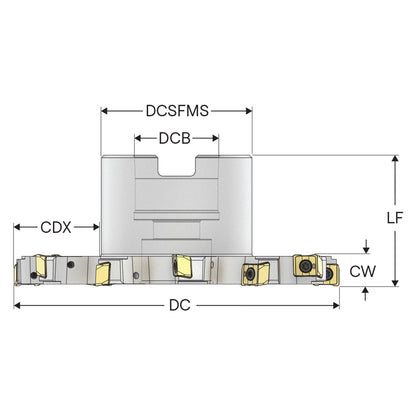

| Cutting Diameter (mm) | 100.00mm |
| Connection Diameter Machine Side (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 48.00mm |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle in Feed Direction Side (Degree) | 90.00 Degree |
| Functional Length (mm) | 50.00mm |
| Rotational Speed Maximum | 8700 rpm |
| Shank Type | Arbor |
| Peripheral Effective Cutting Edge Count | 5 |
| Product Series | R335.18 |

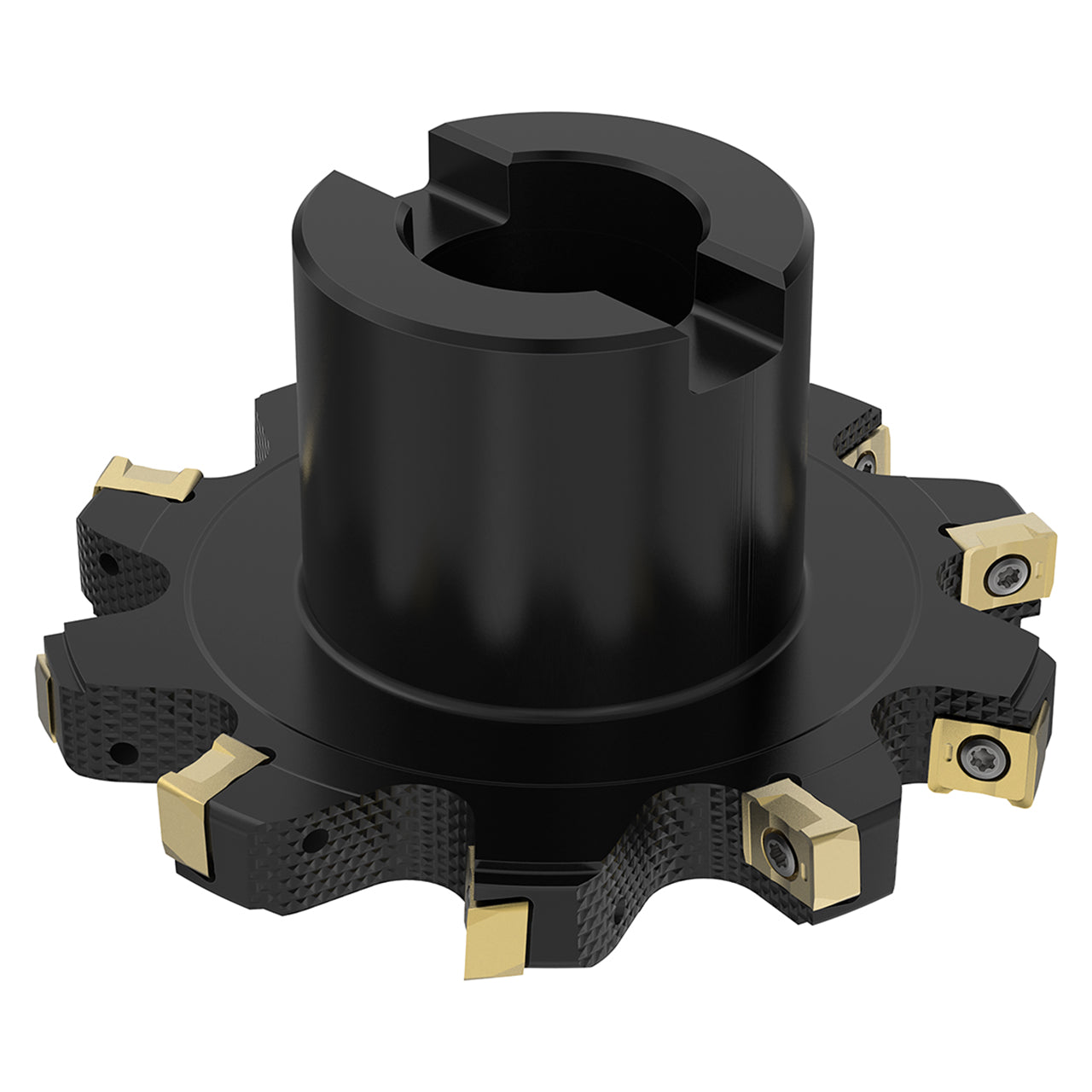

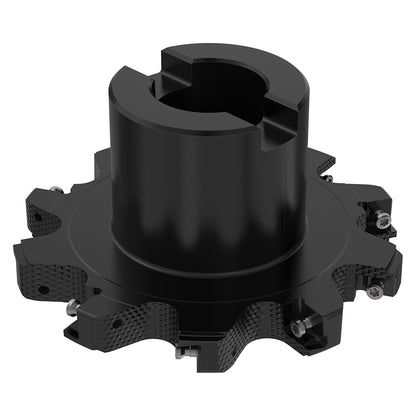

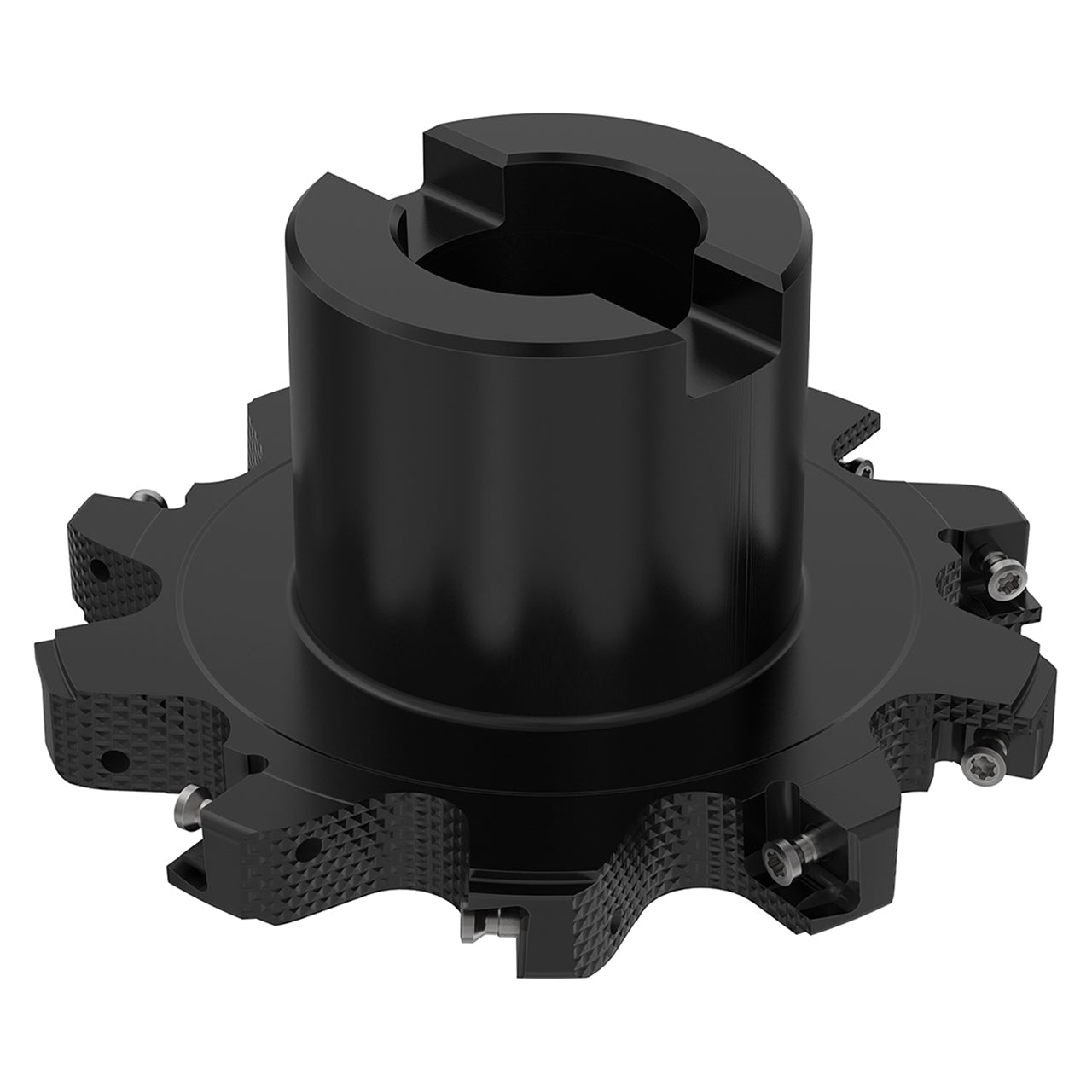

| Product Type | Indexable Slotting Cutter |
